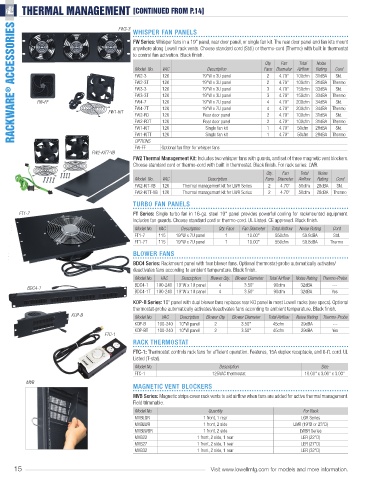

Page 18 - RACKS-PWR-ACC-2021

THERMAL MANAGEMENT [CONTINUED FROM P.14]

RACKWARE ® ACCESSORIES
FW3-3
WHISPER FAN PANELS
FW Series: Whisper fans in a 19" panel, rear door panel, or single fan kit. The rear door panel and fan kits mount
anywhere along Lowell rack vents. Choose standard cord (Std.) or thermo-cord (Thermo) with built in thermostat
to control fan activation. Black finish.
Qty. Fan Total Noise
Model No. VAC Description Fans Diameter Airflow Rating Cord
FW2-3 120 19"W x 3U panel 2 4.70" 100cfm 31dBA Std.
FW2-3T 120 19"W x 3U panel 2 4.70" 100cfm 31dBA Thermo
FW3-3 120 19"W x 3U panel 3 4.70" 150cfm 33dBA Std.
FW3-3T 120 19"W x 3U panel 3 4.70" 150cfm 33dBA Thermo
FW-FF FW4-7 120 19"W x 7U panel 4 4.70" 200cfm 34dBA Std.
FW4-7T 120 19"W x 7U panel 4 4.70" 200cfm 34dBA Thermo
FW1-KIT
FW2-RD 120 Rear door panel 2 4.70" 100cfm 31dBA Std.
FW2-RDT 120 Rear door panel 2 4.70" 100cfm 31dBA Thermo
FW1-KIT 120 Single fan kit 1 4.70" 50cfm 28dBA Std.
FW1-KITT 120 Single fan kit 1 4.70" 50cfm 28dBA Thermo
OPTIONS
FW-FF Optional fan filter for whisper fans
FW2-KITT-VB
FW2 Thermal Management Kit: Includes two whisper fans with guards, and set of three magnetic vent blockers.
Choose standard cord or thermo-cord with built in thermostat. Black finish. For rack series: LWR.
Qty. Fan Total Noise
Model No. VAC Description Fans Diameter Airflow Rating Cord
FW2-KIT-VB 120 Thermal management kit for LWR Series 2 4.70" 50cfm 28dBA Std.
FW2-KITT-VB 120 Thermal management kit for LWR Series 2 4.70" 50cfm 28dBA Thermo
TURBO FAN PANELS
FT1-7 FT Series: Single turbo fan in 16-ga. steel 19" panel provides powerful cooling for rackmounted equipment.
Includes fan guards. Choose standard cord or thermo-cord. UL Listed. CE approved. Black finish.
Model No. VAC Description Qty. Fans Fan Diameter Total Airflow Noise Rating Cord
FT1-7 115 19"W x 7U panel 1 10.00" 550cfm 50.8dBA Std.
FT1-7T 115 19"W x 7U panel 1 10.00" 550cfm 50.8dBA Thermo

BLOWER FANS
BDC4 Series: Rackmount panel with four blower fans. Optional thermostat-probe automatically activates/
deactivates fans according to ambient temperature. Black finish.
Model No. VAC Description Blower Qty. Blower Diameter Total Airflow Noise Rating Thermo-Probe
BDC4-1 100-240 19"W x 1U panel 4 3.50" 90cfm 32dBA ---
BDC4-1
BDC4-1T 100-240 19"W x 1U panel 4 3.50" 90cfm 32dBA Yes
KOP-B Series: 10" panel with dual blower fans replaces rear KO panel in most Lowell racks (see specs). Optional
thermostat-probe automatically activates/deactivates fans according to ambient temperature. Black finish.
KOP-B Model No. VAC Description Blower Qty. Blower Diameter Total Airflow Noise Rating Thermo-Probe
KOP-B 100-240 10"W panel 2 3.50" 45cfm 29dBA ---
KOP-BT 100-240 10"W panel 2 3.50" 45cfm 29dBA Yes
FTC-1
RACK THERMOSTAT
FTC-1: Thermostat controls rack fans for efficient operation. Features, 15A duplex receptacle, and 6-ft. cord. UL
Listed (T-stat).
Model No. Description Size
FTC-1 125VAC thermostat 10.00" x 3.00" x 3.00"
MVB
MAGNETIC VENT BLOCKERS
MVB Series: Magnetic strips cover rack vents to aid airflow when fans are added for active thermal management.
Field trimmable.
Model No. Quantity For Rack
MVBLGR 1 front, 1 rear LGR Series
MVBLWR 1 front, 2 side LWR (19"D or 23"D)
MVBLWBR 1 front, 2 side LWBR Series
MVB22 1 front, 2 side, 1 rear LER (22"D)
MVB27 1 front, 2 side, 1 rear LER (27"D)
MVB32 1 front, 2 side, 1 rear LER (32"D)

15 Visit www.lowellmfg.com for models and more information.
