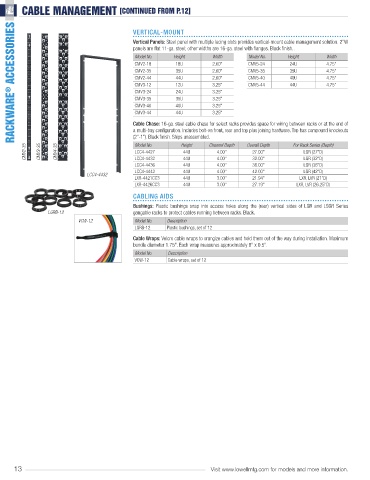

Page 16 - RACKS-PWR-ACC-2021

CABLE MANAGEMENT [CONTINUED FROM P.12]

RACKWARE ® ACCESSORIES
VERTICAL-MOUNT
Vertical Panels: Steel panel with multiple lacing slots provides vertical-mount cable management solution. 2"W
panels are flat 11-ga. steel; other widths are 16-ga. steel with flanges. Black finish..
Model No. Height Width Model No. Height Width
CMV2-18 18U 2.00" CMV5-24 24U 4.75"
CMV2-35 35U 2.00" CMV5-35 35U 4.75"
CMV2-44 44U 2.00" CMV5-40 40U 4.75"
CMV3-12 12U 3.25" CMV5-44 44U 4.75"
CMV3-24 24U 3.25"
CMV3-35 35U 3.25"
CMV3-40 40U 3.25"
CMV3-44 44U 3.25"
Cable Chase: 16-ga. steel cable chase for select racks provides space for wiring between racks or at the end of
a multi-bay configuration. Includes bolt-on front, rear and top plus joining hardware. Top has compound knockouts
(2"-1"). Black finish. Ships unassembled.
CMV2-35 CMV3-35 CMV4-35 Model No. Height Channel Depth Overall Depth For Rack Series (Depth)
27.00"
LGR (27"D)
4.00"
LCC4-4427
44U
32.00"
LCC4-4432
4.00"
LGR (32"D)
44U
LCC4-4436 44U 4.00" 36.00" LGR (36"D)
LCC4-4442 44U 4.00" 42.00" LGR (42"D)
LCC4-4432
LXR-4421CC3 44U 3.00" 21.94" LXR, LVR (21"D)
LXR-4426CC3 44U 3.00" 27.19" LXR, LVR (26.25"D)
CABLING AIDS
Bushings: Plastic bushings snap into access holes along the (rear) vertical sides of LGR and LSGR Series
LGRB-12 gangable racks to protect cables running between racks. Black.
VCW-12 Model No. Description
LGRB-12 Plastic bushings, set of 12
Cable Wraps: Velcro cable wraps to orangize cables and hold them out of the way during installation. Maximum
bundle diameter 1.75". Each wrap measures approximately 8" x 0.5".
Model No. Description
VCW-12 Cable wraps, set of 12

13 Visit www.lowellmfg.com for models and more information.
