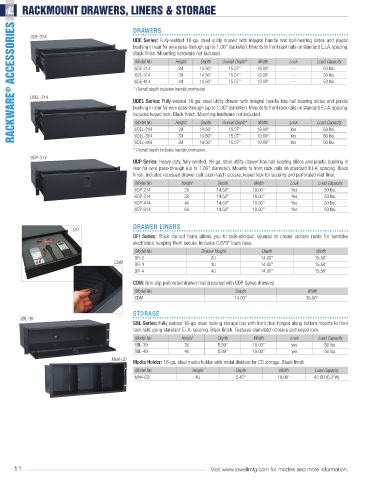

Page 14 - RACKS-PWR-ACC-2021

RACKMOUNT DRAWERS, LINERS & STORAGE

RACKWARE ® ACCESSORIES
DRAWERS
UDE-314
UDE Series: Fully-welded 16-ga. steel utility drawer with integral handle has ball-bearing slides and plastic
bushing in rear for wire pass-through (up to 1.06" diameter). Mounts to front rack rails on standard E.I.A. spacing.
Black finish. Mounting hardware not included.
Model No. Height Depth Overall Depth* Width Lock Load Capacity
UDE-214 2U 14.50" 15.07" 19.00" --- 50 lbs.
UDE-314 3U 14.50" 15.07" 19.00" --- 50 lbs.
UDE-414 4U 14.50" 15.07" 19.00" --- 50 lbs.
* Overall depth includes handle protrusion.
UDEL-314
UDEL Series: Fully-welded 16-ga. steel utility drawer with integral handle has ball-bearing slides and plastic
bushing in rear for wire pass-through (up to 1.06" diameter). Mounts to front rack rails on standard E.I.A. spacing.
Includes keyed lock. Black finish. Mounting hardware not included.
Model No. Height Depth Overall Depth* Width Lock Load Capacity
UDEL-214 2U 14.50" 15.07" 19.00" Yes 50 lbs.
UDEL-314 3U 14.50" 15.07" 19.00" Yes 50 lbs.
UDEL-414 4U 14.50" 15.07" 19.00" Yes 50 lbs.
* Overall depth includes handle protrusion.
UDP-314
UDP Series: Heavy duty, fully-welded, 16-ga. steel utility drawer has ball-bearing slides and plastic bushing in
rear for wire pass-through (up to 1.06" diameter). Mounts to front rack rails on standard E.I.A. spacing. Black
finish. Includes recessed drawer pull, slam-latch closure, keyed lock for security and perforated mat liner.
Model No. Height Depth Width Lock Load Capacity
UDP-214 2U 14.50" 19.00" Yes 50 lbs.
UDP-314 3U 14.50" 19.00" Yes 50 lbs.
UDP-414 4U 14.50" 19.00" Yes 50 lbs.
UDP-614 6U 14.50" 19.00" Yes 50 lbs.

DRAWER LINERS
DFI
DFI Series: Thick die-cut foam allows you to pick-and-pull squares to create custom nests for sensitive
electronics, keeping them secure. Includes 0.875" foam base.
Model No. Drawer Height Depth Width
DFI-2 2U 14.00" 15.50"
CDM DFI-3 3U 14.00" 15.50"
DFI-4 4U 14.00" 15.50"

CDM: Non-slip perforated drawer mat (included with UDP Series drawers).
Model No. Depth Width
CDM 14.00" 15.50"

STORAGE
SBL-39
SBL Series: Fully welded 16-ga. steel locking storage box with front door hinged along bottom mounts to front
rack rails using standard E.I.A. spacing. Black finish. Features slam-latch closure and keyed lock.
Model No. Height Depth Width Lock Load Capacity
SBL-39 3U 8.99" 19.00" yes 50 lbs.
SBL-49 4U 8.99" 19.00" yes 50 lbs.
MH4-CD
Media Holder: 16-ga. steel media holder with metal dividers for CD storage. Black finish.
Model No. Height Depth Width Load Capacity
MH4-CD 4U 5.40" 19.00" 42 CD (0.2"W)

11 Visit www.lowellmfg.com for models and more information.
