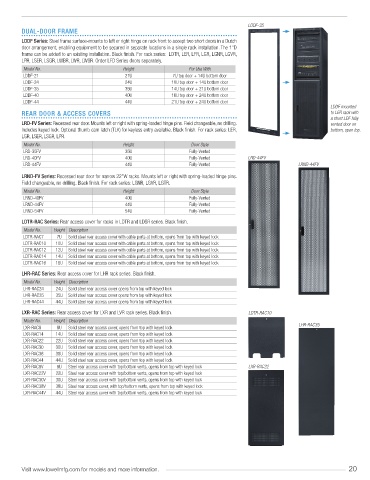

Page 23 - RACKS-PWR-ACC-2021

LDDF-35
DUAL-DOOR FRAME
LDDF Series: Steel frame surface-mounts to left or right hinge on rack front to accept two short doors in a Dutch
door arrangement, enabling equipment to be secured in separate locations in a single rack installation. The 1"D
frame can be added to an existing installation. Black finish. For rack series: LDTR, LER, LFR, LGR, LGNR, LGVR,
LPR, LSER, LSGR, LWBR, LWR, LWSR. Order LFD Series doors separately.
Model No. Height For Use With
LDDF-21 21U 7U top door + 14U bottom door
LDDF-24 24U 10U top door + 14U bottom door
LDDF-35 35U 14U top door + 21U bottom door
LDDF-40 40U 16U top door + 24U bottom door
LDDF-44 44U 21U top door + 24U bottom door
LDDF mounted
REAR DOOR & ACCESS COVERS to LER rack with
a short LDF fully
LRD-FV Series: Recessed rear door. Mounts left or right with spring-loaded hinge pins. Field changeable, no drilling. vented door on
Includes keyed lock. Optional thumb cam latch (TLK) for keyless entry available. Black finish. For rack series: LER, bottom, open top.
LGR, LSER, LSGR, LPR.
Model No. Height Door Style
LRD-35FV 35U Fully-Vented
LRD-40FV 40U Fully-Vented LRD-44FV
LRD-44FV 44U Fully-Vented LRND-44FV

LRND-FV Series: Recessed rear door for narrow 22"W racks. Mounts left or right with spring-loaded hinge pins.
Field changeable, no drilling. Black finish. For rack series: LGNR, LGVR, LGTR.
Model No. Height Door Style
LRND-40FV 40U Fully-Vented
LRND-44FV 44U Fully-Vented
LRND-54FV 54U Fully-Vented
LDTR-RAC Series: Rear access cover for racks in LDTR and LDSR series. Black finish.
Model No. Height Description
LDTR-RAC7 7U Solid steel rear access cover with cable ports at bottom, opens from top with keyed lock
LDTR-RAC10 10U Solid steel rear access cover with cable ports at bottom, opens from top with keyed lock
LDTR-RAC12 12U Solid steel rear access cover with cable ports at bottom, opens from top with keyed lock
LDTR-RAC14 14U Solid steel rear access cover with cable ports at bottom, opens from top with keyed lock
LDTR-RAC16 16U Solid steel rear access cover with cable ports at bottom, opens from top with keyed lock
LHR-RAC Series: Rear access cover for LHR rack series. Black finish.
Model No. Height Description
LHR-RAC24 24U Solid steel rear access cover opens from top with keyed lock
LHR-RAC35 35U Solid steel rear access cover opens from top with keyed lock
LHR-RAC44 44U Solid steel rear access cover opens from top with keyed lock
LXR-RAC Series: Rear access cover for LXR and LVR rack series. Black finish. LDTR-RAC10
Model No. Height Description
LXR-RAC8 8U Solid steel rear access cover, opens from top with keyed lock LHR-RAC35
LXR-RAC14 14U Solid steel rear access cover, opens from top with keyed lock
LXR-RAC22 22U Solid steel rear access cover, opens from top with keyed lock
LXR-RAC30 30U Solid steel rear access cover, opens from top with keyed lock
LXR-RAC38 38U Solid steel rear access cover, opens from top with keyed lock
LXR-RAC44 44U Solid steel rear access cover, opens from top with keyed lock
LXR-RAC8V 8U Steel rear access cover with top/bottom vents, opens from top with keyed lock LXR-RAC22
LXR-RAC22V 22U Steel rear access cover with top/bottom vents, opens from top with keyed lock
LXR-RAC30V 30U Steel rear access cover with top/bottom vents, opens from top with keyed lock
LXR-RAC38V 38U Steel rear access cover, with top/bottom vents, opens from top with keyed lock
LXR-RAC44V 44U Steel rear access cover with top/bottom vents, opens from top with keyed lock

Visit www.lowellmfg.com for models and more information. 20
