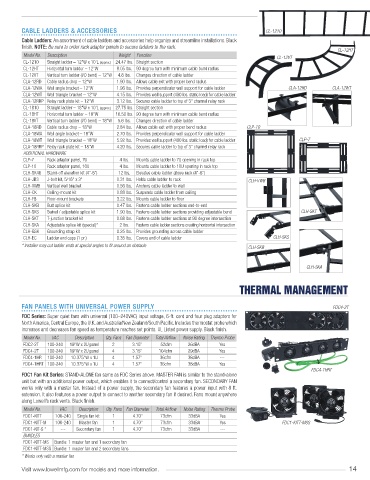

Page 17 - RACKS-PWR-ACC-2021

CABLE LADDERS & ACCESSORIES CL-1210
Cable Ladders: An assortment of cable ladders and accessories help organize and streamline installations. Black
finish. NOTE: Be sure to order rack adaptor panels to secure ladders to the rack.
CL-12HT
Model No. Description Weight Function CL-12VT
CL-1210 Straight ladder – 12"W x 10'L (approx.) 24.47 lbs. Straight section
CL-12HT Horizontal turn ladder – 12"W 8.05 lbs. 90 degree turn with minimum cable bend radius
CL-12VT Vertical turn ladder (I/O bend) – 12"W 4.8 lbs. Changes direction of cable ladder
CLA-12RD Cable radius drop – 12"W 1.90 lbs. Allows cable exit with proper bend radius
CLA-12WA Wall angle bracket – 12"W 1.96 lbs. Provides perpendicular wall support for cable ladder CLA-12RD CLA-12WT
CLA-12WT Wall triangle bracket – 12"W 4.15 lbs. Provides wall support (400 lbs. static load) for cable ladder
CLA-12RRP Relay rack plate kit – 12"W 3.12 lbs. Secures cable ladder to top of 3" channel relay rack
CL-1810 Straight ladder – 18"W x 10'L (approx.) 27.75 lbs. Straight section
CL-18HT Horizontal turn ladder – 18"W 10.50 lbs. 90 degree turn with minimum cable bend radius
CL-18VT Vertical turn ladder (I/O bend) – 18"W 5.6 lbs. Changes direction of cable ladder
CLA-18RD Cable radius drop – 18"W 2.84 lbs. Allows cable exit with proper bend radius CLP-10
CLA-18WA Wall angle bracket – 18"W 2.70 lbs. Provides perpendicular wall support for cable ladder
CLA-18WT Wall triangle bracket – 18"W 5.92 lbs. Provides wall support (400 lbs. static load) for cable ladder CLP-7
CLA-18RRP Relay rack plate kit – 18"W 4.20 lbs. Secures cable ladder to top of 3" channel relay rack
ADDITIONAL HARDWARE
CLP-7 Rack adaptor panel, 7U 4 lbs. Mounts cable ladder to 7U opening in rack top
CLP-10 Rack adaptor panel, 10U 4 lbs. Mounts cable ladder to 10U opening in rack top
CLH-SK46 Stand-off elevation kit (4"-6") 12 lbs. Elevates cable ladder above rack (4"-6")
CLH-JB3 J-bolt kit, 5/16" x 3" 0.31 lbs. Holds cable ladder to rack CLH-VWB
CLH-VWB Vertical wall bracket 0.56 lbs. Anchors cable ladder to wall
CLH-CK Ceiling-mount kit 0.88 lbs. Suspends cable ladder from ceiling
CLH-FB Floor-mount brackets 3.22 lbs. Mounts cable ladder to floor
CLH-SKB Butt splice kit 0.47 lbs. Fastens cable ladder sections end-to-end
CLH-SKS Swivel / adjustable splice kit 1.90 lbs. Fastens cable ladder sections providing adjustable bend CLH-SKT
CLH-SKT T-junction bracket kit 0.68 lbs. Fastens cable ladder sections at 90 degree intersection
CLH-SKA Adjustable splice kit (special)* 2 lbs. Fastens cable ladder sections creating horizontal intersection
CLH-GSK Grounding strap kit 0.25 lbs. Provides grounding across cable ladder
CLH-EC Ladder end caps (1 pr.) 0.35 lbs. Covers end of cable ladder CLH-SKS
* Installer may cut ladder ends at special angles to fit around an obstacle CLH-SKB

CLH-SKA

THERMAL MANAGEMENT

FAN PANELS WITH UNIVERSAL POWER SUPPLY FDC4-2T
FDC Series: Super quiet fans with universal (100–240VAC) input voltage, 6-ft. cord and four plug adaptors for
North America, Central Europe, the U.K. and Australia/New Zealand/South Pacific. Includes thermostat probe which
increases and decreases fan speed as temperature reaches set points. UL Listed power supply. Black finish.
Model No. VAC Description Qty. Fans Fan Diameter Total Airflow Noise Rating Thermo Probe
FDC2-2T 100-240 19"W x 2U panel 2 3.15" 52cfm 26dBA Yes
FDC4-2T 100-240 19"W x 2U panel 4 3.15" 104cfm 29dBA Yes
FDC4-1HR 100-240 10.375"W x 1U 4 1.57" 36cfm 38dBA ---
FDC4-1HRT 100-240 10.375"W x 1U 4 1.57" 36cfm 38dBA Yes
FDC4-1HRT
FDC1 Fan Kit Series: STAND-ALONE fan same as FDC Series above. MASTER FAN is similar to the stand-alone
unit but with an additional power output, which enables it to connect/control a secondary fan. SECONDARY FAN
works only with a master fan. Instead of a power supply, the secondary fan features a power input with 8 ft.
extension. It also features a power output to connect to another secondary fan if desired. Fans mount anywhere
along Lowell’s rack vents. Black finish.
Model No. VAC Description Qty. Fans Fan Diameter Total Airflow Noise Rating Thermo Probe
FDC1-KITT 100-240 Single fan kit 1 4.70" 73cfm 33dBA Yes
FDC1-KITT-M 100-240 Master fan 1 4.70" 73cfm 33dBA Yes FDC1-KITT-MSS
FDC1-KIT-S * --- Secondary fan 1 4.70" 73cfm 33dBA ---
BUNDLES
FDC1-KITT-MS Bundle: 1 master fan and 1 secondary fan
FDC1-KITT-MSS Bundle: 1 master fan and 2 secondary fans
* Works only with a master fan
