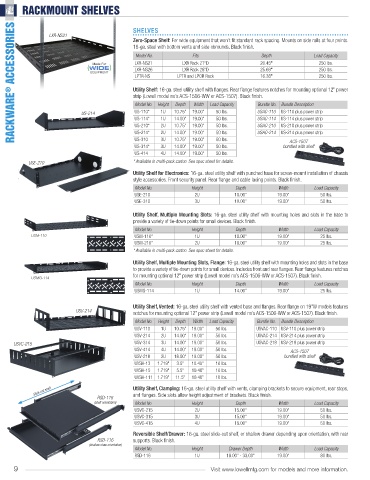

Page 12 - RACKS-PWR-ACC-2021

RACKMOUNT SHELVES

RACKWARE ® ACCESSORIES
SHELVES
LXR-NS21
Zero-Space Shelf: For wide equipment that won’t fit standard rack spacing. Mounts on side rails at four points.
16-ga. steel with bottom vents and side obrounds. Black finish.
Model No. Fits Depth Load Capacity
LXR-NS21 LXR Rack 21"D 20.45" 250 lbs.
LXR-NS26 LXR Rack 26"D 25.69" 250 lbs.
LPTR-NS LPTR and LPOR Rack 16.38" 250 lbs.

Utility Shelf: 16-ga. steel utility shelf with flanges. Rear flange features notches for mounting optional 12" power
strip (Lowell model no’s ACS-1506-WW or ACS-1507). Black finish.
Model No. Height Depth Width Load Capacity Bundle No. Bundle Description
US-214 US-110* 1U 10.75" 19.00" 50 lbs. USAC-110 US-110 plus power strip
US-114* 1U 14.00" 19.00" 50 lbs. USAC-114 US-114 plus power strip
US-210* 2U 10.75" 19.00" 50 lbs. USAC-210 US-210 plus power strip
US-214* 2U 14.00" 19.00" 50 lbs. USAC-214 US-214 plus power strip
US-310 3U 10.75" 19.00" 50 lbs. ACS-1507
US-314* 3U 14.00" 19.00" 50 lbs. bundled with shelf
US-414 4U 14.00" 19.00" 50 lbs.
USE-210 * Available in multi-pack carton. See spec sheet for details.
Utility Shelf for Electronics: 16-ga. steel utility shelf with punched base for screw-mount installation of chassis
style accessories. Front security panel. Rear flange and cable lacing points. Black finish.
Model No. Height Depth Width Load Capacity
USE-210 2U 10.00" 19.00" 50 lbs.
USE-310 3U 10.00" 19.00" 50 lbs.

Utility Shelf, Multiple Mounting Slots: 16-ga. steel utility shelf with mounting holes and slots in the base to
provide a variety of tie-down points for small devices. Black finish.
Model No. Height Depth Width Load Capacity
USM-110 USM-110* 1U 10.00" 19.00" 25 lbs.
USM-210* 2U 10.00" 19.00" 25 lbs.
* Available in multi-pack carton. See spec sheet for details.

Utility Shelf, Multiple Mounting Slots, Flange: 16-ga. steel utility shelf with mounting holes and slots in the base
to provide a variety of tie-down points for small devices. Includes front and rear flanges. Rear flange features notches
for mounting optional 12" power strip (Lowell model no’s ACS-1506-WW or ACS-1507). Black finish.
USMG-114
Model No. Height Depth Width Load Capacity
USMG-114 1U 14.00" 19.00" 25 lbs.

Utility Shelf, Vented: 16-ga. steel utility shelf with vented base and flanges. Rear flange on 19"W models features
USV-214 notches for mounting optional 12" power strip (Lowell model no’s ACS-1506-WW or ACS-1507). Black finish.
Model No. Height Depth Width Load Capacity Bundle No. Bundle Description
USV-110 1U 10.75" 19.00" 50 lbs. USVAC-110 USV-110 plus power strip
USV-214 2U 14.00" 19.00" 50 lbs. USVAC-214 USV-214 plus power strip
USVC-215 USV-314 3U 14.00" 19.00" 50 lbs. USVAC-218 USV-218 plus power strip
USV-414 4U 14.00" 19.00" 50 lbs. ACS-1507
USV-218 2U 18.00" 19.00" 50 lbs. bundled with shelf
UVSH-13 1.719" 3.5" 10.40" 10 lbs.
UVSH-15 1.719" 5.5" 10.40” 10 lbs.
UVSH-111 1.719" 11.5" 10.40” 10 lbs.

Slide-out shelf Utility Shelf, Clamping: 16-ga. steel utility shelf with vents, clamping brackets to secure equipment, rear stops,
and flanges. Side slots allow height adjustment of brackets. Black finish.
RSD-116
(shelf orientation) Model No. Height Depth Width Load Capacity
USVC-215 2U 15.00" 19.00" 50 lbs.
USVC-315 3U 15.00" 19.00" 50 lbs.
USVC-415 4U 15.00" 19.00" 50 lbs.
Reversible Shelf/Drawer: 16-ga. steel slide-out shelf, or shallow drawer depending upon orientation, with rear
RSD-116 supports. Black finish.
(shallow draw orientation)
Model No. Height Drawer Depth Width Load Capacity
RSD-116 1U 18.00" - 33.00" 19.00" 80 lbs.

9 Visit www.lowellmfg.com for models and more information.
