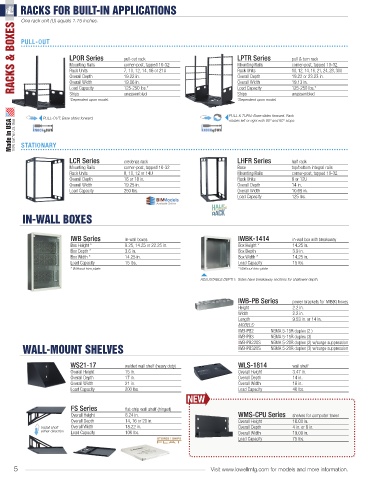

RACKS FOR BUILT-IN APPLICATIONS

One rack unit (U) equals 1.75 inches.
RACKS & BOXES PULL-OUT LPOR Series pull-out rack LPTR Series pull & turn rack

Mounting Rails
corner-post, tapped 10-32
Mounting Rails
corner-post, tapped 10-32
Rack Units
10, 12, 14, 16, 21, 24, 28, 30U
7, 10, 12, 14, 16 or 21U
Rack Units
Overall Depth
Overall Depth
19.22 in.
19.22 or 23.23 in.
Overall Width
125-250 lbs.*
Load Capacity
Load Capacity
125-250 lbs.*
Ships
unassembled
Ships
unassembled
*Dependent upon model. 19.06 in. Overall Width 19.13 in.
*Dependent upon model.
PULL & TURN: Base slides forward. Rack
PULL-OUT: Base slides forward. rotates left or right with 90° and 60° stops.
Made in USA 100% Certified U.S. Steel STATIONARY
LCR Series credenza rack LHFR Series half rack
Mounting Rails corner-post, tapped 10-32 Base top/bottom integral rails
Rack Units 8, 10, 12 or 14U Mounting Rails corner-post, tapped 10-32
Overall Depth 16 or 18 in. Rack Units 8 or 12U
Overall Width 19.25 in. Overall Depth 14 in.
Load Capacity 250 lbs. Overall Width 10.69 in.
Load Capacity 125 lbs.
IN-WALL BOXES

IWB Series in-wall boxes IWBK-1414 in-wall box with breakaway
Box Height * 9.25, 14.25 or 22.25 in. Box Height * 14.25 in.
Box Depth * 3.6 in. Box Depth 3.9 in.
Box Width * 14.25 in. Box Width * 14.25 in.
Load Capacity 15 lbs. Load Capacity 15 lbs.
* Without trim plate * Without trim plate
ADJUSTABLE DEPTH: Sides have breakaway sections for shallower depth.

IWB-PB Series power brackets for IWB(K) boxes
Height 2.2 in.
Width 2.2 in.
Length 9.53 in. or 14 in.
MODELS:
IWB-PB2 NEMA 5-15R duplex (2 )
IWB-PB3 NEMA 5-15R duplex (3)
IWB-PB220S NEMA 5-20R duplex (2) w/surge suppression
WALL-MOUNT SHELVES IWB-PB320S NEMA 5-20R duplex (3) w/surge suppression

WS21-17 welded wall shelf (heavy duty) WLS-1814 wall shelf
Overall Height 15 in. Overall Height 3.47 in.
Overall Depth 17 in. Overall Depth 14 in.
Overall Width 21 in. Overall Width 18 in.
Load Capacity 200 lbs. Load Capacity 40 lbs.

FS Series flat-ship wall shelf (hinged)
Overall Height 8.24 in. WMS-CPU Series shelves for computer tower
Overall Depth 14, 16 or 20 in. Overall Height 10.00 in.
Install shelf Overall Width 18.22 in. Overall Depth 4 in. or 8 in.
either direction Load Capacity 100 lbs. Overall Width 19.09 in.
Load Capacity 75 lbs.

5 Visit www.lowellmfg.com for models and more information.
