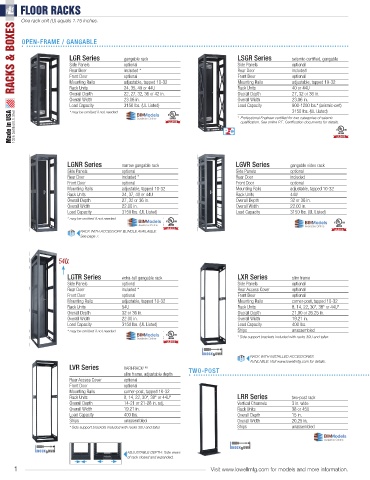

Page 4 - RACKS-PWR-ACC-2021

FLOOR RACKS

One rack unit (U) equals 1.75 inches.
RACKS & BOXES OPEN-FRAME / GANGABLE gangable rack LSGR Series seismic-certified, gangable

LGR Series
optional
optional
Side Panels
Side Panels
Rear Door
Rear Door
included
included *
Front Door
Front Door
optional
optional
Mounting Rails
40 or 44U
Rack Units
Rack Units
24, 35, 40 or 44U
22, 27, 32, 36 or 42 in.
27, 32 or 36 in.
Overall Depth
Overall Depth
Overall Width adjustable, tapped 10-32 Mounting Rails adjustable, tapped 10-32
23.06 in.
Overall Width
23.06 in.
Load Capacity 3150 lbs. (UL Listed) Load Capacity 900-1200 lbs.* (seismic-cert)

3150 lbs. (UL Listed)
* may be omitted if not needed
Made in USA 100% Certified U.S. Steel * Professional Engineer certified for two categories of seismic
qualification. See online P.E. Certification documents for details.
LGNR Series narrow gangable rack LGVR Series gangable video rack
Side Panels optional Side Panels optional
Rear Door included * Rear Door included
Front Door optional Front Door optional
Mounting Rails adjustable, tapped 10-32 Mounting Rails adjustable, tapped 10-32
Rack Units 24, 37, 40 or 44U Rack Units 44U
Overall Depth 27, 32 or 36 in. Overall Depth 32 or 36 in.
Overall Width 22.00 in. Overall Width 22.00 in.
Load Capacity 3150 lbs. (UL Listed) Load Capacity 3150 lbs. (UL Listed)
* may be omitted if not needed
RACK WITH ACCESSORY BUNDLE AVAILABLE:
See page 7.
54U
LGTR Series extra-tall gangable rack LXR Series slim frame
Side Panels optional Side Panels optional
Rear Door included * Rear Access Cover optional
Front Door optional Front Door optional
Mounting Rails adjustable, tapped 10-32 Mounting Rails corner-post, tapped 10-32
Rack Units 54U Rack Units 8, 14, 22, 30*, 38* or 44U*
Overall Depth 32 or 36 in. Overall Depth 21.00 or 26.25 in.
Overall Width 22.00 in. Overall Width 19.21 in.
Load Capacity 3150 lbs. (UL Listed) Load Capacity 400 lbs.
* may be omitted if not needed Ships unassembled
* Side support brackets included with racks 30U and taller.

RACK WITH INSTALLED ACCESSORIES
AVAILABLE: Visit www.lowellmfg.com for details.
LVR Series VARI-RACK™
slim frame, adjustable depth TWO-POST
Rear Access Cover optional
Front Door optional
Mounting Rails corner-post, tapped 10-32
Rack Units 8, 14, 22, 30*, 38* or 44U* LRR Series two-post rack
Overall Depth 14-21 or 21-28 in. adj. Vertical Channels 3 in. wide
Overall Width 19.21 in. Rack Units 38 or 45U
Load Capacity 400 lbs. Overall Depth 15 in.
Ships unassembled Overall Width 20.25 in.
* Side support brackets included with racks 30U and taller. Ships unassembled

ADJUSTABLE DEPTH: Side views
of rack closed and expanded.
1 Visit www.lowellmfg.com for models and more information.
