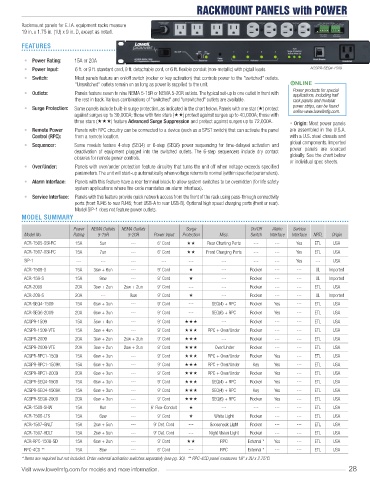

Page 31 - RACKS-PWR-ACC-2021

RACKMOUNT PANELS with POWER

Rackmount panels for E.I.A. equipment racks measure (rear)
19 in. x 1.75 in. (1U) x 9 in. D, except as noted.

FEATURES

• Power Rating: 15A or 20A
• Power Input: 6 ft. or 9 ft. standard cord, 9 ft. detachable cord, or 6 ft. flexible conduit (non-metallic) with pigtail leads. ACSPR-SEQ4-1509
• Switch: Most panels feature an on/off switch (rocker or key activation) that controls power to the "switched" outlets.
"Unswitched" outlets remain on as long as power is supplied to the unit. NLINE
• Outlets: Panels feature seven to nine NEMA 5-15R or NEMA 5-20R outlets. The typical set-up is one outlet in front with Power products for special
applications, including half
the rest in back. Various combinations of "switched" and "unswitched" outlets are available. rack panels and modular
• Surge Protection: Some panels include built-in surge protection, as indicated in the chart below. Panels with one star () protect power strips, can be found
against surges up to 30,000A; those with two stars () protect against surges up to 40,000A; those with online www.lowellmfg.com.
three stars () feature Advanced Surge Suppression and protect against surges up to 72,000A. • Origin: Most power panels
• Remote Power Panels with RPC circuitry can be connected to a device (such as a SPST switch) that can activate the panel are assembled in the U.S.A.
Control (RPC): from a remote location. with a U.S. steel chassis and
• Sequencer: Some models feature 4-step (SEQ4) or 6-step (SEQ6) power sequencing for time-delayed activation and global components. Imported
deactivation of equipment plugged into the switched outlets. The 6-step sequencers include dry contact power panels are sourced
closures for remote power controls. globally. See the chart below
or individual spec sheets.
• Over/Under: Panels with over/under protection feature circuitry that turns the unit off when voltage exceeds specified
parameters. The unit will start-up automatically when voltage returns to normal (within specified parameters).
• Alarm Interface: Panels with this feature have a rear terminal block to allow system switches to be overridden (for life safety
system applications where fire code mandates an alarm interface).
• Service Interface: Panels with this feature provide quick network access from the front of the rack using pass-through connectivity
ports (front RJ45 to rear RJ45; front USB-A to rear USB-B). Optional high speed charging ports (front or rear).
Model SIP-1 does not feature power outlets.
MODEL SUMMARY

Power NEMA Outlets NEMA Outlets Surge On/Off Alarm Service
Model No. Rating 5-15R 5-20R Power Input Protection Misc. Switch Interface Interface NRTL Origin
ACR-1505-SSI-RC 15A 5un --- 6' Cord  Rear Charting Ports --- --- Yes ETL USA
ACR-1507-SSI-FC 15A 7un --- 6' Cord  Front Charging Ports --- --- Yes ETL USA
SIP-1 --- --- --- --- --- --- --- --- Yes --- USA
ACR-1509-S 15A 3sw + 6un --- 9' Cord  --- Rocker --- --- UL Imported
ACR-159-S 15A 9sw --- 9' Cord  --- Rocker --- --- UL Imported
ACR-2009 20A 3sw + 2un 2sw + 2un 9' Cord --- --- Rocker --- --- ETL USA
ACR-209-S 20A --- 9sw 9' Cord  --- Rocker --- --- UL Imported
ACR-SEQ4-1509 15A 6sw + 3un --- 9' Cord --- SEQ(4) + RPC Rocker Yes --- ETL USA
ACR-SEQ6-2009 20A 6sw + 3un --- 9' Cord --- SEQ(6) + RPC Rocker Yes --- ETL USA
ACSPR-1509 15A 5sw + 4un --- 9' Cord  --- Rocker --- --- ETL USA
ACSPR-1509-VTE 15A 5sw + 4un --- 9' Cord  RPC + Over/Under Rocker --- --- ETL USA
ACSPR-2009 20A 3sw + 2un 2sw + 2un 9' Cord  --- Rocker --- --- ETL USA
ACSPR-2009-VTE 20A 3sw + 2un 2sw + 2un 9' Cord  Over/Under Rocker --- --- ETL USA
ACSPR-RPC1-1509 15A 6sw + 3un --- 9' Cord  RPC + Over/Under Rocker Yes --- ETL USA
ACSPR-RPC1-1509K 15A 6sw + 3un --- 9' Cord  RPC + Over/Under Key Yes --- ETL USA
ACSPR-RPC1-2009 20A 6sw + 3un --- 9' Cord  RPC + Over/Under Rocker Yes --- ETL USA
ACSPR-SEQ4-1509 15A 6sw + 3un --- 9' Cord  SEQ(4) + RPC Rocker Yes --- ETL USA
ACSPR-SEQ4-1509K 15A 6sw + 3un --- 9' Cord  SEQ(4) + RPC Key Yes --- ETL USA
ACSPR-SEQ6-2009 20A 6sw + 3un --- 9' Cord  SEQ(6) + RPC Rocker Yes --- ETL USA
ACR-1508-SHW 15A 8un --- 6' Flex-Conduit  --- --- --- --- ETL USA
ACR-1506-LTS 15A 6sw --- 9' Cord  White Light Rocker --- --- ETL USA
ACR-1507-GNLT 15A 2sw + 5un --- 9' Det. Cord --- Gooseneck Light Rocker --- --- ETL USA
ACR-1507-HDLT 15A 2sw + 5un --- 9' Det. Cord --- Night Vision Light Rocker --- --- ETL USA
ACR-RPC-1508-SD 15A 6sw + 2un --- 9' Cord  RPC External * Yes --- ETL USA
RPC-4CD ** 15A 8sw --- 6' Cord --- RPC External * --- --- ETL USA
* Items are required but not included. Order external activation switches separately (see pg. 30). ** RPC-4CD panel measures 19" x 2U x 2.75"D
Visit www.lowellmfg.com for models and more information. 28
