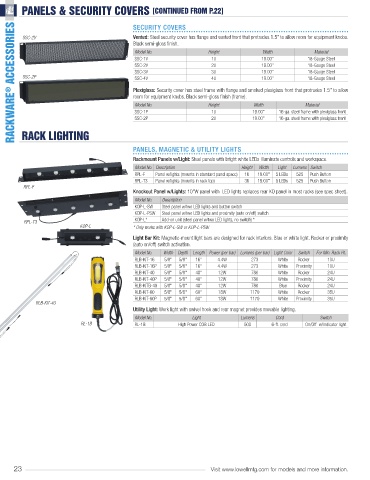

Page 26 - RACKS-PWR-ACC-2021

PANELS & SECURITY COVERS [CONTINUED FROM P.22]

RACKWARE ® ACCESSORIES
SECURITY COVERS
SSC-2V Vented: Steel security cover has flange and vented front that protrudes 1.5" to allow room for equipment knobs.
Black semi-gloss finish.
Model No. Height Width Material
SSC-1V 1U 19.00" 18-Gauge Steel
SSC-2V 2U 19.00" 18-Gauge Steel
SSC-3V 3U 19.00" 18-Gauge Steel
SSC-2P SSC-4V 4U 19.00" 18-Gauge Steel

Plexiglass: Security cover has steel frame with flange and smoked plexiglass front that protrudes 1.5" to allow
room for equipment knobs. Black semi-gloss finish (frame).
Model No. Height Width Material
SSC-1P 1U 19.00" 16-ga. steel frame with plexiglass front
SSC-2P 2U 19.00" 16-ga. steel frame with plexiglass front

RACK LIGHTING

PANELS, MAGNETIC & UTILITY LIGHTS
Rackmount Panels w/Light: Steel panels with bright white LEDs illuminate controls and workspace.
Model No. Description Height Width Light Lumens Switch
RPL-F Panel w/lights (mounts in standard panel space) 1U 19.00" 5 LEDs 525 Push Button
RPL-T3 Panel w/lights (mounts in rack top) 3U 19.00" 5 LEDs 525 Push Button
RPL-F
Knockout Panel w/Lights: 10"W panel with LED lights replaces rear KO panel in most racks (see spec sheet).
Model No. Description
KOP-L-SW Steel panel w/two LED lights and button switch
KOP-L-PSW Steel panel w/two LED lights and proximity (auto on/off) switch
RPL-T3 KOP-L* Add-on unit (steel panel w/two LED lights, no switch) *
KOP-L * Only works with KOP-L-SW or KOP-L-PSW

Light Bar Kit: Magnetic-mount light bars are designed for rack interiors. Blue or white light. Rocker or proximity
(auto on/off) switch activation.
Model No. Width Depth Length Power (per bar) Lumens (per bar) Light Color Switch For Min. Rack Ht.
RLB-KIT-16 5/8" 5/8" 16" 4.4W 273 White Rocker 10U
RLB-KIT-16P 5/8" 5/8" 16" 4.4W 273 White Proximity 10U
RLB-KIT-40 5/8" 5/8" 40" 12W 780 White Rocker 24U
RLB-KIT-40P 5/8" 5/8" 40" 12W 780 White Proximity 24U
RLB-KITB-40 5/8" 5/8" 40" 12W 780 Blue Rocker 24U
RLB-KIT-60 5/8" 5/8" 60" 18W 1170 White Rocker 35U
RLB-KIT-60P 5/8" 5/8" 60" 18W 1170 White Proximity 35U
RLB-KIT-40
Utility Light: Work light with swivel hook and rear magnet provides movable lighting.
Model No. Light Lumens Cord Switch
RL-1B RL-1B High Power COB LED 500 6-ft. cord On/Off w/indicator light

23 Visit www.lowellmfg.com for models and more information.
