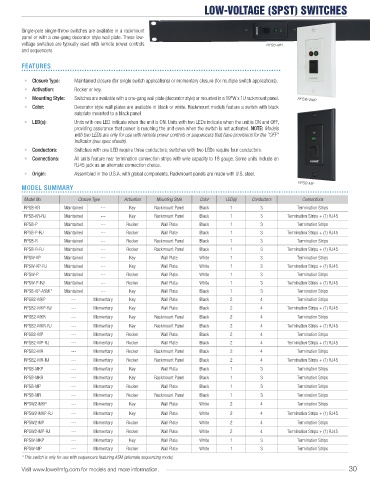

Page 33 - RACKS-PWR-ACC-2021

LOW-VOLTAGE (SPST) SWITCHES

Single-pole single-throw switches are available in a rackmount
panel or with a one-gang decorator style wall plate. These low-
voltage switches are typically used with remote power controls RPSB-MR
and sequencers.

FEATURES

• Closure Type: Maintained closure (for single switch applications) or momentary closure (for multiple switch applications).
• Activation: Rocker or key.
• Mounting Style: Switches are available with a one-gang wall plate (decorator style) or mounted in a 19"W x 1U rackmount panel. RPSW-2MP
• Color: Decorator style wall plates are available in black or white. Rackmount models feature a switch with black
subplate mounted to a black panel
• LED(s): Units with one LED indicate when the unit is ON. Units with two LEDs indicate when the unit is ON and OFF,
providing assurance that power is reaching the unit even when the switch is not activated. NOTE: Models
with two LEDs are only for use with remote power controls or sequencers that have provisions for the "OFF"
indicator (see spec sheets).
• Conductors: Switches with one LED require three conductors; switches with two LEDs require four conductors.
• Connections: All units feature rear termination connection strips with wire capacity to 18 gauge. Some units include an
RJ45 jack as an alternate connection choice.
• Origin: Assembled in the U.S.A. with global components. Rackmount panels are made with U.S. steel.

RPSB-MP
MODEL SUMMARY
Model No. Closure Type Activation Mounting Style Color LED(s) Conductors Connections
RPSB-KR Maintained --- Key Rackmount Panel Black 1 3 Termination Strips
RPSB-KR-RJ Maintained --- Key Rackmount Panel Black 1 3 Termination Strips + (1) RJ45
RPSB-P Maintained --- Rocker Wall Plate Black 1 3 Termination Strips
RPSB-P-RJ Maintained --- Rocker Wall Plate Black 1 3 Termination Strips + (1) RJ45
RPSB-R Maintained --- Rocker Rackmount Panel Black 1 3 Termination Strips
RPSB-R-RJ Maintained --- Rocker Rackmount Panel Black 1 3 Termination Strips + (1) RJ45
RPSW-KP Maintained --- Key Wall Plate White 1 3 Termination Strips
RPSW-KP-RJ Maintained --- Key Wall Plate White 1 3 Termination Strips + (1) RJ45
RPSW-P Maintained --- Rocker Wall Plate White 1 3 Termination Strips
RPSW-P-RJ Maintained --- Rocker Wall Plate White 1 3 Termination Strips + (1) RJ45
RPSB-KP-ASM * Maintained --- Key Wall Plate Black 1 3 Termination Strips
RPSB2-MKP --- Momentary Key Wall Plate Black 2 4 Termination Strips
RPSB2-MKP-RJ --- Momentary Key Wall Plate Black 2 4 Termination Strips + (1) RJ45
RPSB2-MKR --- Momentary Key Rackmount Panel Black 2 4 Termination Strips
RPSB2-MKR-RJ --- Momentary Key Rackmount Panel Black 2 4 Termination Strips + (1) RJ45
RPSB2-MP --- Momentary Rocker Wall Plate Black 2 4 Termination Strips
RPSB2-MP-RJ --- Momentary Rocker Wall Plate Black 2 4 Termination Strips + (1) RJ45
RPSB2-MR --- Momentary Rocker Rackmount Panel Black 2 4 Termination Strips
RPSB2-MR-RJ --- Momentary Rocker Rackmount Panel Black 2 4 Termination Strips + (1) RJ45
RPSB-MKP --- Momentary Key Wall Plate Black 1 3 Termination Strips
RPSB-MKR --- Momentary Key Rackmount Panel Black 1 3 Termination Strips
RPSB-MP --- Momentary Rocker Wall Plate Black 1 3 Termination Strips
RPSB-MR --- Momentary Rocker Rackmount Panel Black 1 3 Termination Strips
RPSW2-MKP --- Momentary Key Wall Plate White 2 4 Termination Strips
RPSW2-MKP-RJ --- Momentary Key Wall Plate White 2 4 Termination Strips + (1) RJ45
RPSW2-MP --- Momentary Rocker Wall Plate White 2 4 Termination Strips
RPSW2-MP-RJ --- Momentary Rocker Wall Plate White 2 4 Termination Strips + (1) RJ45
RPSW-MKP --- Momentary Key Wall Plate White 1 3 Termination Strips
RPSW-MP --- Momentary Rocker Wall Plate White 1 3 Termination Strips
* This switch is only for use with sequencers featuring ASM (alternate sequencing mode)
