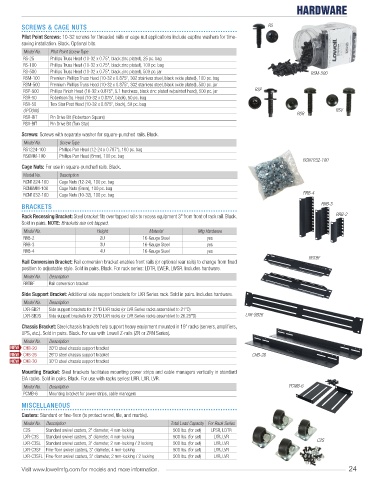

Page 27 - RACKS-PWR-ACC-2021

HARDWARE

SCREWS & CAGE NUTS RS
Pilot Point Screws: 10-32 screws for threaded rails or cage nut applications include captive washers for time-
saving installation. Black. Optional bits.
Model No. Pilot Point Screw Type
RS-25 Phillips Truss Head (10-32 x 0.75", black zinc plated), 25 pc. bag
RS-100 Phillips Truss Head (10-32 x 0.75", black zinc plated), 100 pc. bag
RS-500 Phillips Truss Head (10-32 x 0.75", black zinc plated), 500 pc. jar RSM-500
RSM-100 Premium Phillips Truss Head (10-32 x 0.875", 302 stainless steel, black oxide plated), 100 pc. bag
RSM-500 Premium Phillips Truss Head (10-32 x 0.875", 302 stainless steel, black oxide plated), 500 pc. jar
RSP-500 Phillips Finish Head (10-32 x 0.875", 5.1 hardness, black zinc plated w/painted head), 500 pc. jar RSP
RSR-50 Robertson Sq. Head (10-32 x 0.875", black), 50 pc. bag
RSV-50 Torx Star Post Head (10-32 x 0.875", black), 50 pc. bag
OPTIONS RSR RSV
RSR-BIT Pin Drive Bit (Robertson Square)
RSV-BIT Pin Drive Bit (Torx Star)
Screws: Screws with separate washer for square-punched rails. Black.
Model No. Screw Type
RS1224-100 Phillips Pan Head (12-24 x 0.787"), 100 pc. bag
RS6MM-100 Phillips Pan Head (6mm), 100 pc. bag
RCN1032-100
Cage Nuts: For use in square-punched rails. Black.
Model No. Description
RCN1224-100 Cage Nuts (12-24), 100 pc. bag
RCN6MM-100 Cage Nuts (6mm), 100 pc. bag
RCN1032-100 Cage Nuts (10-32), 100 pc. bag RRB-4
BRACKETS RRB-3
Rack Recessing Bracket: Steel bracket fits over tapped rails to recess equipment 3" from front of rack rail. Black. RRB-2
Sold in pairs. NOTE: Brackets are not tapped.
Model No. Height Material Mtg Hardware
RRB-2 2U 16-Gauge Steel yes
RRB-3 3U 16-Gauge Steel yes
RRB-4 4U 16-Gauge Steel yes
RRTBF
Rail Conversion Bracket: Rail conversion bracket enables front rails (or optional rear rails) to change from fixed
position to adjustable style. Sold in pairs. Black. For rack series: LDTR, LWER, LWSR. Includes hardware.
Model No. Description
RRTBF Rail conversion bracket
Side Support Bracket: Additional side support brackets for LXR Series rack. Sold in pairs. Includes hardware.
Model No. Description
LXR-SB21 Side support brackets for 21"D LXR racks (or LVR Series racks assembled to 21"D)
LXR-SB26 Side support brackets for 26"D LXR racks (or LVR Series racks assembled to 26.25"D) LXR-SB26

Chassis Bracket: Steel chassis brackets help support heavy equipment mounted in 19” racks (servers, amplifiers,
UPS, etc.). Sold in pairs. Black. For use with Lowell Z-rails (ZR or ZRN Series).
Model No. Description
CHB-20 20"D steel chassis support bracket
CHB-26 26"D steel chassis support bracket CHB-26
CHB-30 30"D steel chassis support bracket
Mounting Bracket: Steel brackets facilitates mounting power strips and cable managers vertically in standard
EIA racks. Sold in pairs. Black. For use with racks series: LRR, LXR, LVR.
Model No. Description PCMB-6
PCMB-6 Mounting bracket for power strips, cable managers
MISCELLANEOUS
Casters: Standard or fine-floor (to protect wood, tile, and marble).
Model No. Description Total Load Capacity For Rack Series
C2S Standard swivel casters, 2" diameter, 4 non-locking 500 lbs. (for set) LPSR, LDTR
LXR-C3S Standard swivel casters, 3" diameter, 4 non-locking 500 lbs. (for set) LXR, LVR
LXR-C3SL Standard swivel casters, 3" diameter, 2 non-locking / 2 locking 500 lbs. (for set) LXR, LVR C2S
LXR-C3SF Fine-floor swivel casters, 3" diameter, 4 non-locking 500 lbs. (for set) LXR, LVR
LXR-C3SFL Fine-floor swivel casters, 3" diameter, 2 non-locking / 2 locking 500 lbs. (for set) LXR, LVR

Visit www.lowellmfg.com for models and more information. 24
