- Style: Screw-mount
- Material: High-impact polystyrene plastic. White.
- Mounting Bolt Circle: 11.25 in. diameter
- Overall Dimensions: 12.625 in. diameter
- Mounting Projection: 0.437 in.
- Mounting Provisions: 4 screws (white), 4 bosses/screws

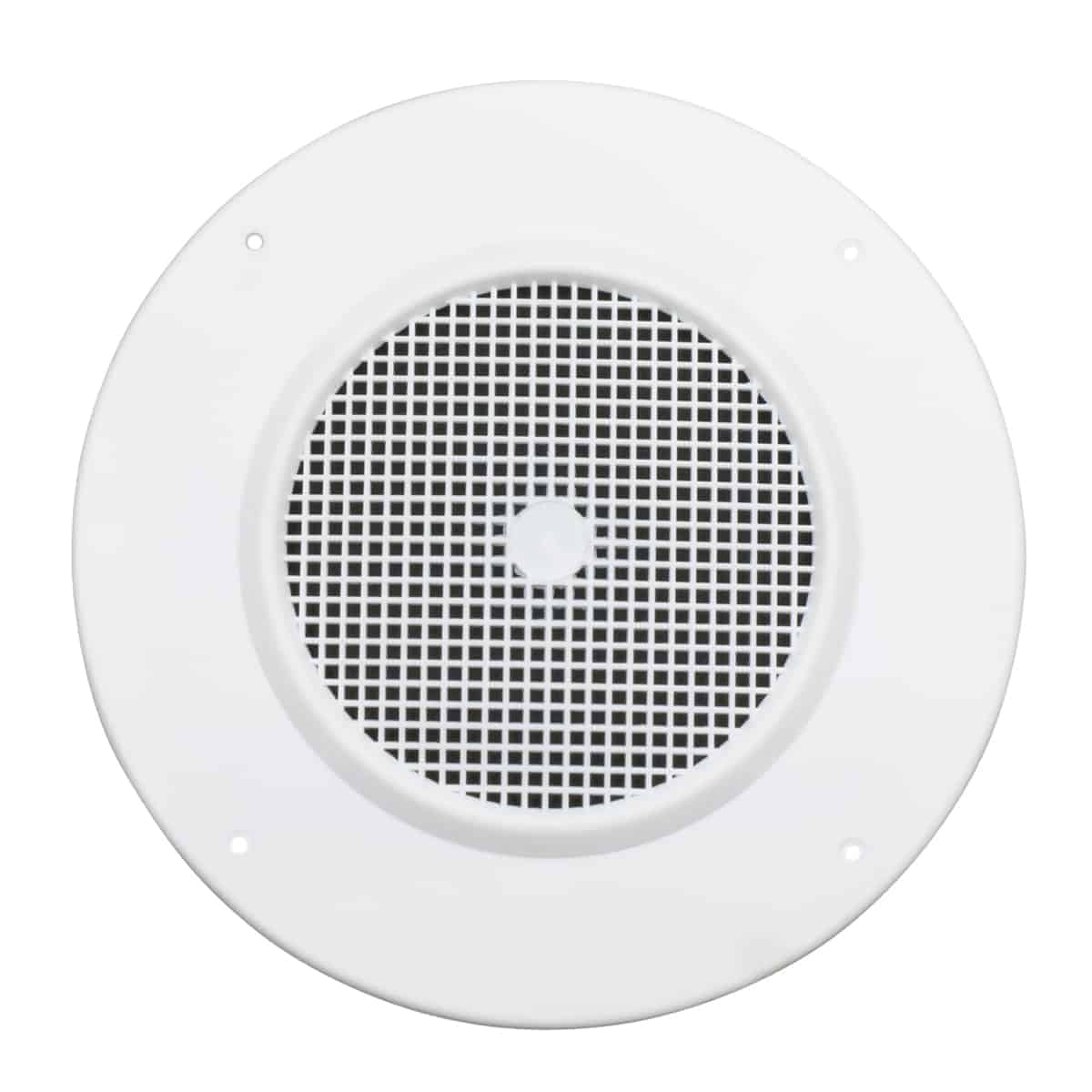

The plastic speaker grille for 8-inch speakers shall be Lowell Model LO8-P. The grille shall be molded high-impact, polystyrene plastic with a flush trim ring and a round honeycomb perforation pattern. The grille diameter shall be 12.625 in. with a mounting projection from the ceiling of 0.437 in. The grille shall have four concealed screw bosses spaced at 90-degree intervals for mounting the specified 8 in. speaker using self-tapping screws provided. It shall also have four 0.25 in. holes spaced at 90 degree intervals on a 11.25 in. bolt circle for mounting specified backbox or mounting ring using white screws provided. Model LO8-P shall be white plastic suitable for painting.
- Backboxes: CP84, CP87, CP810, DX108, XCP84, XCP84-S, XCP87, XCP810, 8XD4
- Tile-Bridges: LBS8, LBS8-CP
- Drivers (8 inch): 810, 8A50
See spec sheet for additional suggestions
