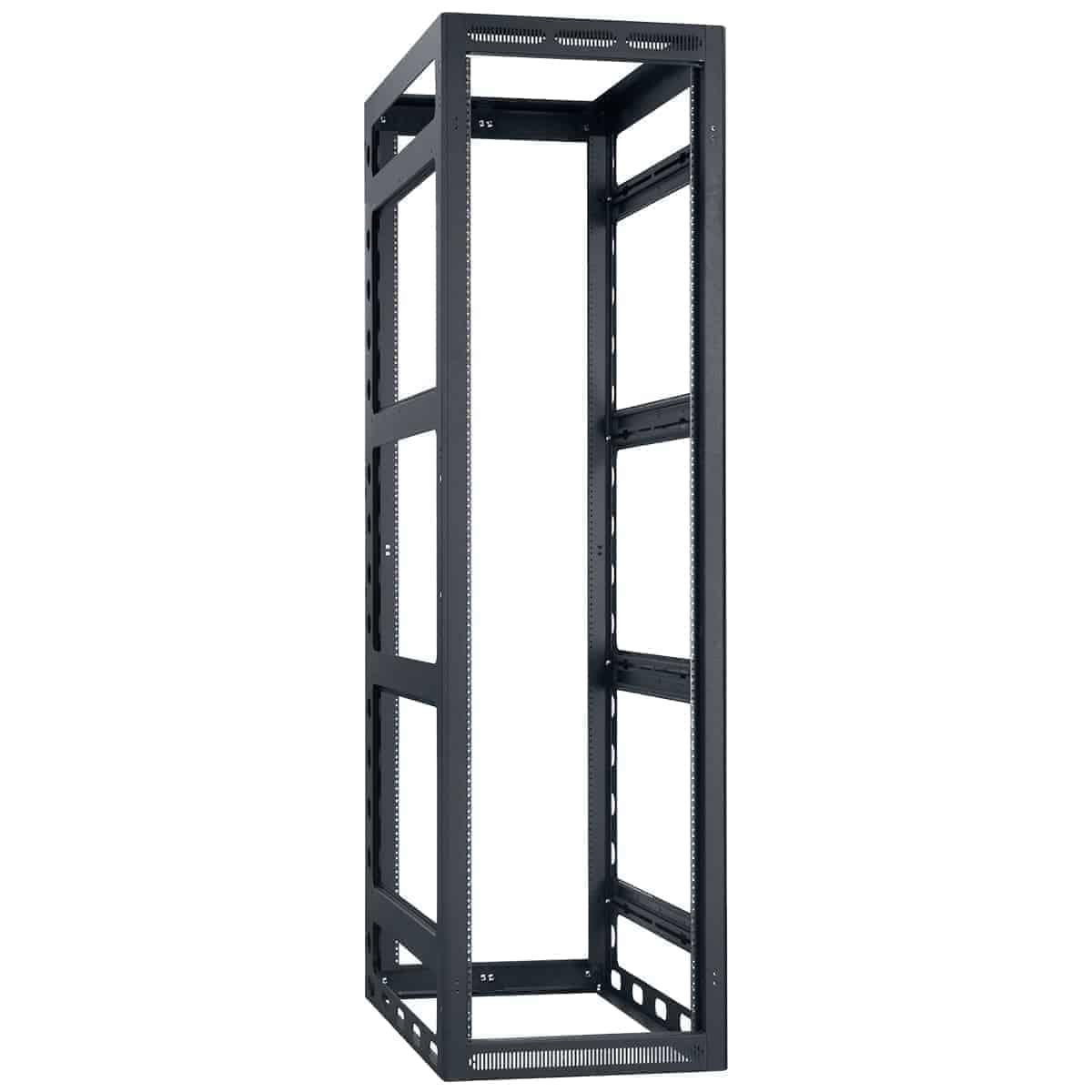

- Configurable top has 12U opening
- Open frame with multiple 2 in. holes on sides for cable runs between racks
- Open front (optional door)

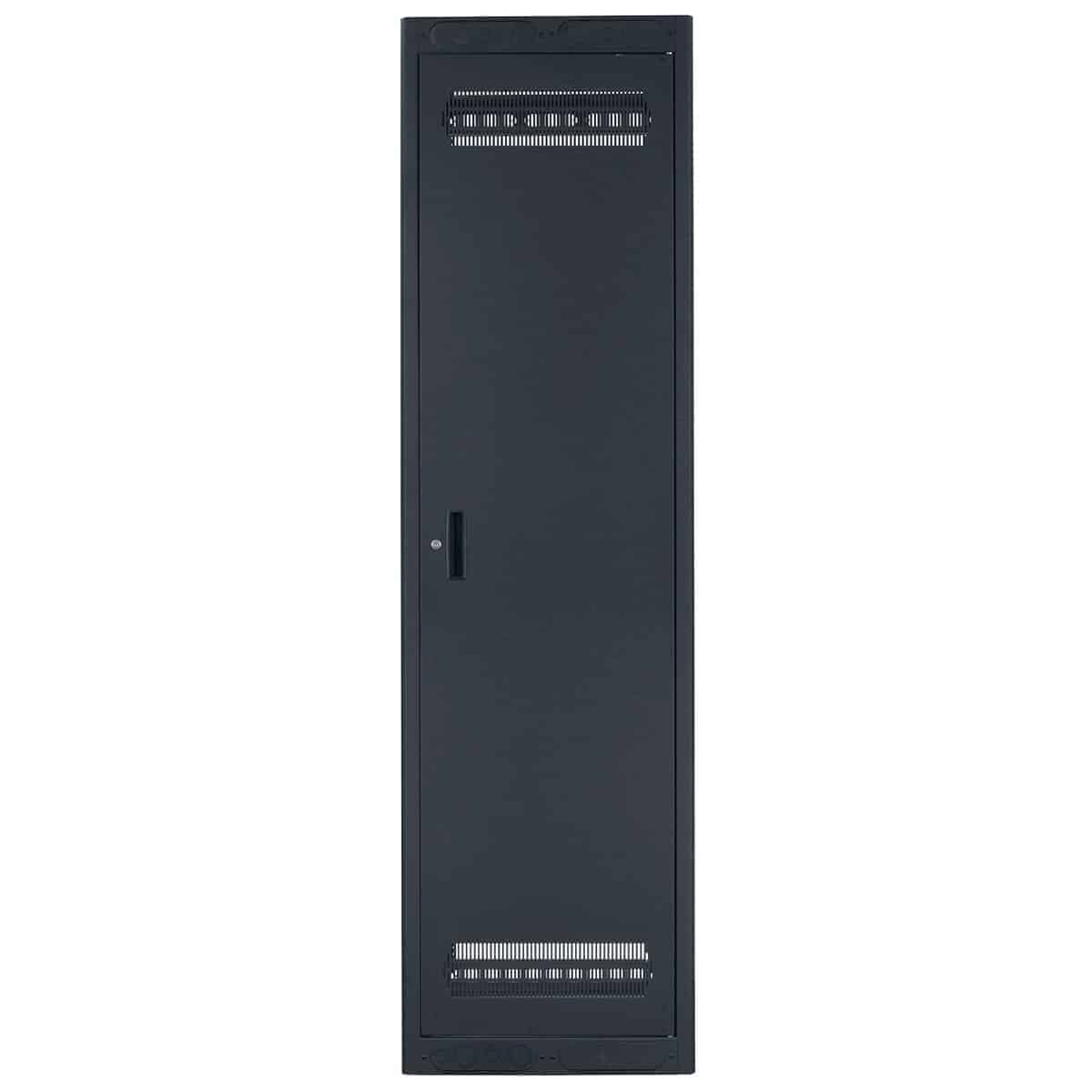

- Rear door with top/bottom vents and key lock
- Two-pairs fully adjustable rails tapped 10-32 (printed RU scale)
- Cable Management: multiple lacing points, holes, knockout panels
- Pilot point screws with captive washers
- Grounding stud
- Threaded inserts (for optional leg levelers)
- Beveled corners
- Black-textured powder-coat finish
- Rack Space: 44U
- Height: 83.125 in.
- Width: 23.06 in.
- Depth: 42.00 in. (39.34 usable)
- Load capacity 3150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- UL 2416 Listed
- USA-certified steel
- Made in USA

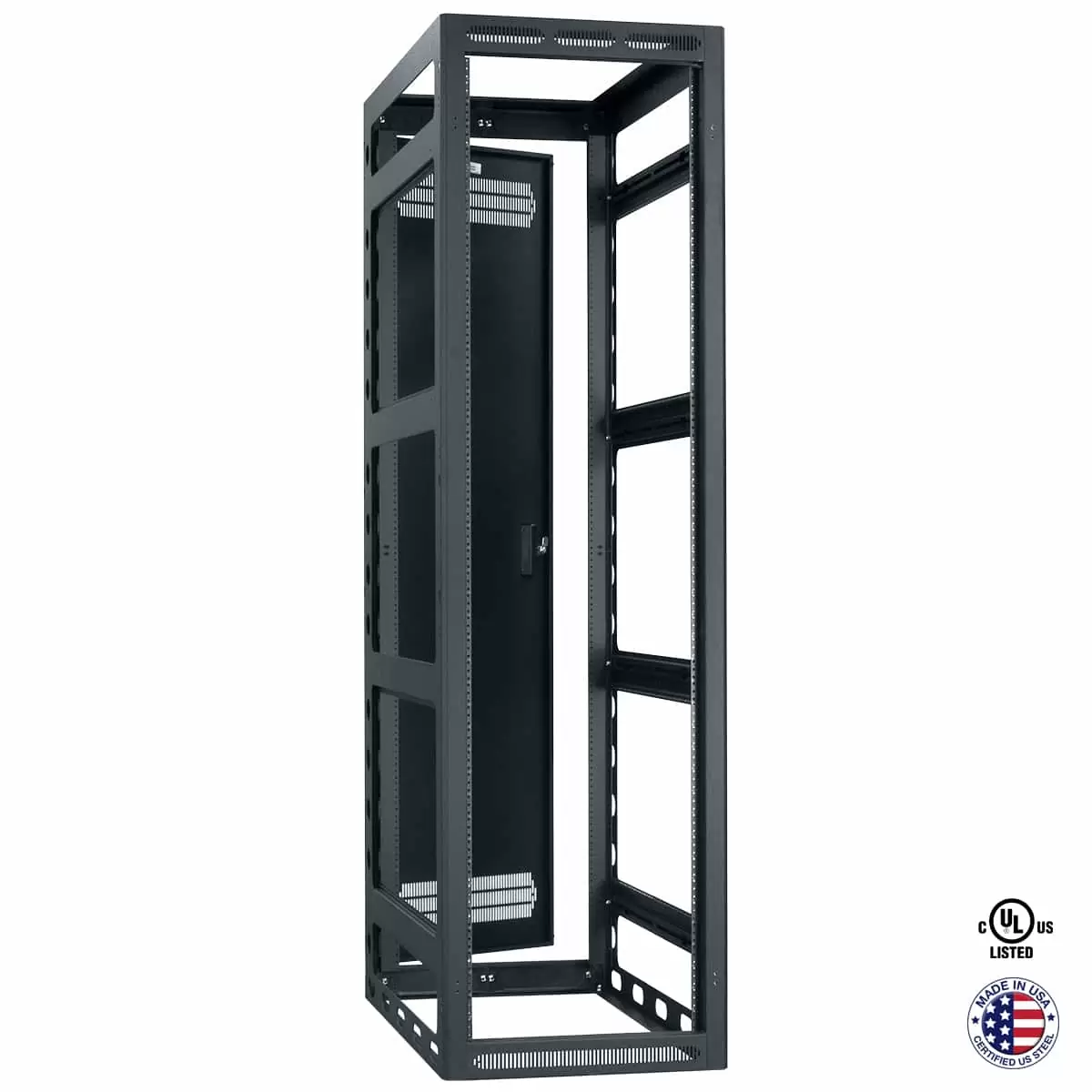

The EIA/TIA-compliant, gangable rack shall be Lowell Model LGR-4442. Overall measurements shall be 83.125″H x 42″D x 23.06″W with panel space of 44 rack units. Load capacity shall be 3150 lbs. The rack shall include a recessed rear door with vents and key lock; top with 12U opening; open base with grounding stud; two-pairs adjustable mounting rails with printed RU increments; knockout panels with combination knockouts above/below rear door; and provisions to mount an optional surface-mount front door (ordered separately). The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be UL2416 Listed, Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant.
