ACR-1508-SHW rackmount power panel, 15A outlets, hardwired

ACR-1508-SHW - DISCONTINUED

Name: ACR-1508-SHW - DISCONTINUED
SKU: ACR-1508-SHW
Availability: InStock

SEE ALTERNATIVE: ACR-159-S or ACR-1509-S

$248.80 MSRP

DISCONTINUED | Out of Stock
Recommended Alternatives: ACR-159-S | ACR-1509-S

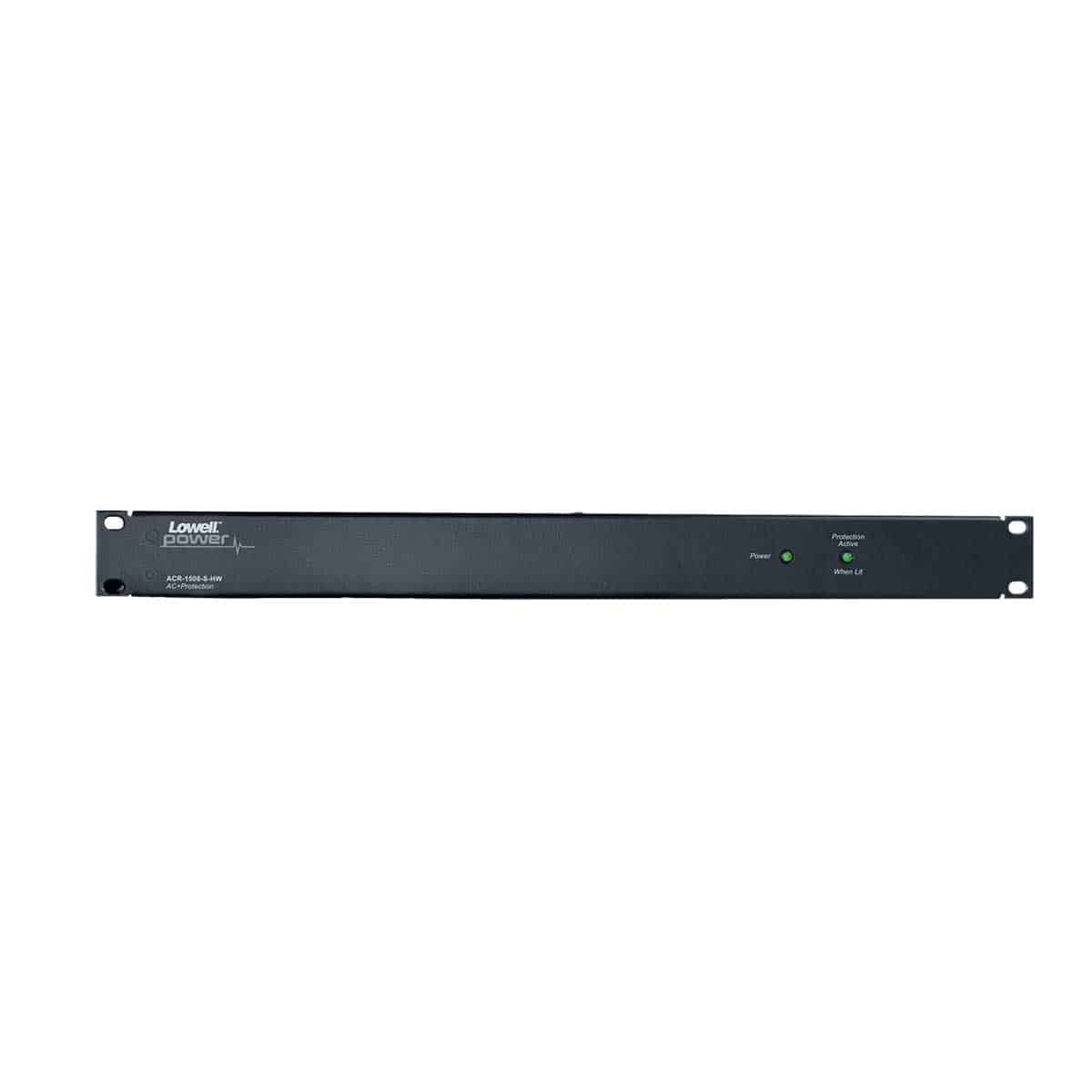

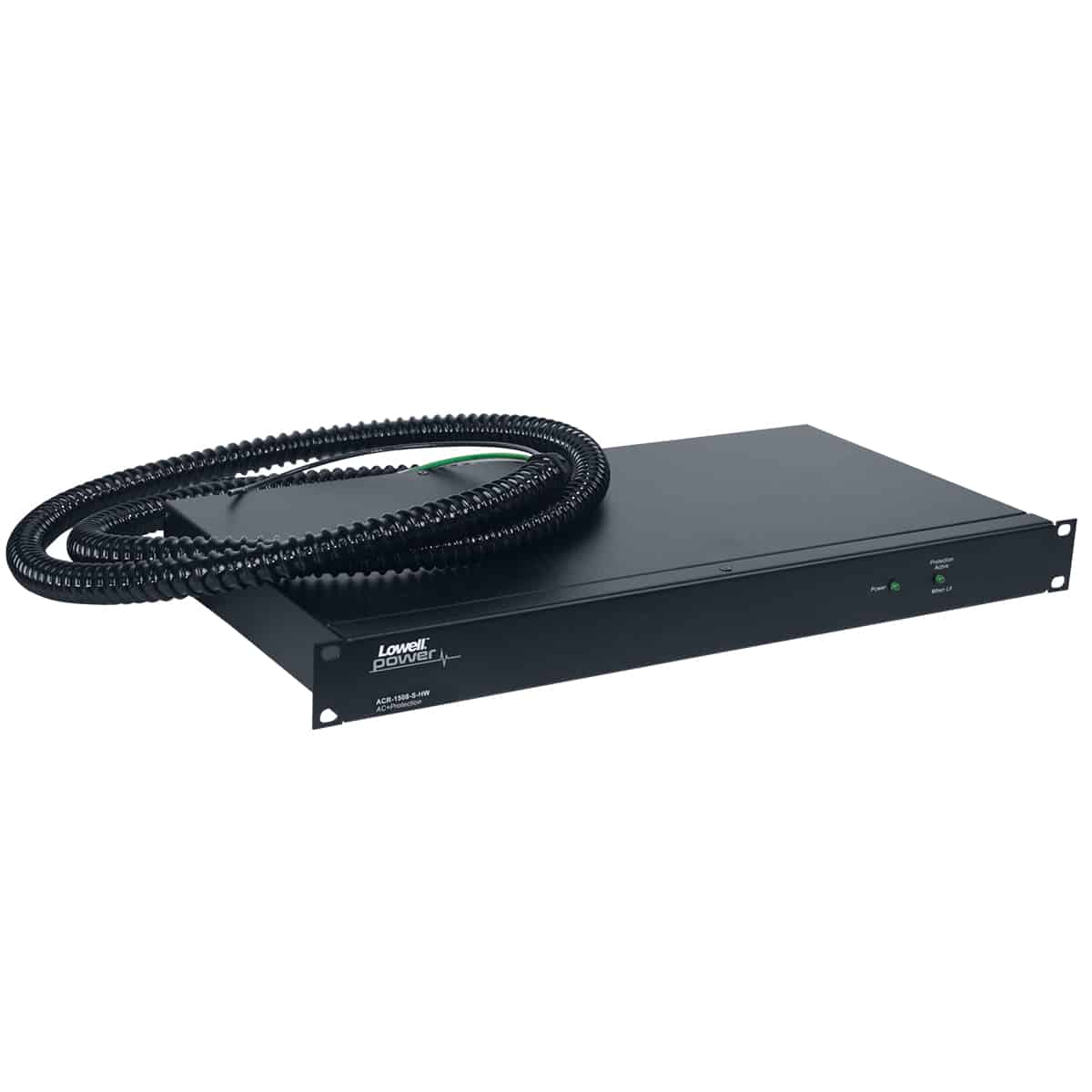

Hardwired PDU model ACR-1508-SHW features eight (8) NEMA 5-15R receptacles, all located in the rear. The 120VAC 60Hz 15A panel includes basic surge protection (surges up to 30,000A). Front LEDs provide status of power and surge protection. Power input is via a 6-ft. non-metallic flexible whip, which can be trimmed in the field as needed.

Add to Favorites

Compare

Chassis: 19 in. x 9 in. x 1.75 in. (1U)
Power Rating: 120VAC, 60Hz, 15A
Outlets: 8 (15A) NEMA outlets in rear
Termination: 6 ft. non-metallic flexible conduit (whip) with pigtail leads
Surge protection against surges up to 30,000A

Spec Sheet: 1180-ACR-1508-SHW

ETL Listed in US/Canada (UL60065)
EIA/TIA Compliant
Certified U.S. Steel
Assembled in U.S.A. with global components

The rack shall include Lowell panel model ACR-1508-SHW, which shall be ETL Listed and have a power rating of 120VAC, 60Hz, 15A, 1800W. It shall feature eight NEMA 5-15R outlets, all in the rear, and basic surge protection against power surges up to 30,000A. Termination shall be via a six ft. non-metallic flexible conduit with hardwired connections. The steel chassis with black powder epoxy finish shall measure 19″W x 9″D x 1.75″H (1U).
