Rack top with cable brush panel and four fan panel

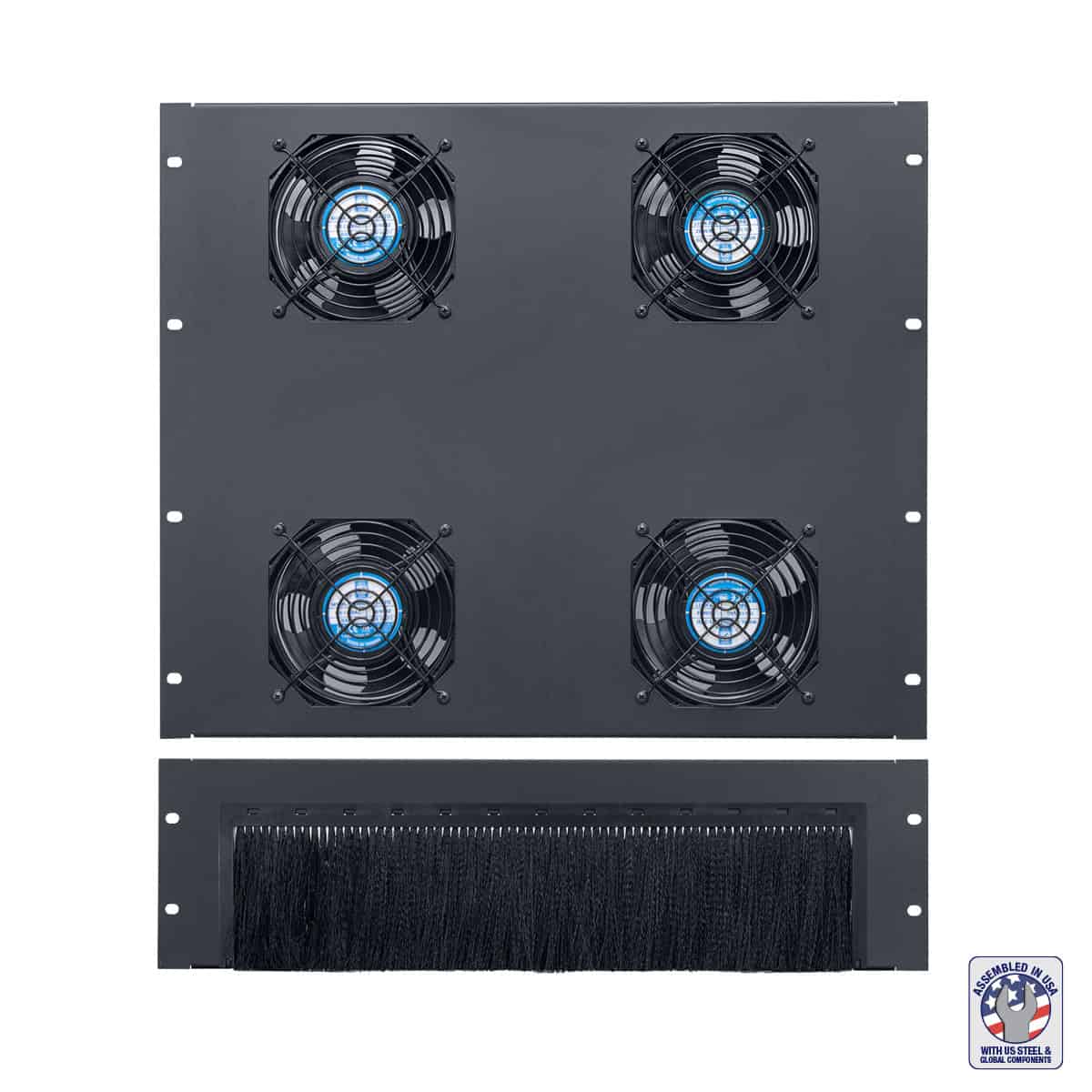

Rack Top w/3U Brush Panel + 9U Four Fan Panel

Name: Rack Top w/3U Brush Panel + 9U Four Fan Panel
SKU: RTB2
Availability: InStock

RTB-2

$733.40 MSRP

RTB-2 includes a 3U brush panel (Lowell model CBP-3) and a 9U fan panel with four whisper fans. Both panels feature a black powder coat finish. RTB series rack tops are designed to fit Lowell LER and LGR racks with 12U configurable tops that feature 10-32 threaded rails on 19" EIA spacing.

Add to Favorites

Compare

3U Brush Panel (model CBP-3):

18-gauge steel frame
Snap-in brush strip w/three sided steel frame
Black powder coat finish
Mounting hardware

Whisper Fan Panel:

16-gauge steel panel
19″W x 2″D x 9U
Four mounted fans with guards

4.7″ fan diameter
50 cfm airflow rating (per fan)
28 dBA noise rating (per fan)
5.5 watts power required (per fan)

6-ft. green “thermo-cord” with integral thermostat probe to control fan operation – automatically turning on/off when ambient temperature hits pre-set points. Fan activates when temperature reaches 86˚F and deactivate when temperature reaches 72˚F
Fan Orientation: Exhaust* (pulls air out)

SPEC SHEET: RTB Series

EIA/TIA Compliant
Certified U.S. Steel
>Assembled in U.S.A. with global components

The rack shall include Lowell rack top model RTB-2 which shall include a cable brush panel and four fan panel. The cable brush panel shall measure 3U x 19″W and feature a snap-in brush strip and one open side. The fan panel shall be 16-gauge steel panel with black powder coat finish. It shall measure 9U x 19″W and include 4 whisper fans with fan guards. Each fan shall have a 4.7″ diameter with 50 cfm airflow and 28 dBA noise rating. The unit shall include a 6-ft. cord with plug. The cord shall be green and shall feature an integral thermostat probe to automatically control fan activation. The whisper fan panel shall be assembled in the U.S.A. with certified U.S. steel and global components.
