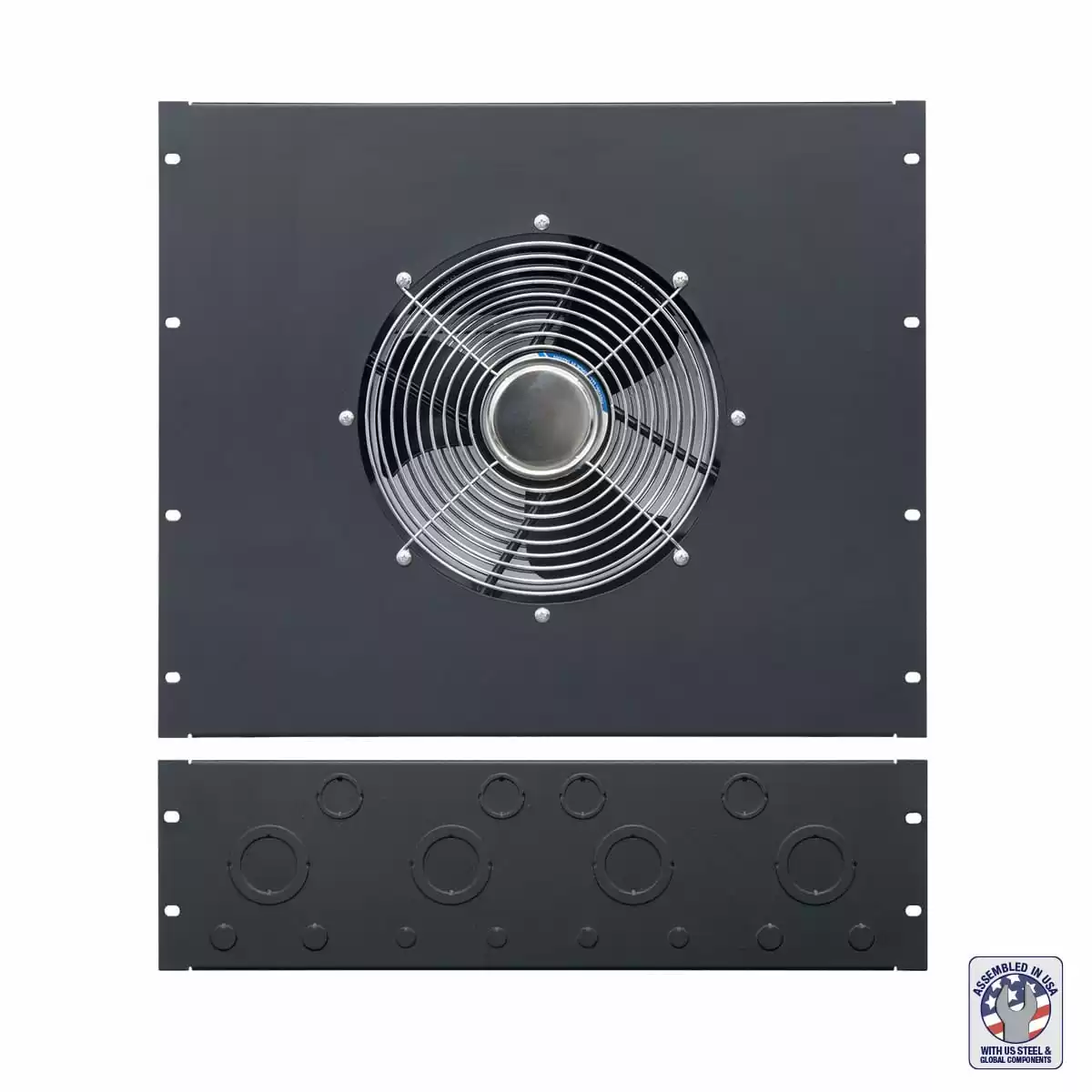

Rack Top w/3U Knockout Panel + 9U Turbo Fan Panel

Name: Rack Top w/3U Knockout Panel + 9U Turbo Fan Panel
SKU: RTK3
Availability: InStock

RTK-3

$824.80 MSRP

RTK-2 includes a 3U knockout panel and a 9U turbo panel. Both panels feature a black powder coat finish. RTK series rack tops are designed to fit Lowell LER and LGR racks with 12U configurable tops that feature 10-32 threaded rails on 19" EIA spacing.

Add to Favorites

Compare

3U Knockout Panel:

18-gauge steel frame
Series of combination knockouts for cable management
Black powder coat finish
Mounting hardware

9U Turbo Fan Panel:

16-gauge steel panel
19″W x 4″D x 9U
Single mounted tubeaxial fan with guards
- 10″ fan diameter
- 550 cfm airflow rating
- 50.8 dBA noise rating
- 61 watts power required
- Operates on 115 VAC 50/60 Hz
6-ft. green “thermo-cord” with integral thermostat probe to control fan operation – automatically turning on/off when ambient temperature hits pre-set points. Fan activates when temperature reaches 86˚F and deactivate when temperature reaches 72˚F
Fan Orientation: Exhaust* (pulls air out)

SPEC SHEET: RTK Series

TAA compliant
EIA/TIA compliant
USA-certified steel
Made in USA with US and global components

The rack shall include Lowell rack top model RTK-3 which shall include a cable knockout panel and turbo fan panel. The cable knockout panel shall measure 3U x 19″W and feature a series of combination knockouts for cable management. The fan panel shall be 16-gauge steel with black powder coat finish. It shall measure 9U x 19″W with a 10″ x 3.75″D tubeaxial fan, which shall include front and rear fan guards. The fan shall provide 550 cfm airflow and have a 50.8 dBA noise rating. The unit shall include a 6-ft. cord with plug. The cord shall be green and shall feature an integral thermostat probe to automatically control fan activation. The rack top shall be Made in USA using USA-certified steel and global components. It shall be EIA/TIA compliant and Trade Agreement Act (TAA) compliant.
