- Configurable top with 12U opening
- Welded sides with vents
- Recessed rear door with key lock
- Adjustable front rails tapped 10-32
- Multiple lacing points, laser-cut knockout panels
- Pilot point screws with captive washers
- Grounding stud
- Beveled corners
- Black-textured powder-coat finish
- Rack Space: 35U
- Height: 67.375 in.
- Width: 23.06 in.
- Depth: 27.00 in. (24.34 usable)
- Load capacity 3150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- UL 2416 Listed
- USA-certified steel
- Made in USA

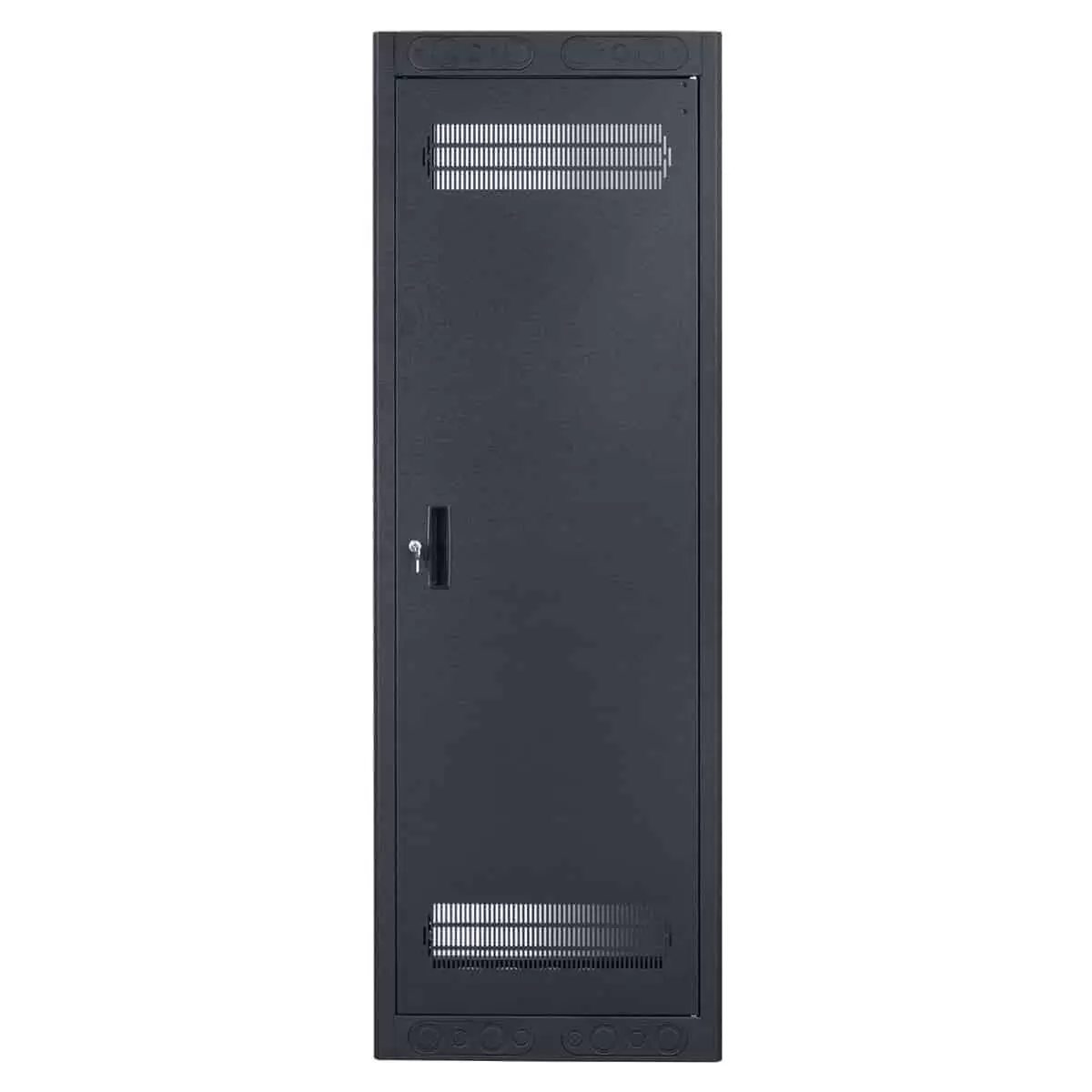

The EIA/TIA-compliant, stand-alone floor rack shall be Lowell Model LER-3527. Overall measurements shall be 67.375″H x 27″D x 23.06″W with panel space of 35 rack units. Load capacity shall be 3150 lbs. The rack shall include a recessed rear door with vents and key lock, welded side panels with vents, top with 12U opening and combination knockouts, open base with grounding stud, one-pair adjustable front mounting rails with printed RU increments, laser-cut combination knockouts above and below rear door, and provisions to mount an optional surface-mount front door or rear rails (ordered separately). The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be UL2416 Listed, Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant.
