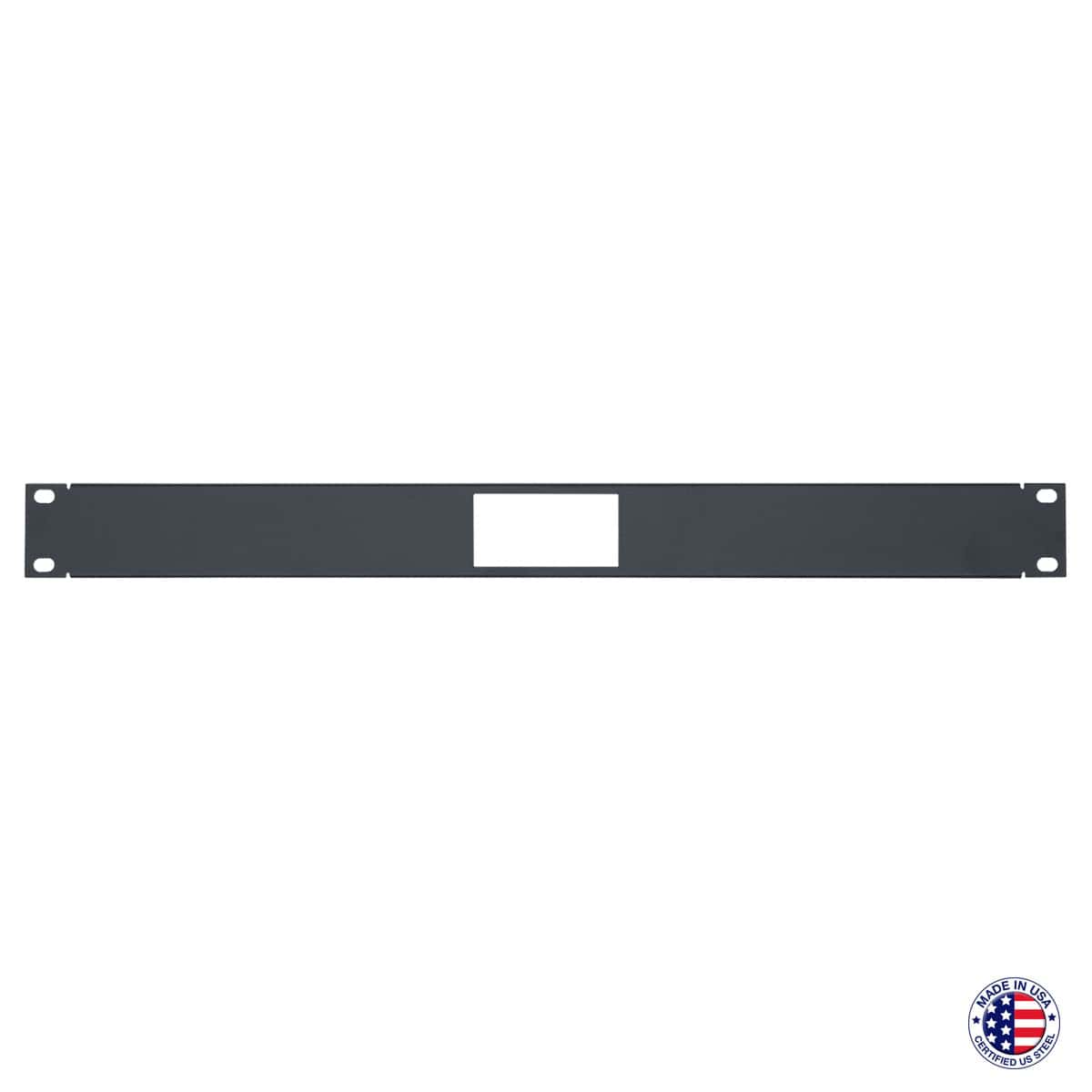

rack panel with one decora style punch, front view

rack panel with one decora style punch, rear view

Rack Panel for 1 Decorator Device, Horizontal Mount

Name: Rack Panel for 1 Decorator Device, Horizontal Mount
SKU: D1P-1
Availability: InStock

D1P-1 (1U)

$47.20 MSRP

This 19-inch rackmount panel features one punch to hold a decorator style device mounted horizontally. Steel with black powder coat finish.

Add to Favorites

Compare

18-gauge steel
One (1) punch for 1-gang decorator style devices mounted horizontally
Black powder coat finish
Kep nut hardware

Rack Space: 1U
Height: 1.75 in.
Width: 19.00 in.
Depth: 0.50 in. flange

SPEC SHEET: 2477-DP Series
CAD DRAWING: D1P-1

The rackmount panel for decorator style devices shall be Lowell Model No. D1P-1 and shall measure 19″W x 1.75″H (1U). It shall feature a black semi-gloss powder coat finish and be formed steel construction with a punched opening to hold a (1-gang) decorator style device, mounted horizontally. The panel shall include Kep nut hardware. Switches shall be ordered separately.

RPS Series: Low voltage switches (decorator style only, remove the wall plate before installing switch in panel)
LVC Series: Volume control switches (decorator style only, remove the wall plate before installing switch in panel)
Potentiometers (decorator style only, remove the wall plate before installing switch in panel)
