- 16-gauge steel

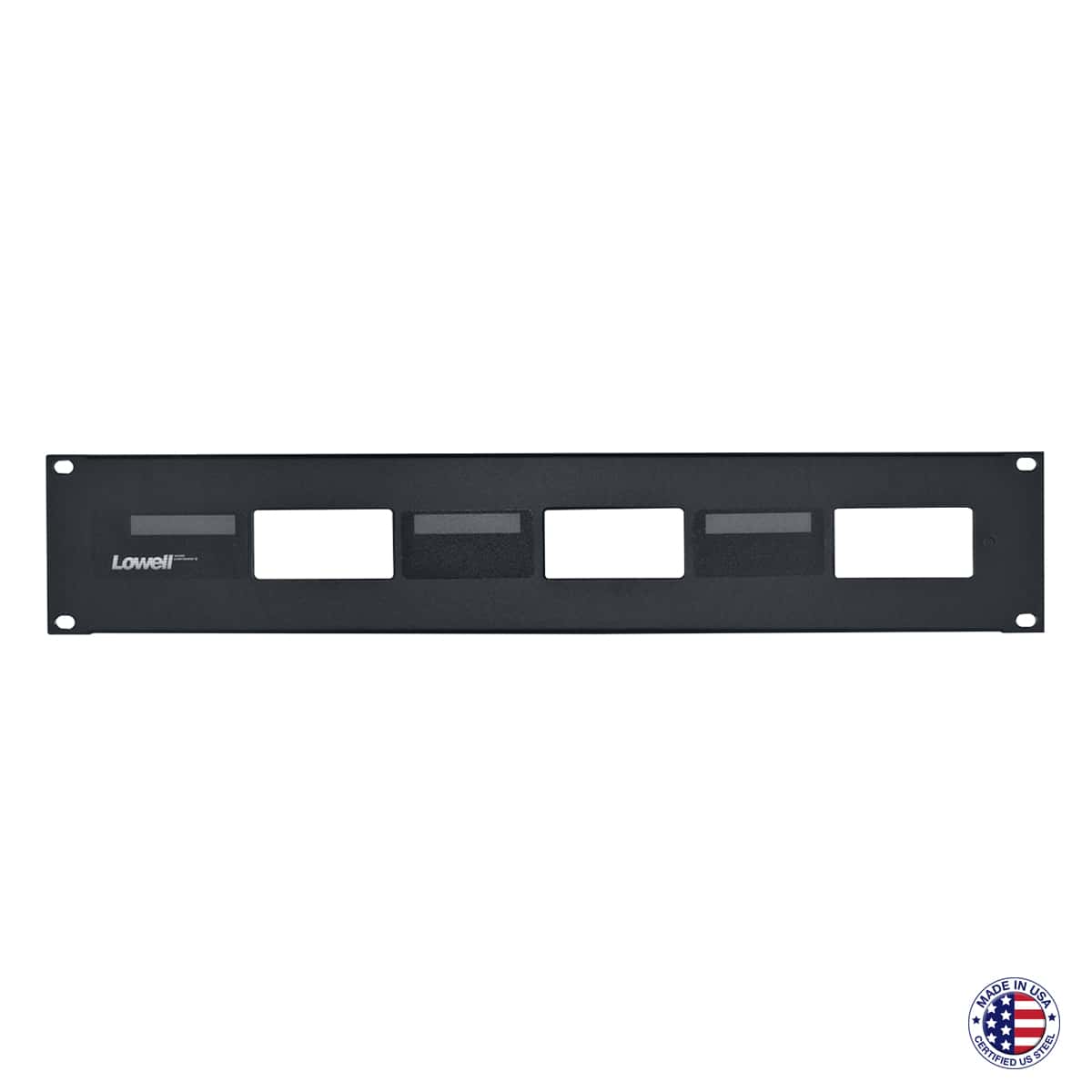

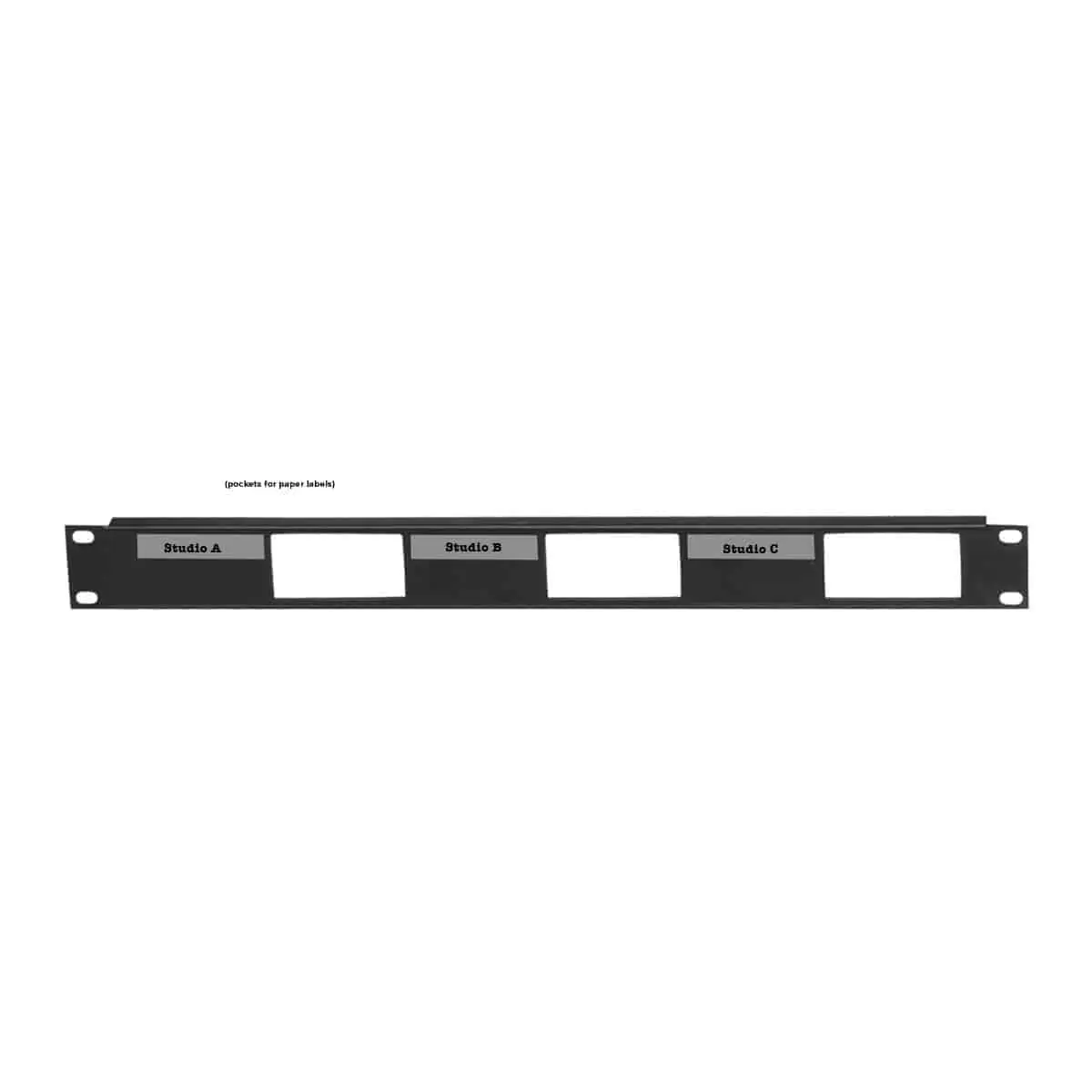

- PocketID™ polycarbonate overlay window for a paper label (not included)

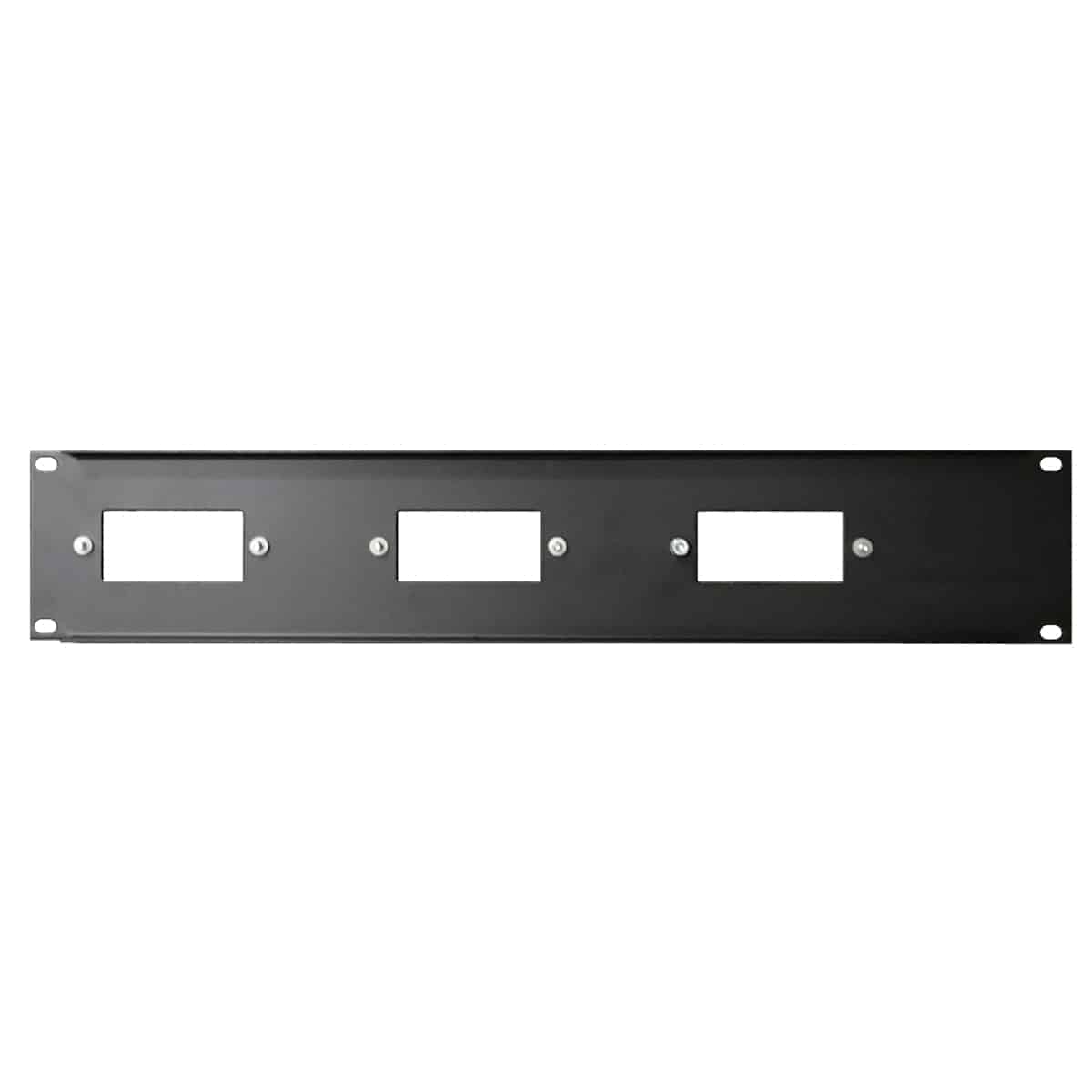

- Three (3) punches for low-voltage decorator style devices mounted horizontally
- Rear lacing flange for wire management
- Smooth black powder epoxy finish
- Hardware
- Rack Space: 1U or 2U
- Height: 3.50 in.
- Width: 19.00 in.
- Depth: 0.625 in. flange
SERIES SPEC SHEET: 1064-D3P
CAD DRAWINGS:
LABEL TEMPLATE: PocketID "Template E"
The rackmount panel for decorator style devices shall be Lowell Model No. _________ and shall measure 19″W x ______. It shall be 16-gauge formed steel construction with black semi-gloss powder epoxy finish and punched openings to hold up to three decorator style devices, mounted horizontally. The panel shall include a rear lacing flange for wire management. Devices and blank filler plates shall be ordered separately.
- RPS Series: Low voltage switches (remove the wall plate before installing switch in panel)
- LVC Series: Volume control switches (decorator style only, remove the wall plate before installing switch in panel)
- Potentiometers (decorator style only, remove the wall plate before installing switch in panel)
- DBB-4: Blank filler plate for empty space
