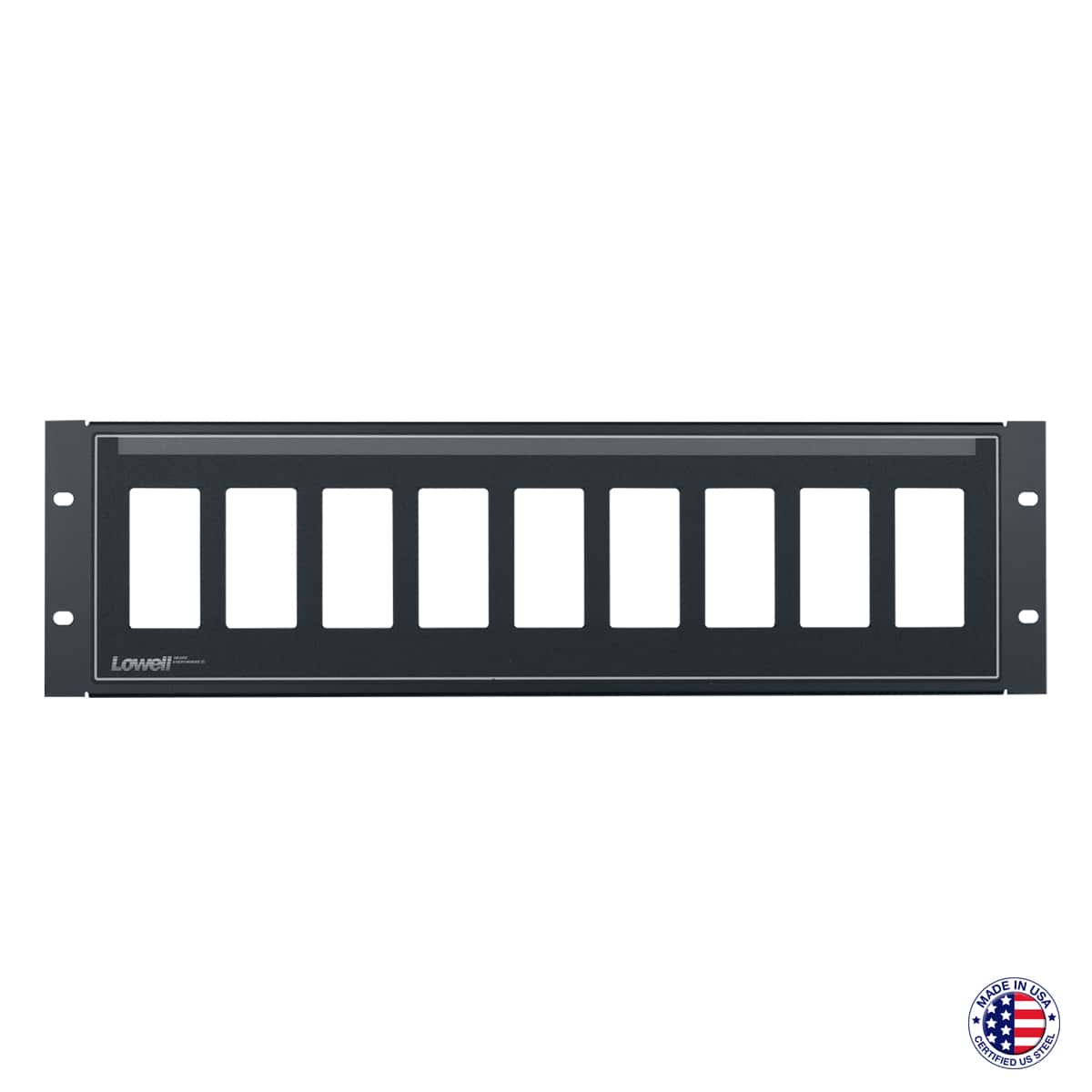

Rack Panel for 9 Decorator Devices, Vertical Mount

Name: Rack Panel for 9 Decorator Devices, Vertical Mount
SKU: D9P-ID-3
Availability: InStock

D9P-ID-3 (3U)

$96.40 MSRP

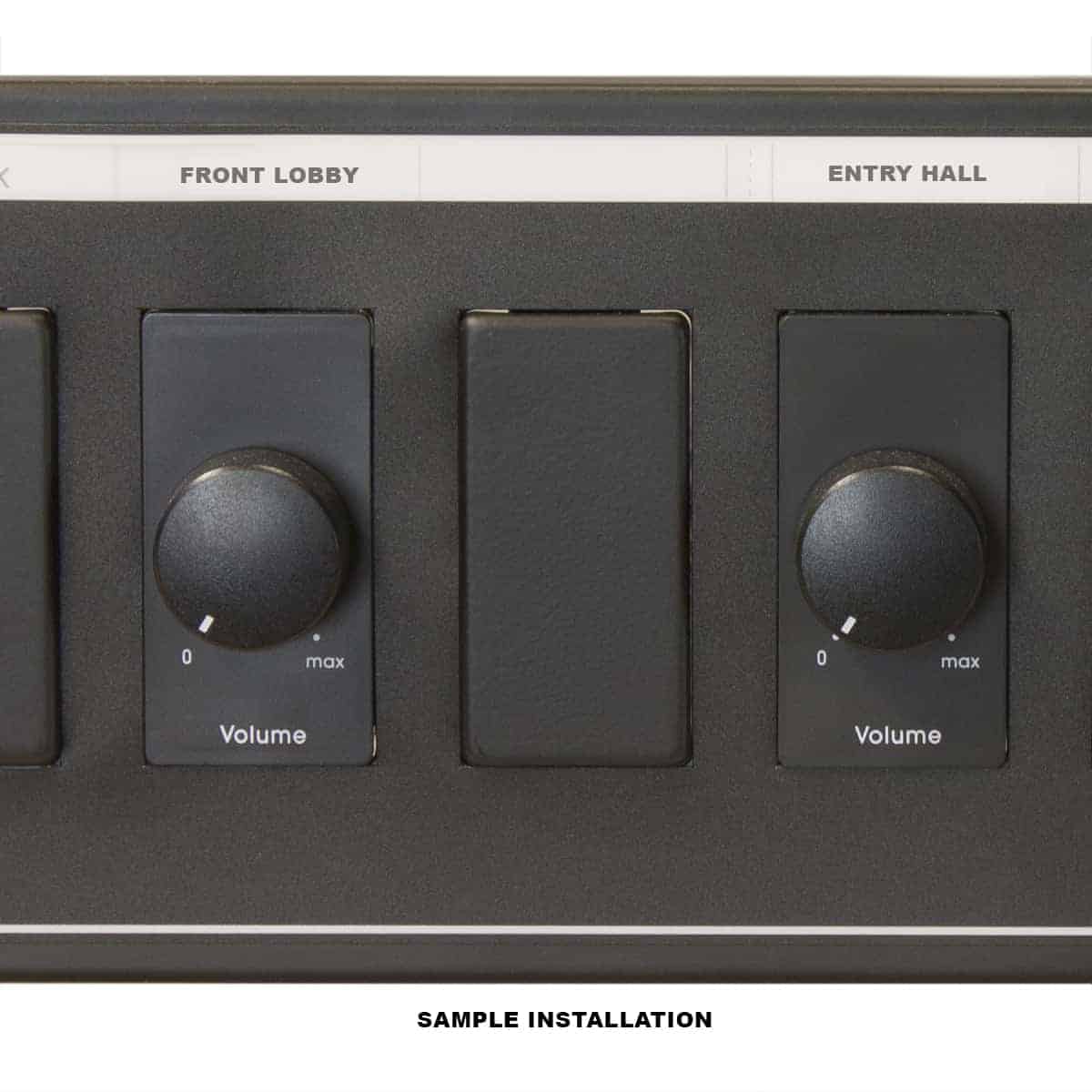

Rackmount panel is punched to hold up to nine low-voltage decorator style devices. Includes a plastic sleeve to hold a paper label to identify controls. Steel with black powder epoxy finish.

Add to Favorites

Compare

16-gauge steel
PocketID™ polycarbonate overlay window for a paper label (not included)
Nine (9) punches for low-voltage decorator style devices mounted vertically
Smooth black powder epoxy finish
Hardware

Rack Space: 3U
Height: 5.25 in.
Width: 19.00 in.
Depth: 0.5 in. flange

SPEC SHEET: 1066-D9PID3
CAD DRAWING: D9P-ID-3
LABEL TEMPLATE: PocketID "Template B"

The rackmount panel for mounting low-voltage decorator style devices shall be Lowell Model No. D9P-ID-3. It shall be formed steel construction (19″W x 5.25″H) with 9 punched cutouts and a smooth black semi-gloss powder epoxy finish. It shall include hardware, a rear lacing flange for wire management, and a plastic overlay to hold a 0.5″H paper label (not included).

RPS Series: Low voltage switches (remove the wall plate before installing switch in panel)
LVC Series: Volume control switches (decorator style only, remove the wall plate before installing switch in panel)
Potentiometers (decorator style only, remove the wall plate before installing switch in panel)
DBB-4: Blank filler plate for empty space
