- 14-gauge steel top/base
- 11-gauge steel corner-post rails tapped 10-32, printed RU scale
- Steel top with vents and knockouts
- Base with large center opening, vents, and knockouts
- Open sides with obrounds for cable management
- Side support brackets for torsional rigidity
- Smooth-black powder-coat finish
- Ships unassembled
- Rack Space: 30U
- Height: 56.34 in.
- Width: 19.21 in.
- Depth: 26.25 in.
- Load Capacity: 400 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA

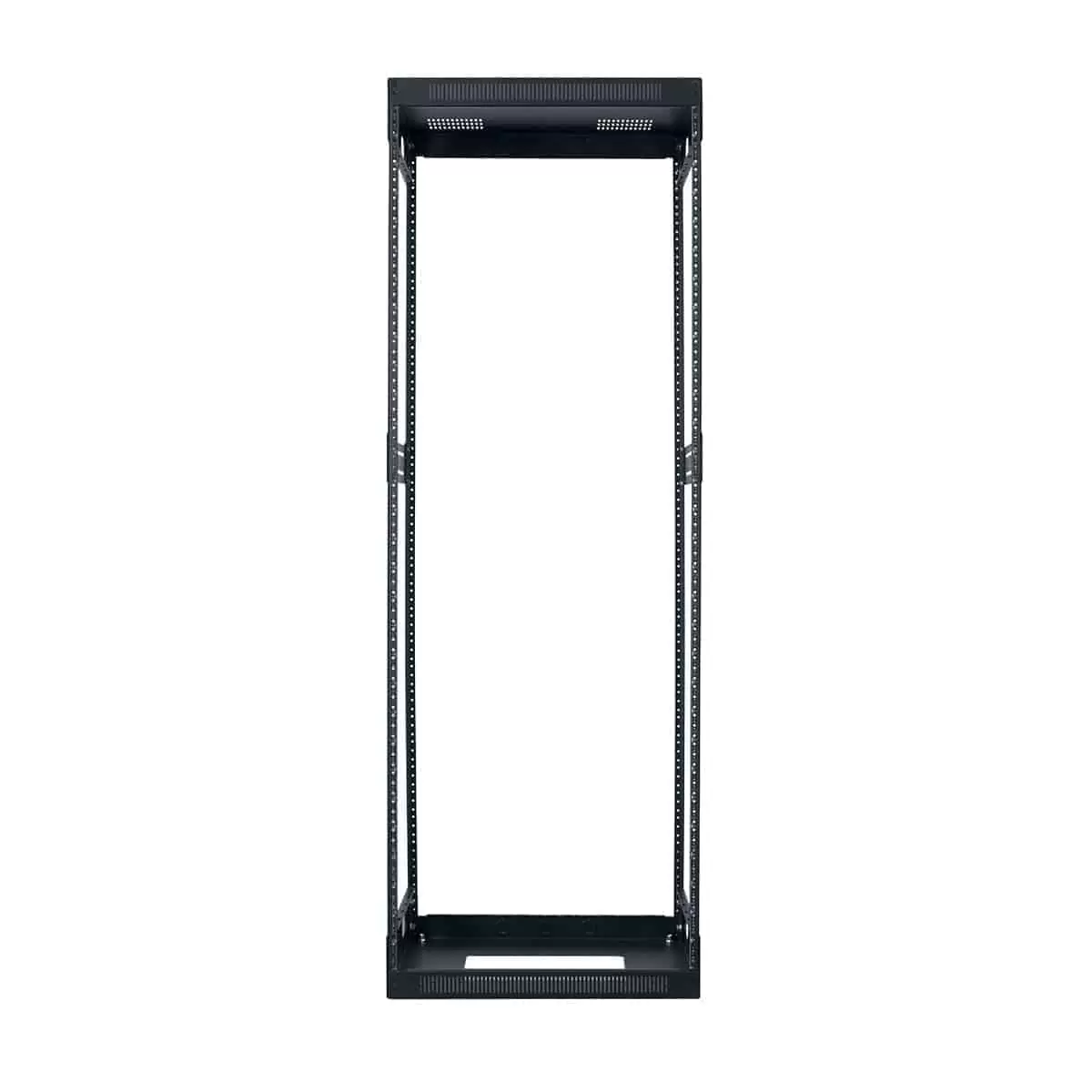

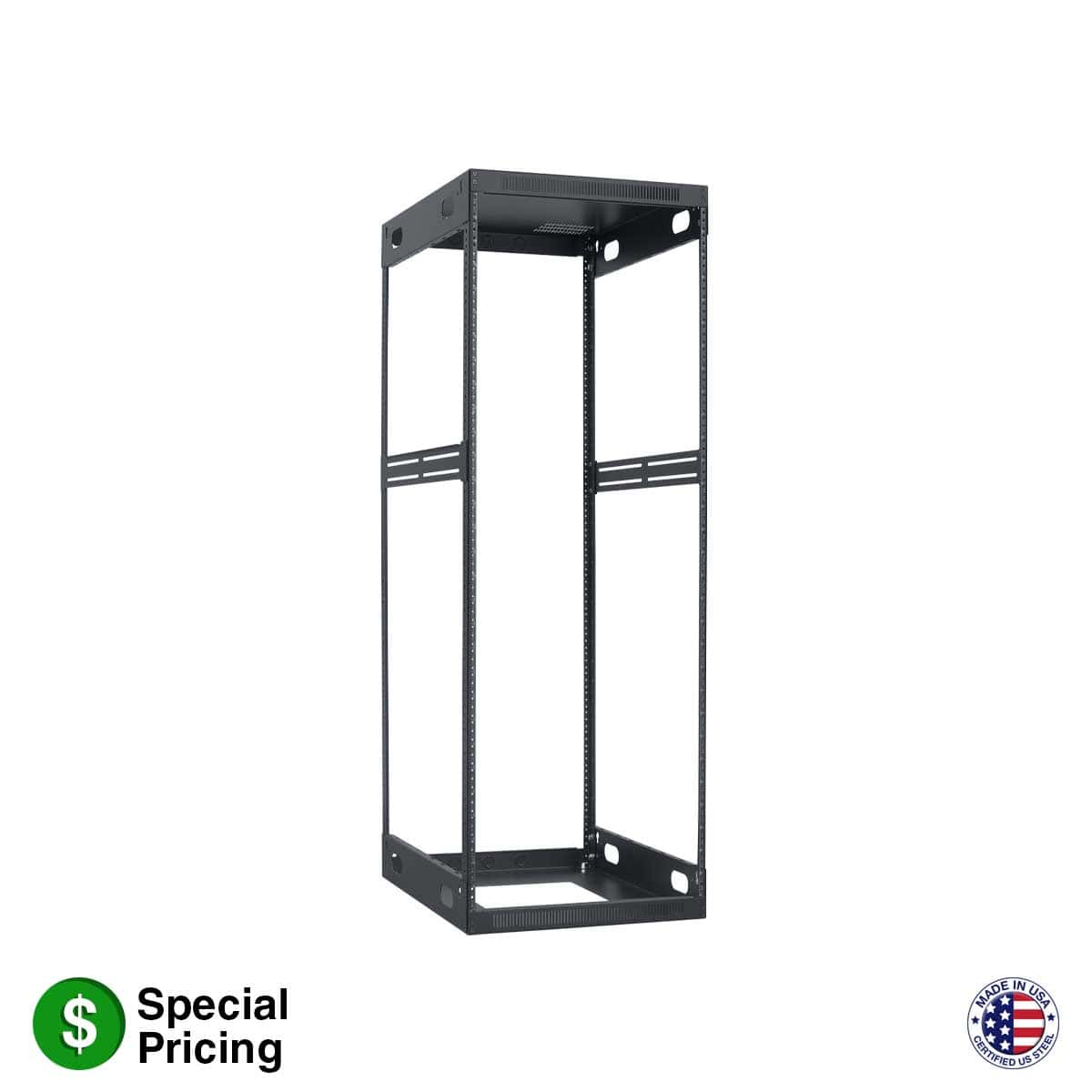

The slim open-frame rack shall be Lowell Model LXR-3026 which shall ship unassembled. Overall measurements shall be 56.34″H x 26.25″D x 19.21″W when set up. Panel space shall be 30 rack units. The rack shall feature corner-post mounting rails of 11-gauge steel and printed with rack unit increments and side support brackets to aid torsional rigidity, and it shall include assembly/panel-mounting hardware. The rack shall be manufactured in the USA using USA-certified steel and have a smooth-black powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
