- Configurable top has 7U opening for 19 in. panels. Solid closure panels included.
- Open sides, X-frame construction, with multiple openings
- Open front (optional door)

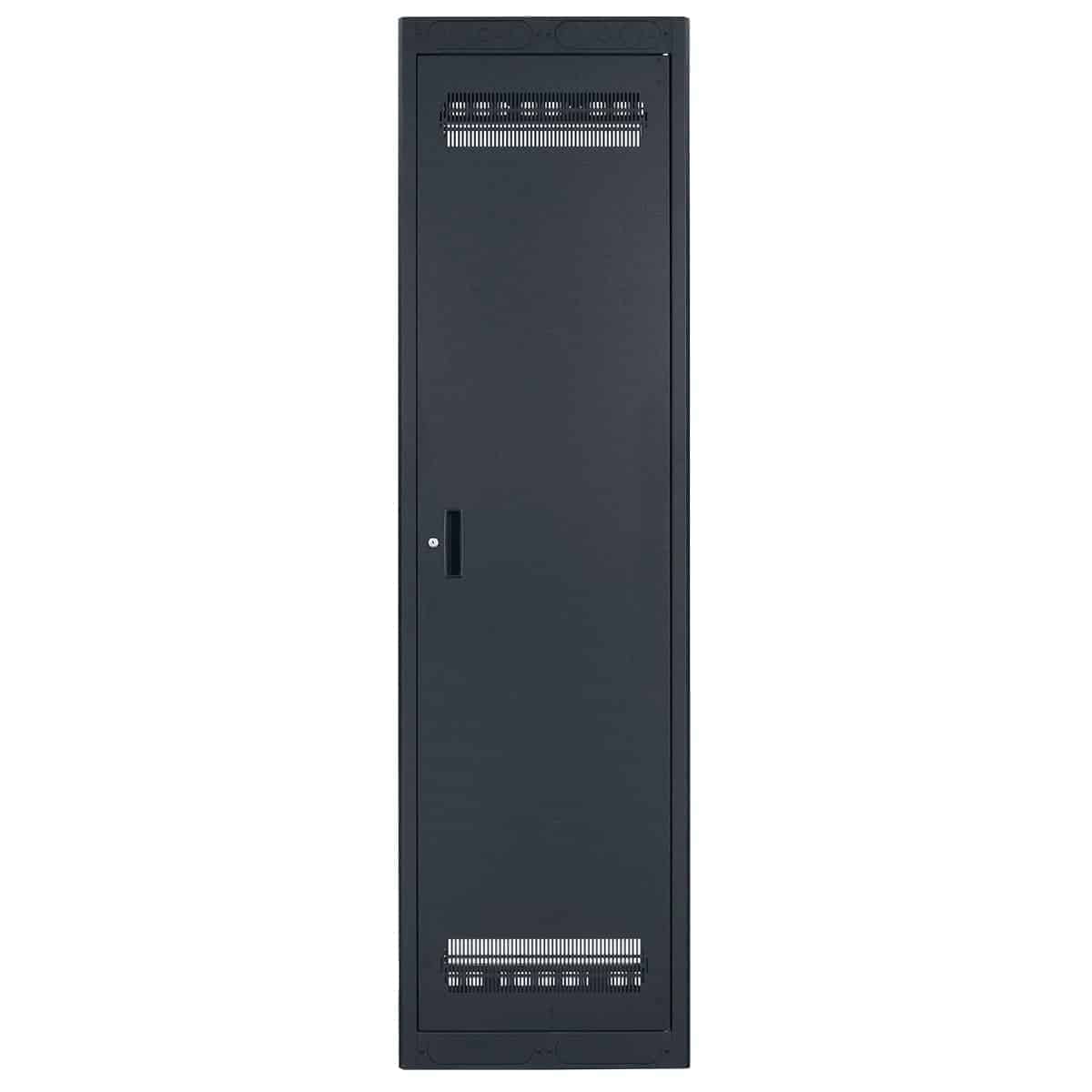

- Rear door with top/bottom vents and key lock
- One-pair fully adjustable rails tapped 10-32 with RU scale
- Cable Management: Multiple lacing points, holes, knockout panels
- Pilot Point screws with captive washers
- Grounding stud
- Threaded inserts (for optional leg levelers)
- Beveled corners
- Black wrinkle powder epoxy finish
- Includes P.E. Certified documentation
- Rack Space: 44U
- Height: 83.125 in.
- Width: 23.06 in.
- Depth: 22.00 in. (19.34 usable)
- UL Listed load capacity 3150 lbs.
- Seismic-Certified load capacity 725-1200 lbs. (See Technical Downloads)
The EIA/TIA/RoHS compliant, seismic-certified gangable rack shall be Lowell Model No. LSGR-4422 which shall include P.E. Certified documentation as specified in the 2009 International Building Code Section 1613, 2010 California Building Code Section 1613 and 2010 California’s Office of Statewide Health Planning and Development. Overall measurements shall be 83.125”H x 22”D x 23.06”W with panel space of 44 rack units. The rack shall include a recessed rear door with vents and key lock; top with 7U opening and compound knockouts; open base with grounding stud and holes for anchor bolts (not included); one pair adjustable mounting rails with printed RU increments; knockout panels with combination knockouts above rear door; blank project panels below rear door; and provisions to mount an optional surface-mount front door (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black wrinkle textured powder epoxy finish. It shall be listed to UL 2416.
