LGTR Series | LGTR-5427 | 54U x 27"D Gangable Rack with Rear Door, 22"W

Name: LGTR Series | LGTR-5427 | 54U x 27"D Gangable Rack with Rear Door, 22"W
SKU: LGTR-5427
Availability: InStock

Special Pricing - While Supplies Last

$3,000.00 MSRP

Call 800-325-9660 for Availability
Recommended Alternative: LGTR-5432

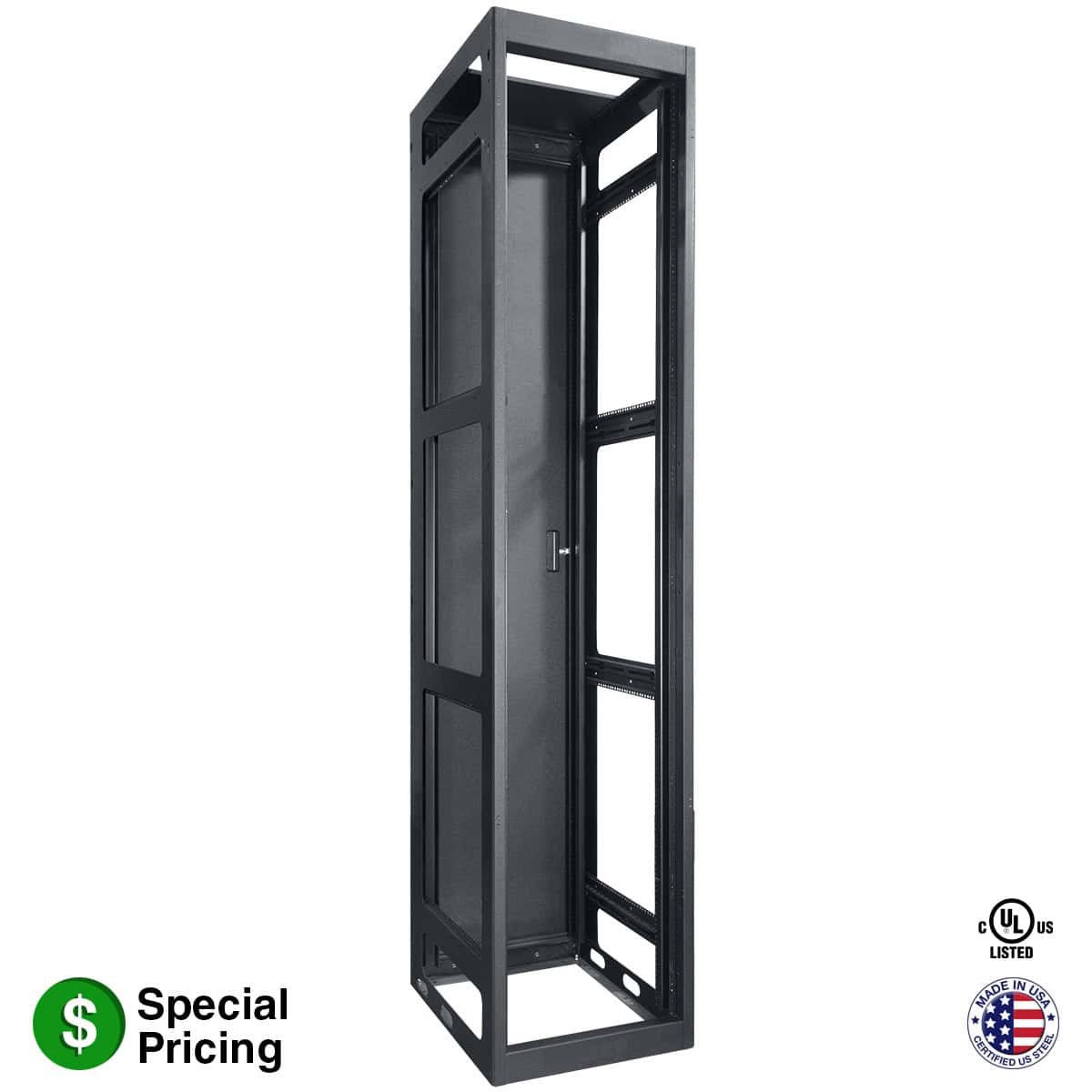

The LGTR rack takes advantage of high ceilings by mounting more equipment in vertical space. The 54U open-frame gangable rack is fully-welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions. Made with USA-certified steel for strength and durability, the rack features adjustable rails, and rear door. An optional front door is also available (order separately).

Add to Favorites

Compare

Configurable top has 13U opening for 19 in. panels
Open sides and front (optional door)
Solid steel rear door with key lock
Two-pairs fully adjustable rails tapped 10-32
Cable Management: Multiple lacing points, holes, knockout panels
Pilot point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black-textured powder-coat finish

Rack Space: 54U
Height: 100.625 in.
Width: 22.00 in.
Depth: 27.00 in. (24.34 usable)
Load capacity 3150 lbs.

Spec Sheet: LGTR-5427
CAD drawings: LGTR-5427
Revit Models: LGTR Series
Install: 20055-FloorRack

TAA compliant
BAA compliant
EIA/TIA compliant
UL 2416 Listed
USA-certified steel
Made in the USA

The EIA/TIA-compliant, UL-Listed gangable equipment rack shall be Lowell Model LGTR-5427, which shall measure 22″W x 27″D x 100.625″H (24.34″ useable depth x 54U useable height). Construction shall be fully-welded 16-gauge steel frame with 14-gauge steel top and bottom reinforced at load-bearing junctions. The rack shall include a solid steel, recessed rear door with keyed lock and two-pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring plus BNC knockouts for UHF/VHF antennas. Top shall feature integral rails with mounting holes tapped 10-32 ready to accept blank panels or optional 19″W accessories. The base shall feature a grounding stud and provisions to add optional leg levelers. The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be Trade Agreement Act (TAA) compliant, Buy American Act (BAA) compliant, and UL 2416 Listed with a load capacity of 3150 lbs.
