- Configurable top has 10U opening for 19 in. panels and accessories
- Open sides and front (optional door)
- Solid steel rear door with keyed lock
- Two-pairs fully adjustable rails tapped 10-32
- Cable Management: Multiple lacing points, holes, knockout panels
- Pilot point screws with captive washers
- Grounding stud
- Threaded inserts (for optional leg levelers)
- Beveled corners
- Black-textured powder-coat finish
- Rack Space: 54U
- Height: 100.625 in.
- Width: 22.00 in.
- Depth: 32.00 in. (29.34 usable)
- Load capacity 3150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- UL 2416 Listed
- USA-certified steel
- Made in USA

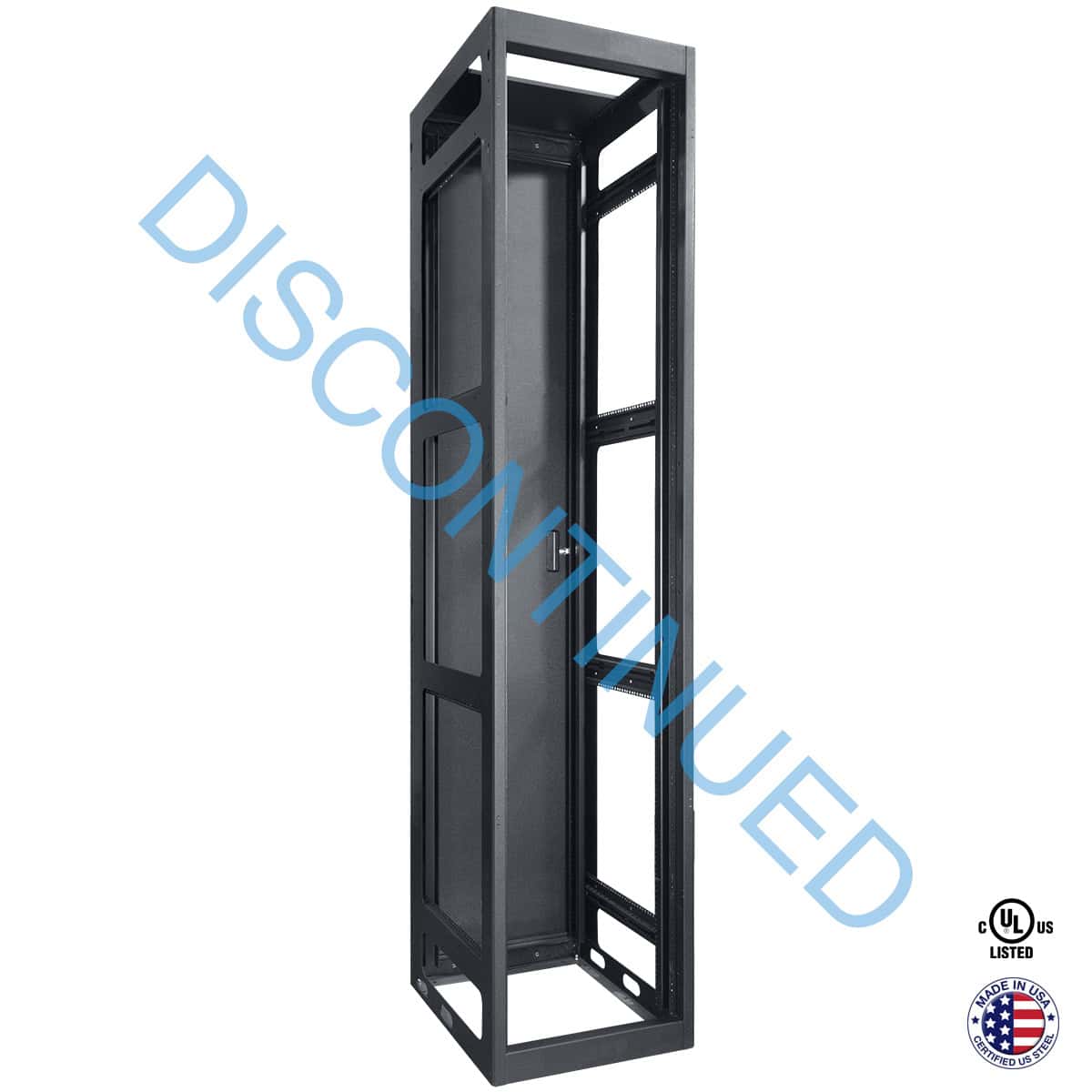

The EIA/TIA-compliant, UL-Listed gangable equipment rack shall be Lowell Model LGTR-5432, which shall measure 22″W x 32″D x 100.625″H (29.34″ useable depth x 54U useable height). Construction shall be fully-welded 16-gauge steel frame with 14-gauge steel top and bottom reinforced at load-bearing junctions. The rack shall include a solid steel, recessed rear door with keyed lock and two-pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring plus BNC knockouts for UHF/VHF antennas. Top shall feature integral rails with mounting holes tapped 10-32 ready to accept blank panels included as shipping stiffeners or optional 19″W accessories. The base shall feature a grounding stud and provisions to add optional leg levelers. The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant, and UL 2416 Listed with a load capacity of 3150 lbs.
