The ACSPR Series with 9 outlets (1 front, 8 rear) features Advanced Multi-Stage Surge Protection with TCR (Triple Clamping Redundant) technology to protect electronics against power surges and spikes up to 72,000A when operating at full capacity. LED status indicators serve to alert users if the unit is compromised and in need of repair/replacement. TCR technology includes a 10 year warranty.

---

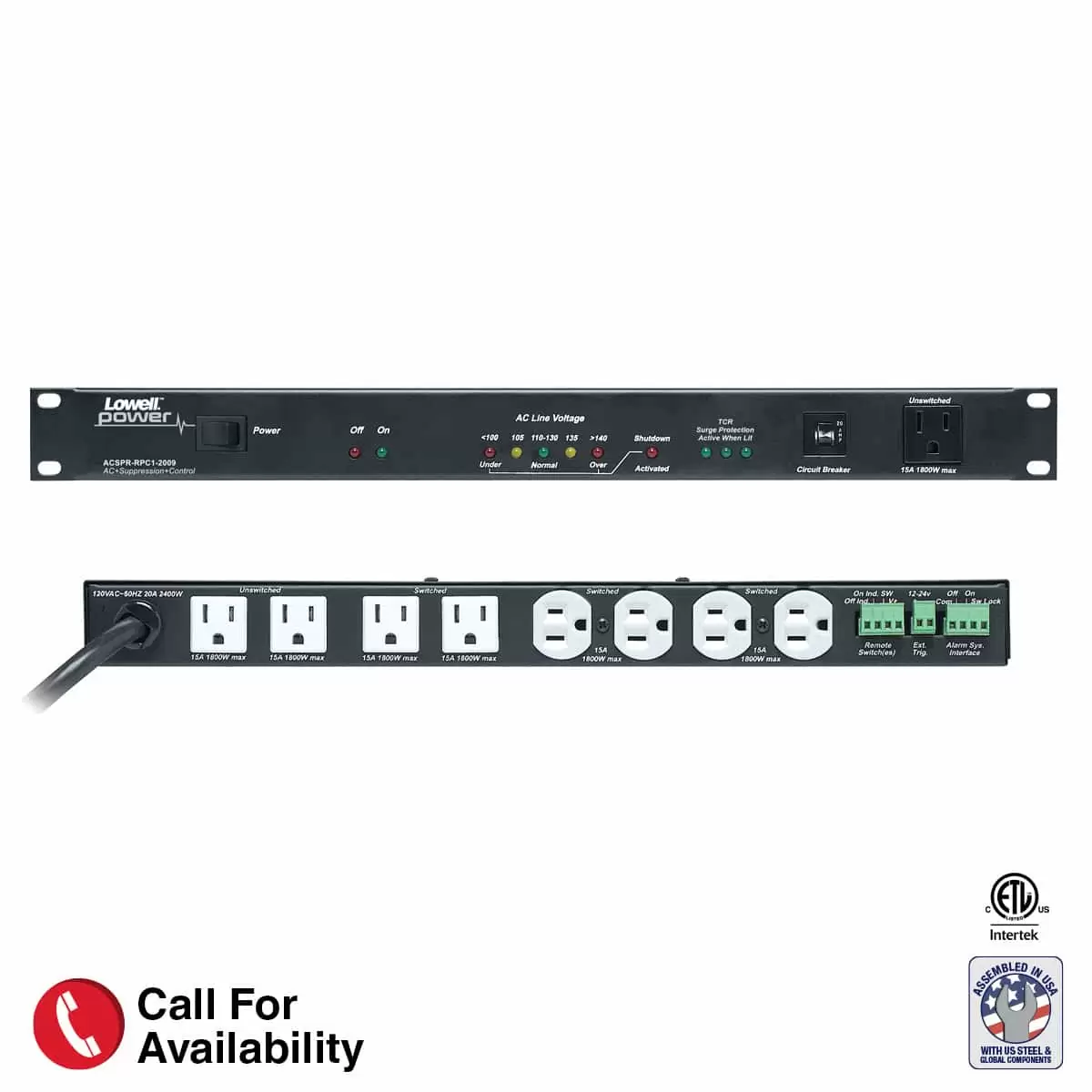

Model ACSPR-RPC1-2009:

• Unit Rating: This PDU has a 20A rating and features a 9 ft. power cord with 20A plug (NEMA 5-20P).
• Outlets: All receptacles are 15A (NEMA 5-15R). Some are controlled by the activation switch.
• Over/Under Voltage Protection: The VTE monitor (Voltage Tolerance Envelope) provides protection against over/under voltage situations. The unit powers off if line voltage exceeds 140V or drops below 100V. Auto reset powers on when line voltage returns to normal.
• Remote Circuitry: This unit can be activated/deactivated by an external remote switch, external trigger voltage, alarm system, or sequencer connected to rear terminal blocks. Order external devices separately.

---
