LGR-3532-LRD - DISCONTINUED

Name: LGR-3532-LRD - DISCONTINUED
SKU: LGR-3532-LRD
Availability: InStock

SEE ALTERNATIVE: LGR-3532

$1,800.00 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: LGR-3532

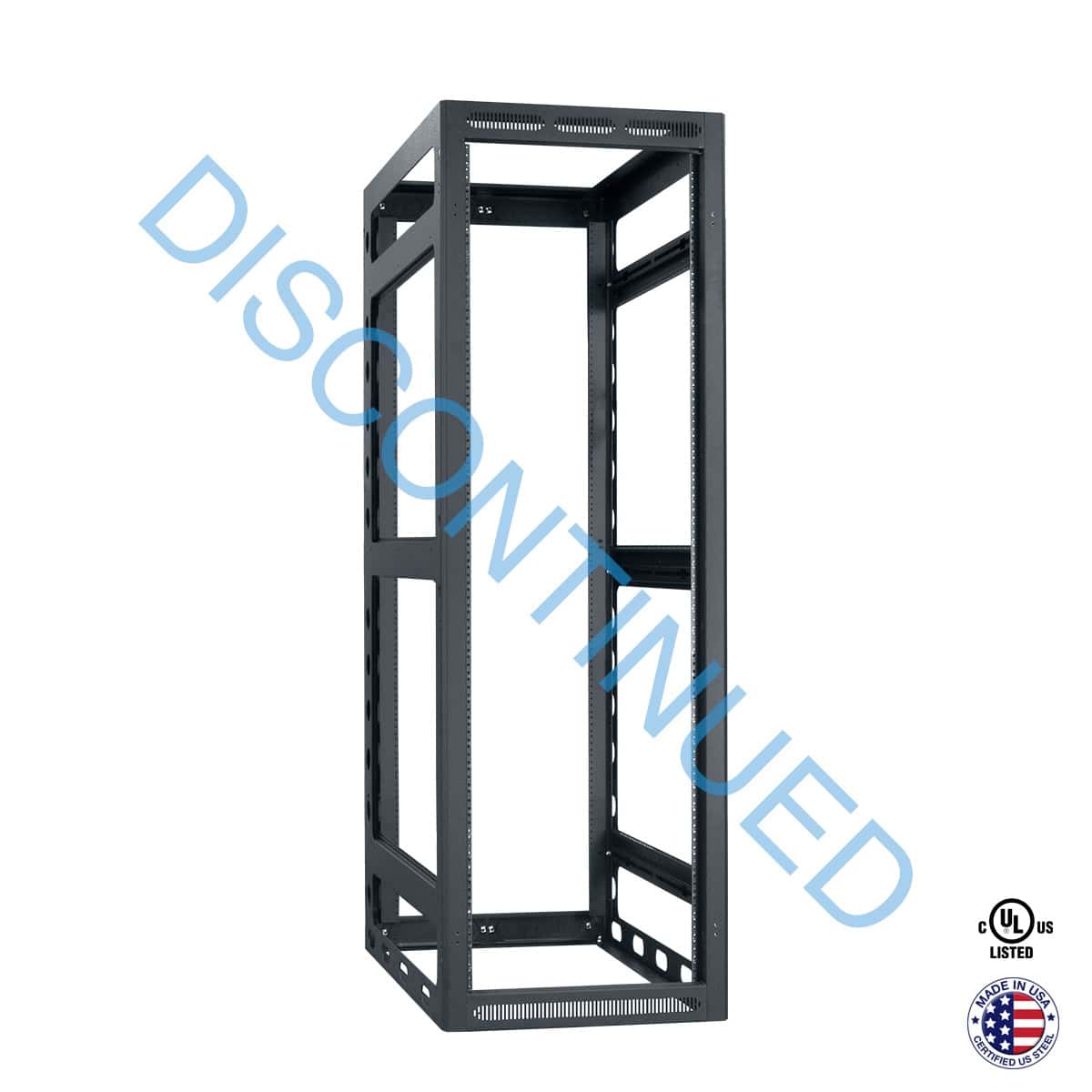

Gangable AV rack with 14-gauge steel base is reinforced at load-bearing junctions for robust support. The rack has a configurable top opening that can be closed with optional 19-inch fan panels for active cooling. The gangable rack features a 23-inch wide footprint and black textured powder coat finish. Optional front door and side panels (order separately).

Product Video

Add to Favorites

Compare

Configurable top has 12U opening for 19 in. panels
Open frame with multiple 2 in. holes on sides for cable runs between racks
Open front (optional door)
Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
Cable Management: Multiple lacing points, holes, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black textured powder coat finish

Rack Space: 35U
Height: 67.375 in.
Width: 23.06 in.
Depth: 32.00 in. (29.34 usable)
Load Capacity: 3150 lbs.

Spec Sheet: 2451 Spec (DISCONTINUED)
CSI 3-part specification sheet: LGR-3P
CAD Drawings: LGR-3532
Revit Models: LGR Series
Install: 20055-FloorRack

The EIA/TIA/RoHS compliant, gangable rack shall be Lowell Model LGR-3532. Overall measurements shall be 67.375″H x 32″D x 23.06″W with panel space of 35 rack units. Load capacity shall be 3150 lbs. The rack shall include a recessed rear door with vents and key lock; top with 12U opening; open base with grounding stud; two pairs adjustable mounting rails with printed RU increments; knockout panels with combination knockouts above/below rear door; and provisions to mount an optional surface-mount front door (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black textured powder coat finish. It shall be listed to UL 2416.

Thermal management
Cable management
Front door: LFD-35 (solid) | LFD-35P (plexiglass) | LFD-35FV (full vent)
Rear door with cable brush panel: RDC-35
Side panels: SDP-3532 (solid) | LGR-SP (vented)
Rack rails: RRD-35 (24U)
Bases (32”D): LMB-32 (mobile) | LSB-32 (stationary)
Rear door (full vent): LRD-35 (35U)
Steel Vent Panels (can be used to close configurable top): SVSP (3U, 4U or 7U)
Power Strips: Hardwired | Cord (Attached), | Cord (Detachable)
19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
