LGR SERIES | LGR-4422 | 44U x 22"D Gangable AV Rack with Rear Door, 23"W - CLOSEOUT

Name: LGR SERIES | LGR-4422 | 44U x 22"D Gangable AV Rack with Rear Door, 23"W - CLOSEOUT
SKU: LGR-4422
Availability: InStock

Special Pricing - While Supplies Last

$1,491.60 MSRP

CLOSEOUT | Call 800-325-9660 for Availability
Recommended Alternative: LGR-4427

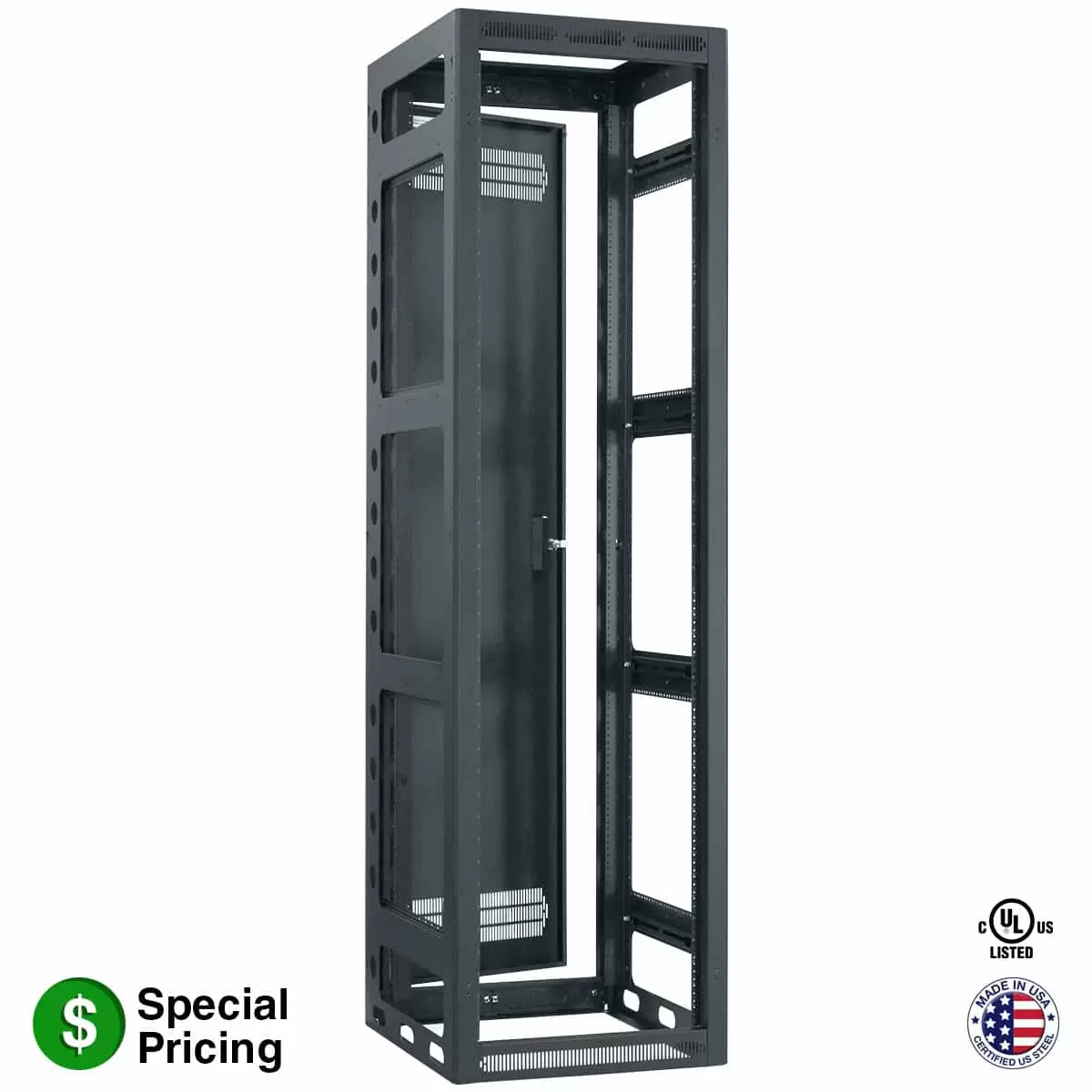

Fully-welded, 16-gauge steel gangable open frame AV rack with 14-gauge steel base is reinforced at load-bearing junctions for robust support. The rack has a configurable top opening that can be closed with optional 19-inch fan panels for active cooling. The gangable rack features a 23-inch wide footprint and black textured powder coat finish. Optional front door and side panels (order separately).

Product Video

Add to Favorites

Compare

Configurable top has 7U opening for 19 in. panels
Open frame with multiple 2 in. holes on sides for cable runs between racks
Open front (optional door)
Rear door with top/bottom vents and key lock
One-pair fully adjustable rails tapped 10-32 (printed RU scale)
Cable Management: multiple lacing points, holes, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black textured powder coat finish

Rack Space: 44U
Height: 83.13 in.
Width: 23.06 in.
Depth: 22.00 in. (19.34 usable)
Load Capacity: 3150 lbs.

Spec Sheet: 2451 Spec (DISCONTINUED)
CSI 3-part specification sheet: LGR-3P
CAD Drawings: LGR-4422
REVIT Models: LGR Series
Install: 20055-FloorRack

The EIA/TIA/RoHS compliant, gangable rack shall be Lowell Model LGR-4422. Overall measurements shall be 83.125″H x 22″D x 23.06″W with panel space of 44 rack units. Load capacity shall be 3150 lbs. The rack shall include a recessed rear door with vents and key lock; top with 7U opening and compound knockouts; open base with grounding stud; one pair adjustable front mounting rails with printed RU increments; knockout panels with combination knockouts above/below rear door; and provisions to mount an optional surface-mount front door or rear rails (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black textured powder coat finish. It shall be listed to UL 2416.

Thermal management
Cable management
Front door: LFD-44 (solid) | LFD-44P (plexiglass) | LFD-44FV (full vent)
Side panels: SDP-4422
Rack rails: RRD-44 (44U)
Bases (22”D): LMSB-22 (shallow mobile) | LSB-22 (stationary) | LSSB-22 (shallow stationary)
Steel Vent Panels (can be used to close configurable top): SVSP (3U, 4U or 7U)
Power Strips: Hardwired | Cord (Attached), | Cord (Detachable)
19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
