LGR-4022 - DISCONTINUED

Name: LGR-4022 - DISCONTINUED
SKU: LGR-4022
Availability: InStock

SEE ALTERNATIVE: LGR-4027

$1,704.00 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: LGR-4027

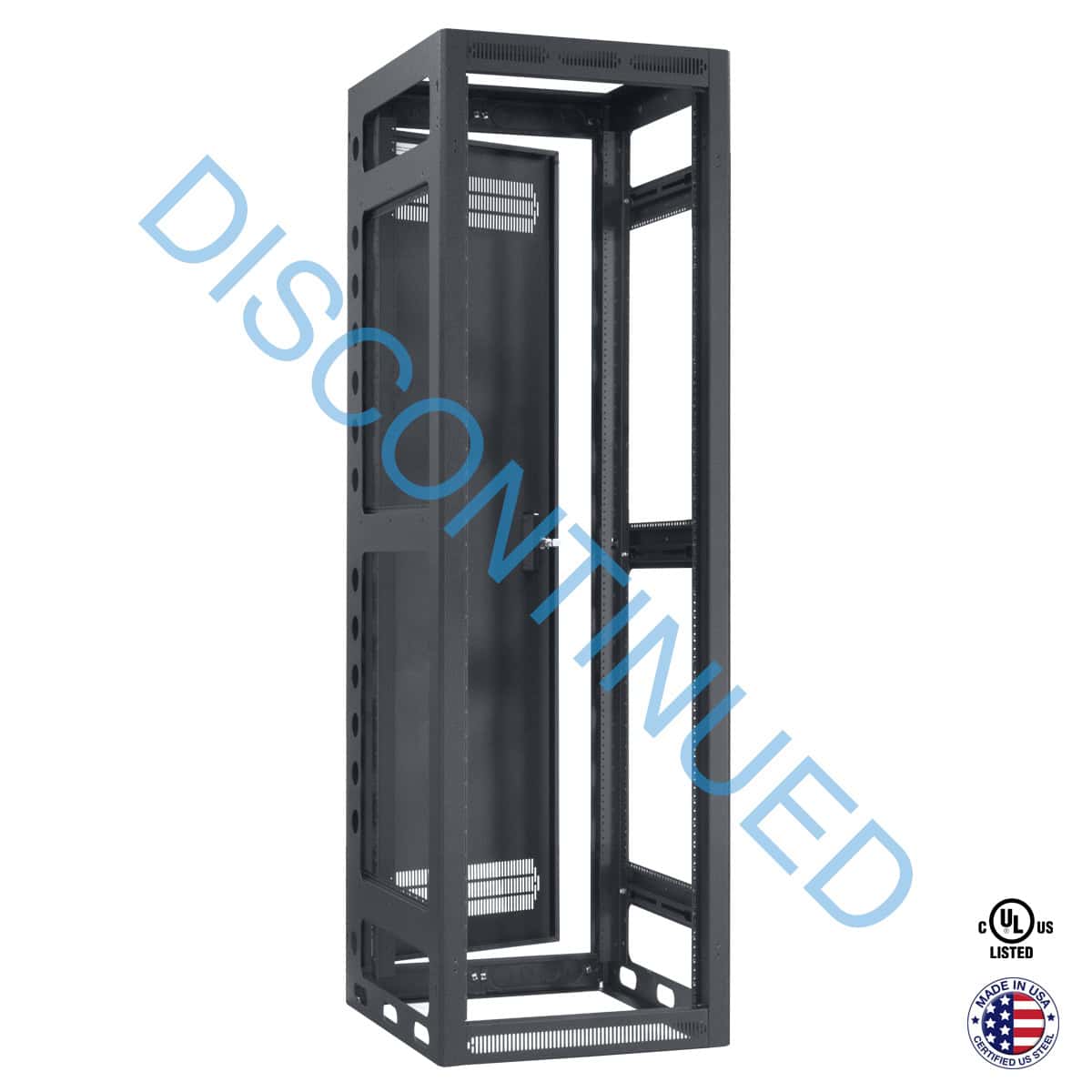

Fully-welded, open frame steel AV rack with 14-gauge base is reinforced at load-bearing junctions for robust support. The rack has a configurable top opening that can be closed with optional 19-inch fan panels for active cooling. The gangable rack features a 23-inch wide footprint and black textured powder coat finish. Optional front door and side panels (order separately).

Product Video

Add to Favorites

Compare

Open frame is cable ready with an array of 2 in. holes, lacing points, knockout panels
Configurable top has 7U opening.
Recessed rear door with top/bottom vents, key lock
Adjustable rails are threaded 10-32, numbered RU scale
Pilot point rack screws with captive washers
Grounding stud
Beveled corners
Durable black textured powder coat finish
Open front is ready to surface-mount (optional) door with left/right swing
Threaded inserts for (optional) leg levelers

Rack space: 40U
Height: 76.125 in.
Width: 23.06 in.
Depth: 22.00 in. (19.34 usable)
UL Listed Load Capacity: 3150 lbs.

Spec Sheet: 1491-LGR4022
CSI 3-part specification sheet: LGR-3P
CAD drawings: LGR-4022
Revit Models: LGR Series
Install: 20055-FloorRack

The EIA/TIA/RoHS compliant, gangable rack shall be Lowell Model No. LGR-4022. Overall measurements shall be 76.125″H x 22″D x 23.06″W with panel space of 40 rack units. Load capacity shall be 3150 lbs. The rack shall include a recessed rear door with vents and key lock; top with 7U opening and compound knockouts; open base with grounding stud; one pair adjustable mounting rails with printed RU increments; knockout panels with combination knockouts above/below rear door; and provisions to mount an optional surface-mount front door or rear rails (ordered separately). The rack shall be manufactured in the U.S.A. with certified U.S. steel and have a black textured powder coat finish. It shall be listed to UL 2416.

Thermal management
Cable management
Front door: LFD-40 (solid) | LFD-40P (plexiglass) | LFD-40FV (full vent)
Side panels: SDP-4022
Rack rails: RRD-40 (40U)
Bases (22”D): LMSB-22 (shallow mobile) | LSB-22 (stationary) | LSSB-22 (shallow stationary)
Steel Vent Panels (can be used to close configurable top): SVSP (3U, 4U or 7U)
Power Strips: Hardwired | Cord (Attached), | Cord (Detachable)
19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
