- Configurable top has 17U opening for 19 in. panels
- Open sides and front (optional door)
- Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
- Cable Management: multiple lacing points, holes, knockout panels
- Pilot point screws with captive washers
- Grounding stud
- Threaded inserts (for optional leg levelers)
- Beveled corners
- Black-textured powder-coat finish
- Rack Space: 44U
- Height: 83.125 in.
- Width: 22.00 in.
- Depth: 36.00 in. (33.34 usable)
- Load Capacity: 3150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- UL 2416 Listed
- USA-certified steel
- Made in USA

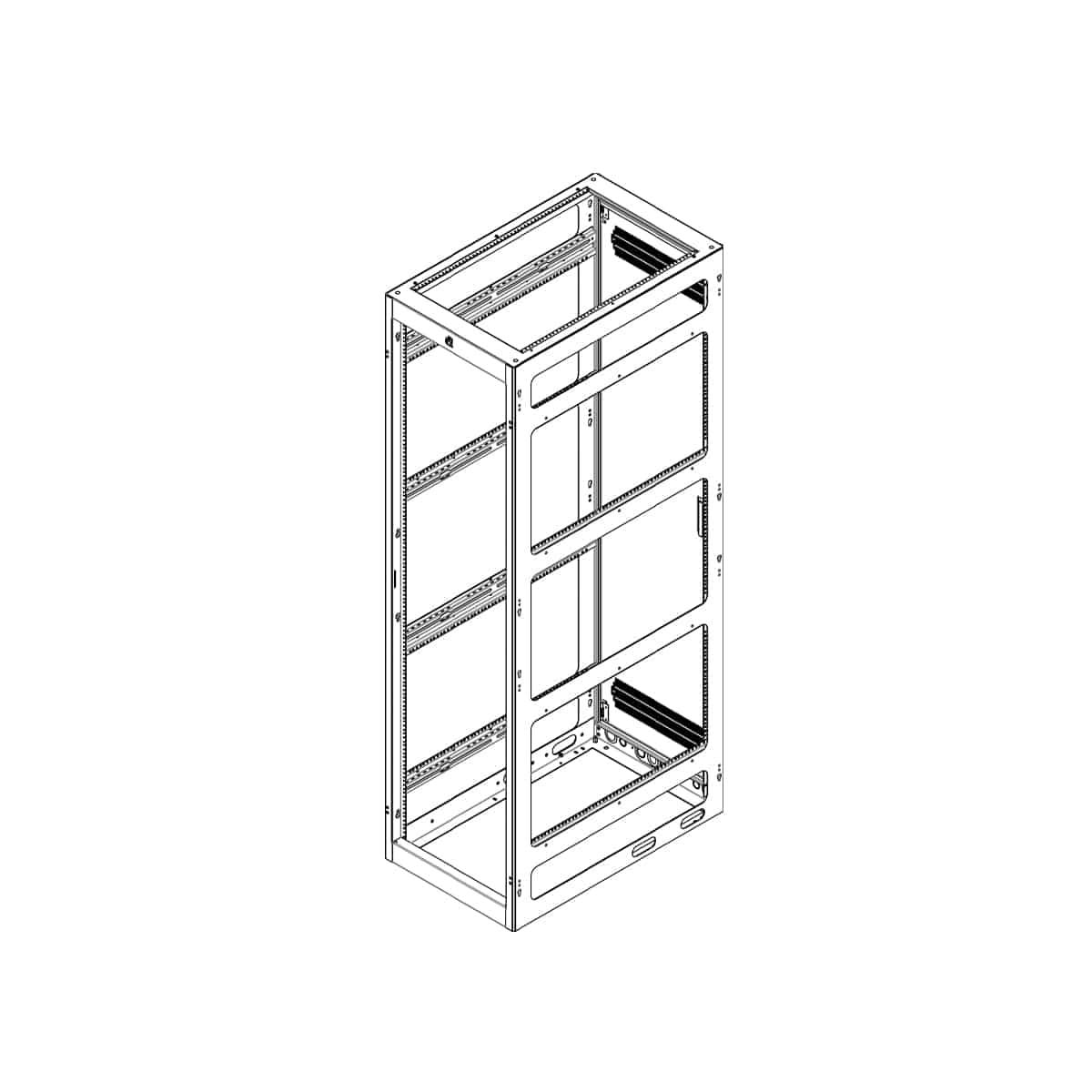

The EIA/TIA-compliant, gangable equipment rack shall be Lowell Model LGNR-4436, which shall measure 22″W x 36″D x 83.125″H (44U). Construction shall be fully-welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions. The rack shall include two-pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature combination knockouts (1/2″-3/4″, 1/2″-1″, 3/4″-1″, 1″-1-1/2″ and 1″-2″ KOs) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall have integral rails with mounting holes tapped 10-32 to accept 19″W solid panels optional accessories. The base shall include a grounding stud and provisions to accept leg levelers (optional) or anchor bolts (by others). The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be UL 2416 Listed, Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant.
