- For use with LGNR and LGVR Series racks
- Fully-welded 14-gauge steel construction
- Black wrinkle powder epoxy finish
- Center opening for cable management
- Side pass-through openings
- Hardware for bolt-on installation
- 3 in. swivel casters (1400 lbs. load rating, increases rack height 1.25 in.)
SPEC SHEETS:
CAD DRAWINGS:
INSTRUCTIONS:

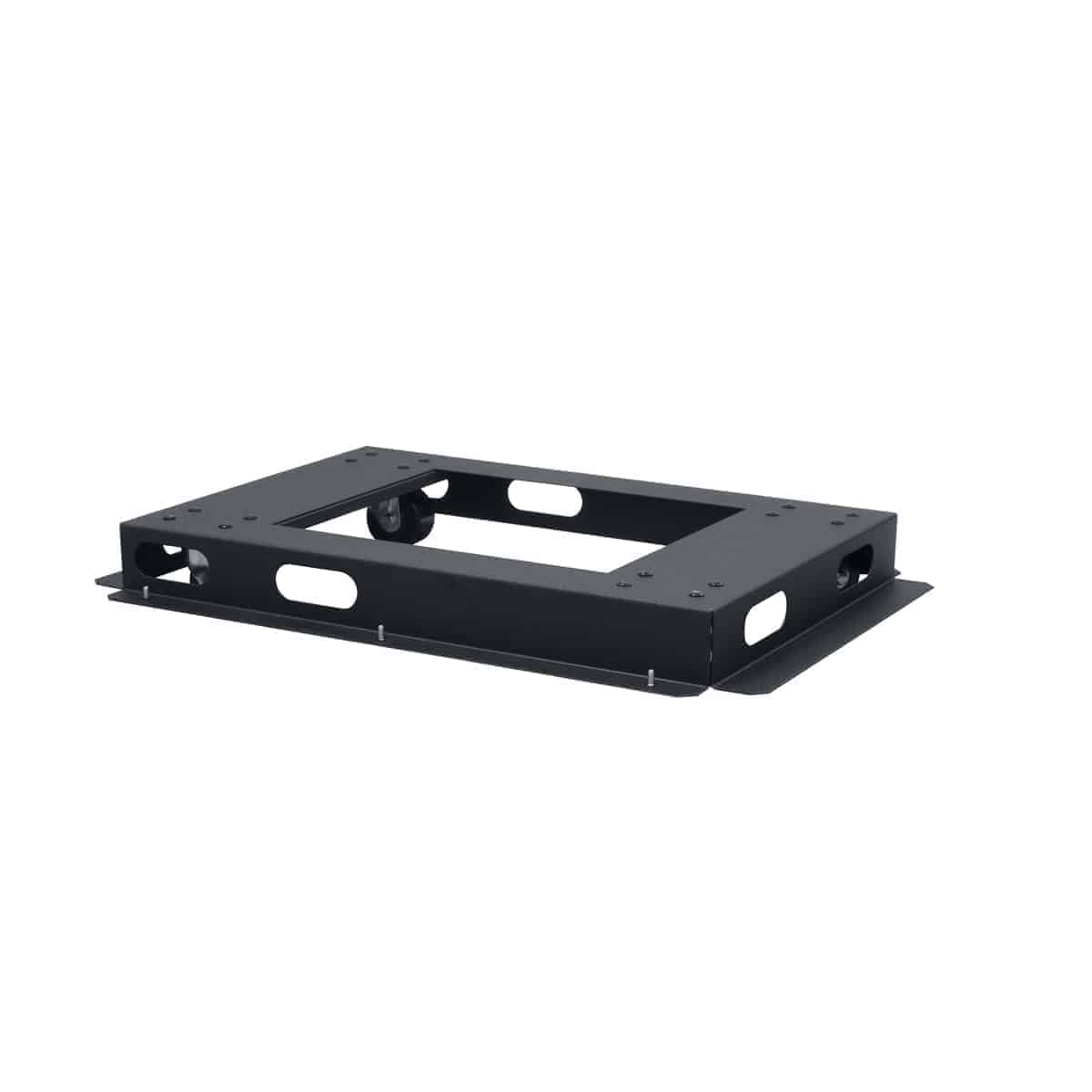

The rack’s mobile base shall be Lowell Model ________, which shall be of an inner platform design that mounts inside the rack frame, adding a floor positioned flush to bottom rack space. Construction shall be 14-gauge welded steel with a center opening and black wrinkle powder epoxy finish. Side openings for cable pass-through. Four heavy-duty (3 in.) non-locking swivel casters shall be positioned inside the platform providing a total load rating of 1400 lbs. Increase in overall rack height shall be 1.25 inches. Mounting hardware shall be included.
