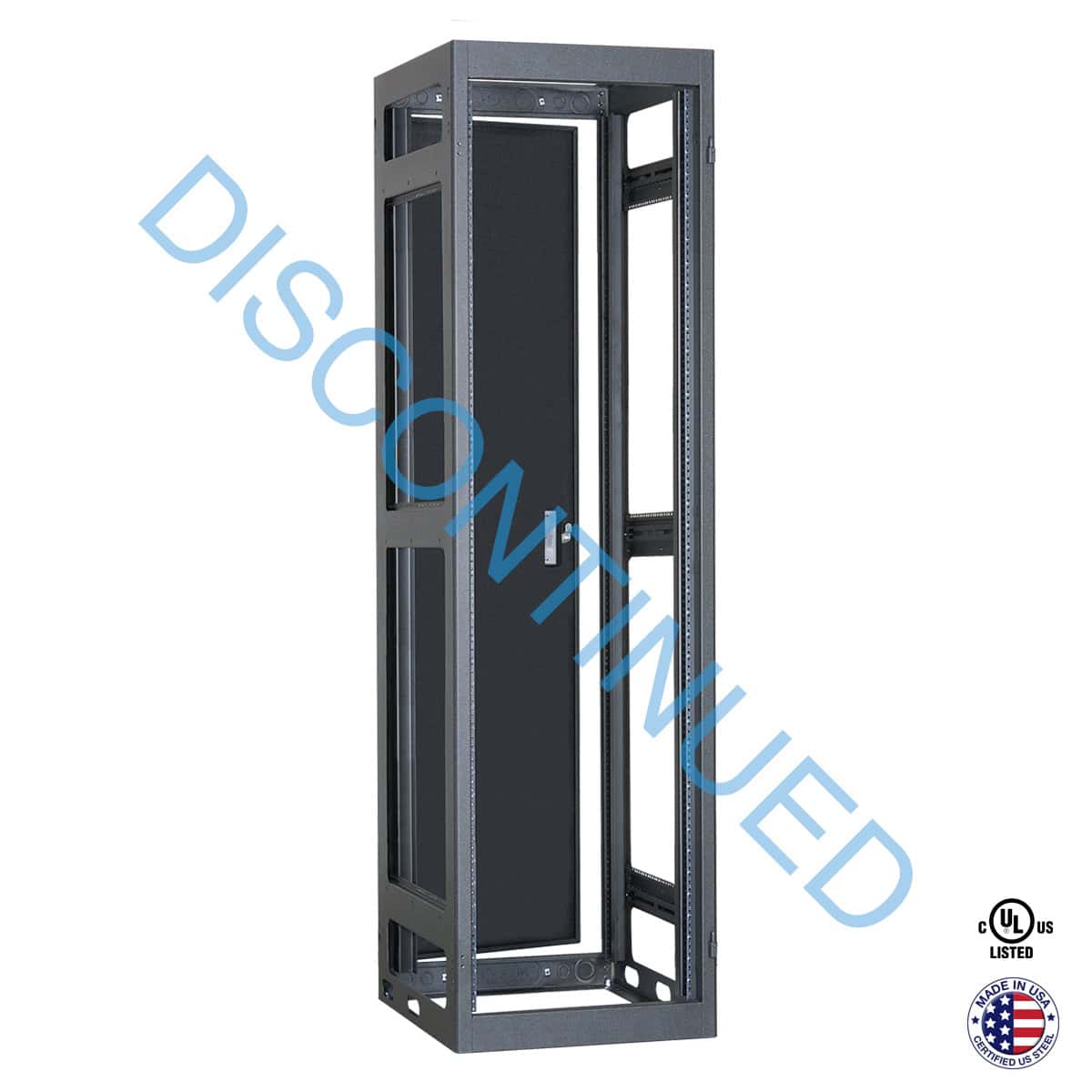

LGNR - Narrow gangable rack cable run opening

LGNR-4036 - DISCONTINUED

SEE ALTERNATIVE: LGR-4036

$1,000.00 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: LGR-4036

With a 22-inch wide footprint, LGNR Series gangable racks have a slightly narrower footprint than Lowell's LGR Series racks. LGNR racks are fully welded, certified U.S. steel with 16-gauge steel frame, seamless side frame construction, and 14-gauge steel top and base reinforced at load-bearing junctions for durable strength. The rack can be ordered with or without a rear door. An optional front door is also available (order separately). NOTE: Closeout model.

Add to Favorites

Compare

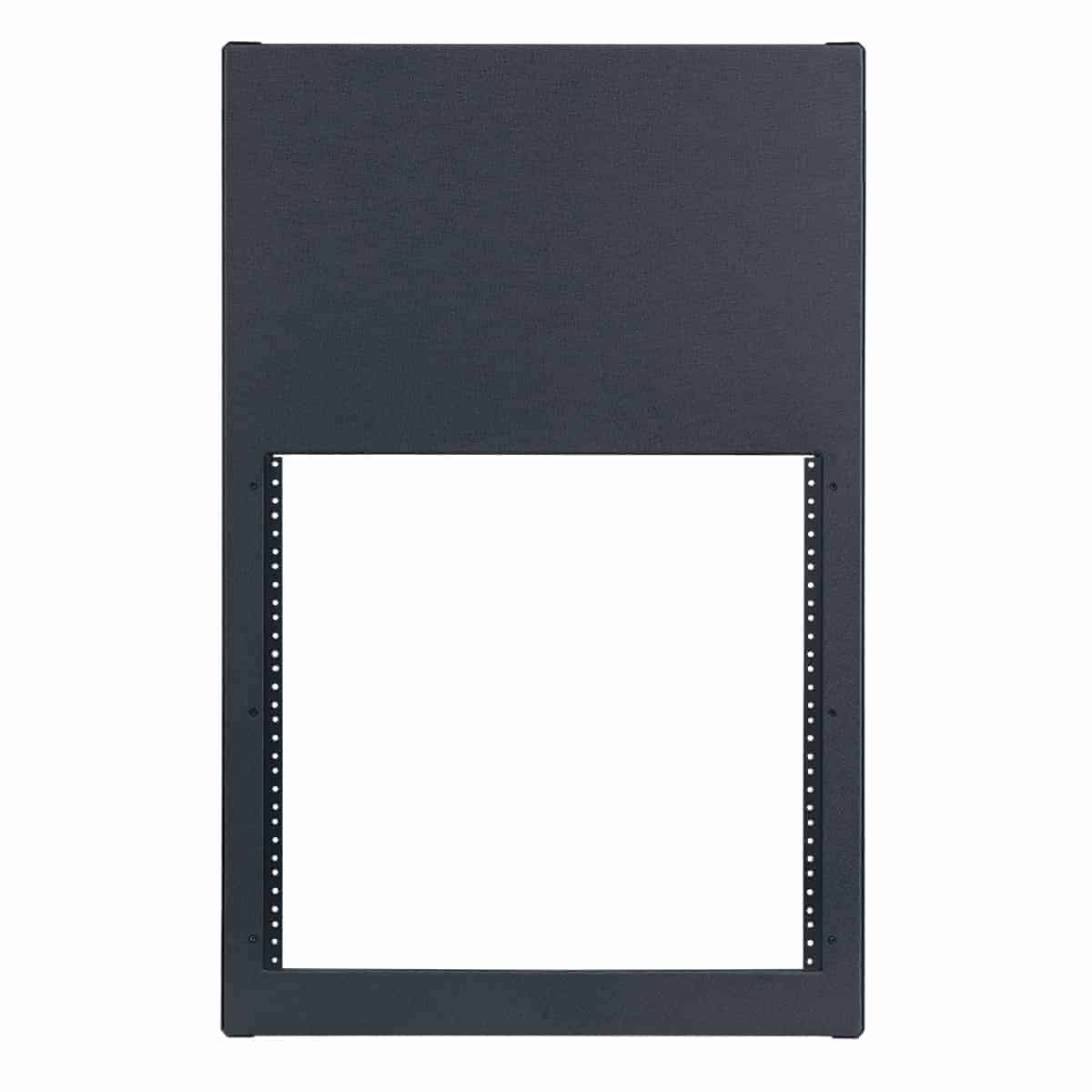

Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
Open sides and front (optional door)
Recessed solid steel rear door with handle and keyed lock
Two pair fully adjustable rails tapped 10-32 with printed RU scale
Cable Management: Multiple lacing points, holes, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 40U
Height: 76.125 in.
Width: 22.00 in.
Depth: 36.00 in. (33.34 usable)
Load Capacity: 3150 lbs.

Spec Sheet: 1233-LGNR4036
CAD drawings: LGNR-4036
Revit Models: LGNR Series
Install: 20055-FloorRack

The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model LGNR-4036, which shall measure 22″W x 36″D x 76.125″H (40U). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions and black wrinkle textured powder epoxy finish. The rack shall include a solid steel rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall have integral rails with mounting holes tapped 10-32 to accept 19″W solid panels included as shipping stiffeners or optional accessories. The base shall include a grounding stud and provisions to accept optional leg levelers or anchor bolts (not included).

Thermal management
Cable management
Front door: LFD-40 (solid) | LFD-40P (plexiglass) | LFD-40FV (full vent)
Side panels: SDP-4036
Rack rails: RRN-40 (40U)
Base: LMNB-36 (36″D mobile)
Power Strips: Hardwired | Cord (Attached), | Cord (Detachable)
19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)

Model No.	Rear Door	Price	Quantity
LGNR-4036	with rear door	$1,000.00 MSRP		Add to Cart Log in to place an order.

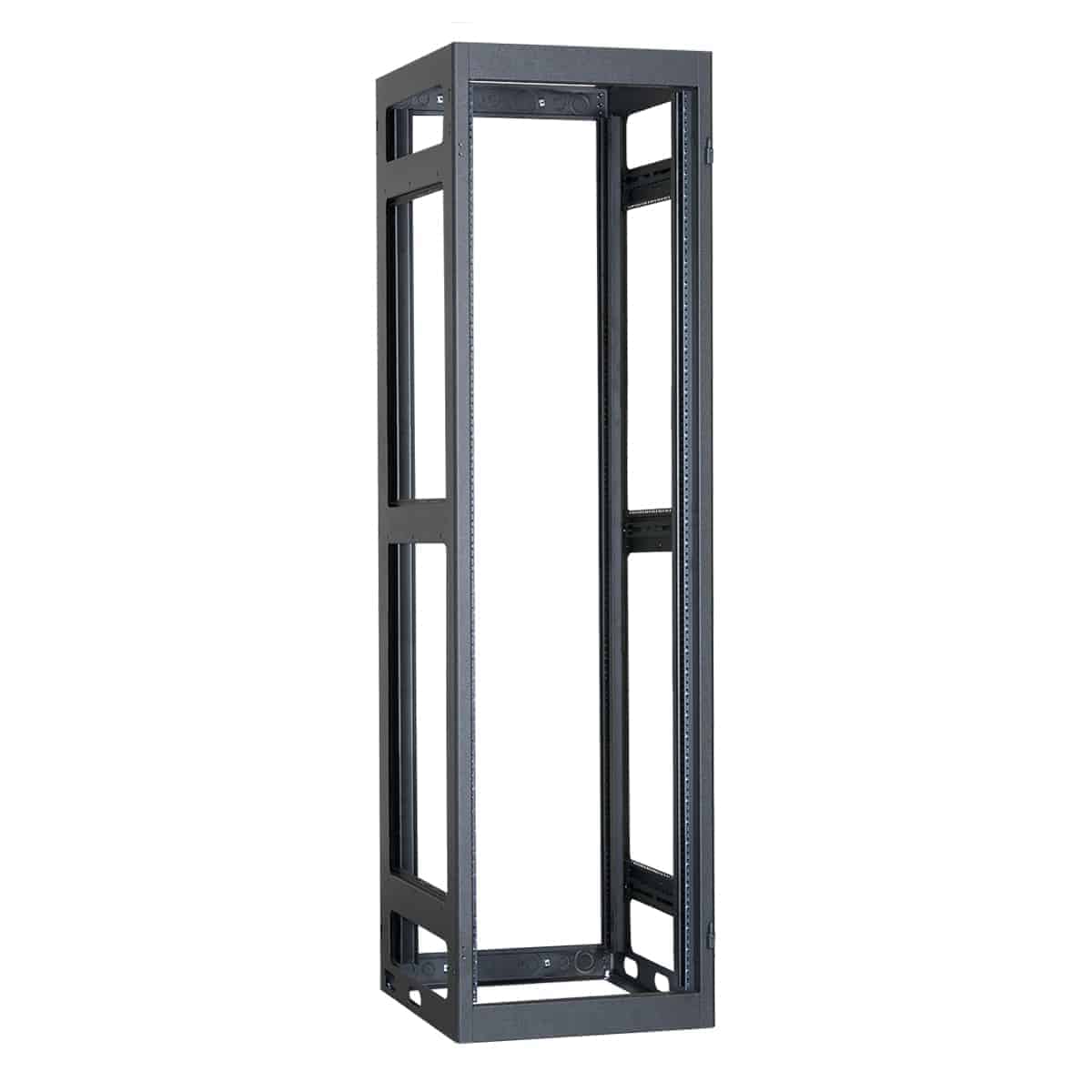

LGNR-4036-LRD	less rear door	$1,000.00 MSRP		Add to Cart Log in to place an order.
