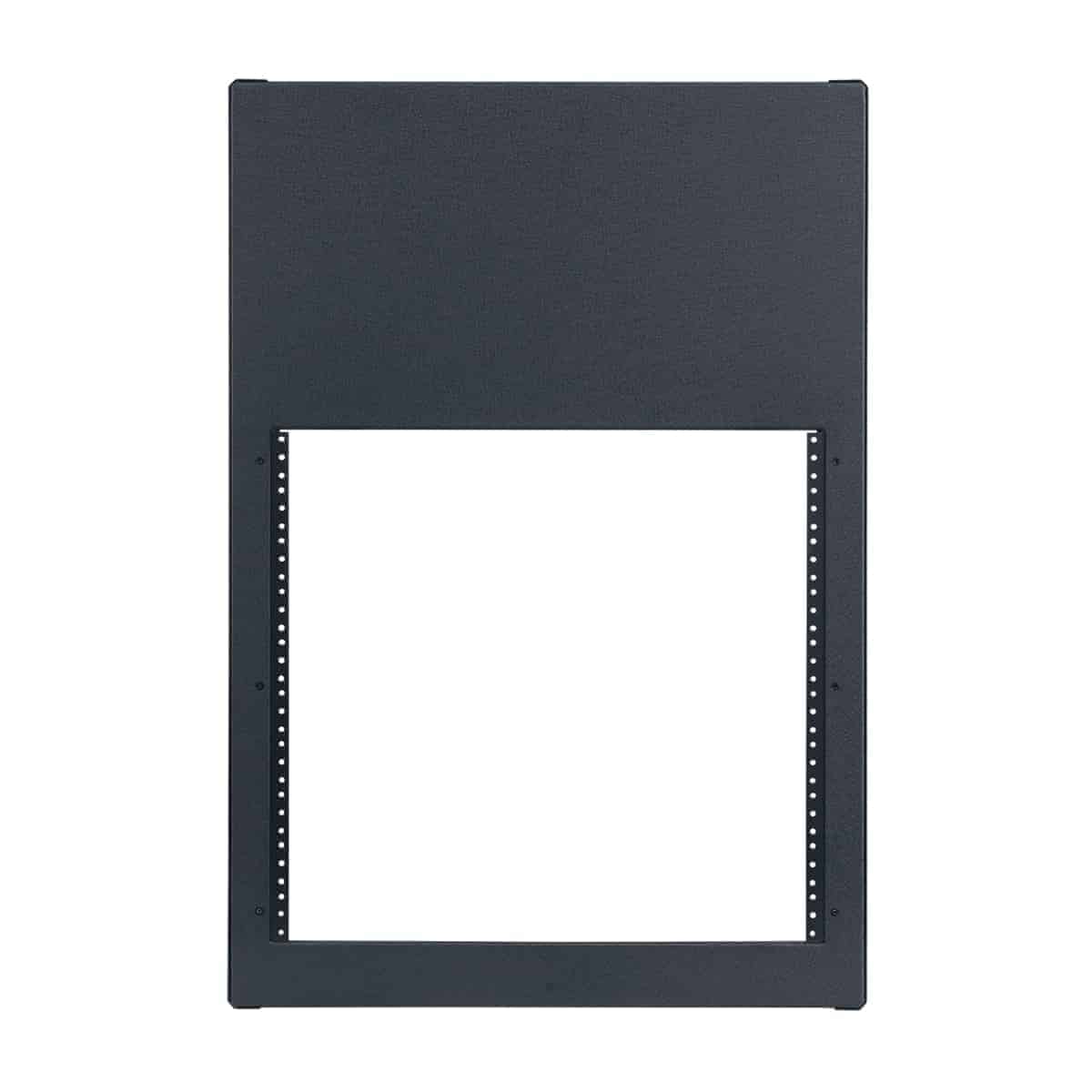

- Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
- Open sides and front (optional door)
- Recessed solid steel rear door includes handle and keyed lock
- Two pair fully adjustable rails tapped 10-32 with printed RU scale
- Cable Management: Multiple lacing points, holes, knockout panels
- Pilot Point screws with captive washers
- Grounding stud
- Threaded inserts (for optional leg levelers)
- Beveled corners
- Black wrinkle textured powder epoxy finish
- Rack Space: 40U
- Height: 76.125 in.
- Width: 22.00 in.
- Depth: 32.00 in. (29.34 usable)
- Load capacity 3150 lbs.
The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model No. LGNR-4032, which shall measure 22″W x 32″D x 76.125″H (40U). The rack shall be listed to UL 2416 in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions and have a black wrinkle textured powder epoxy finish. The rack shall include a solid steel rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall have integral rails with mounting holes tapped 10-32 to accept 19″W solid panels included as shipping stiffeners or optional accessories. The base shall include a grounding stud and provisions to accept leg levelers (optional) or anchor bolts (by others).
