- Configurable top has 15U opening for 19 in. panels.
- Open sides
- Open front (optional door)
- Recessed solid steel rear door includes handle and keyed lock
- Two-pair fully adjustable rails tapped 10-32 with printed RU scale

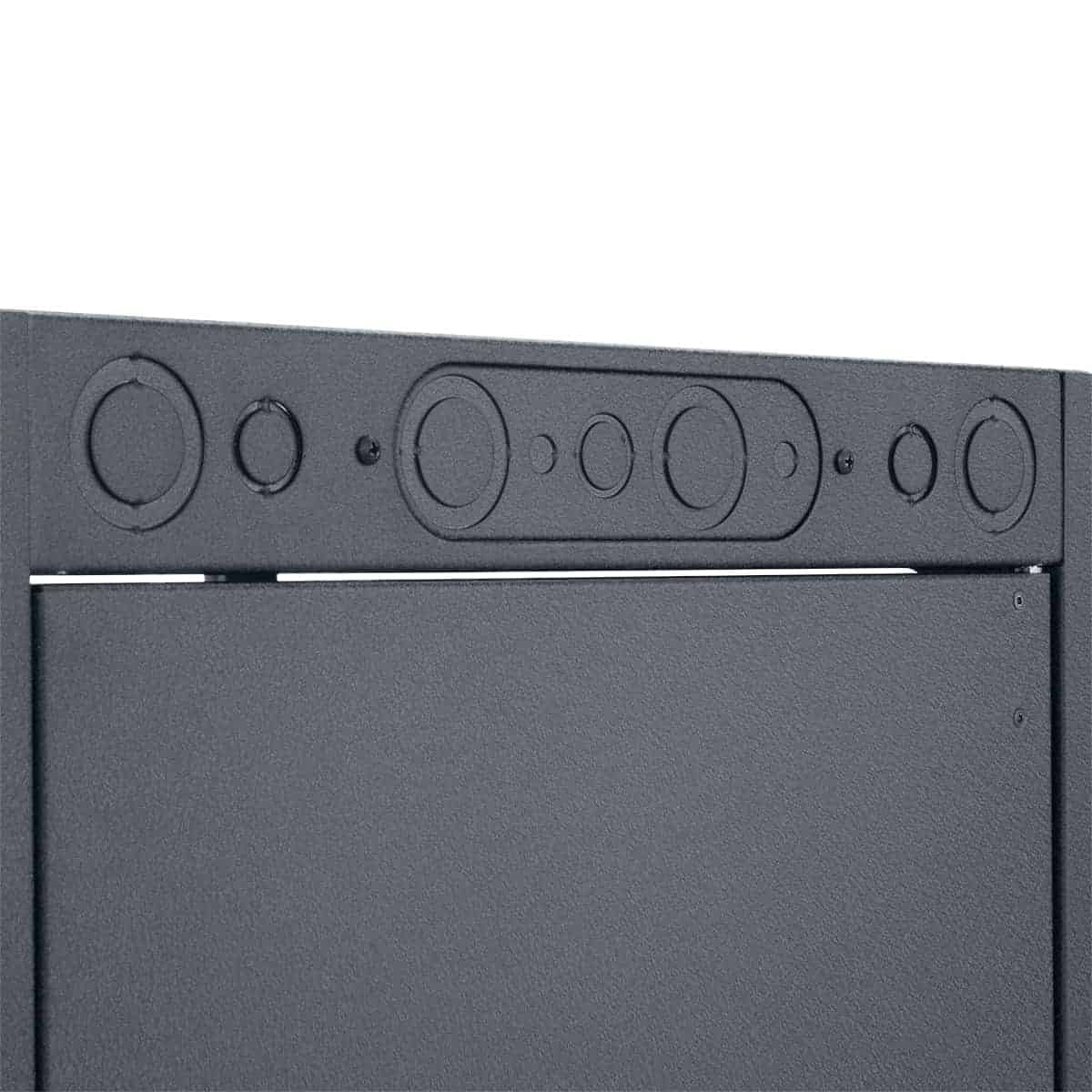

- Cable Management: multiple lacing points, holes, knockout panels
- Pilot Point screws with captive washers
- Grounding stud
- Threaded inserts (for optional leg levelers)
- Beveled corners
- Black wrinkle textured powder epoxy finish
- Rack Space: 24U
- Overall Height: 48.125 in.
- Overall Width: 22.00 in.
- Overall Depth: 32.00 in.
- Useable Depth: 29.34 in.
- Load capacity 3150 lbs.

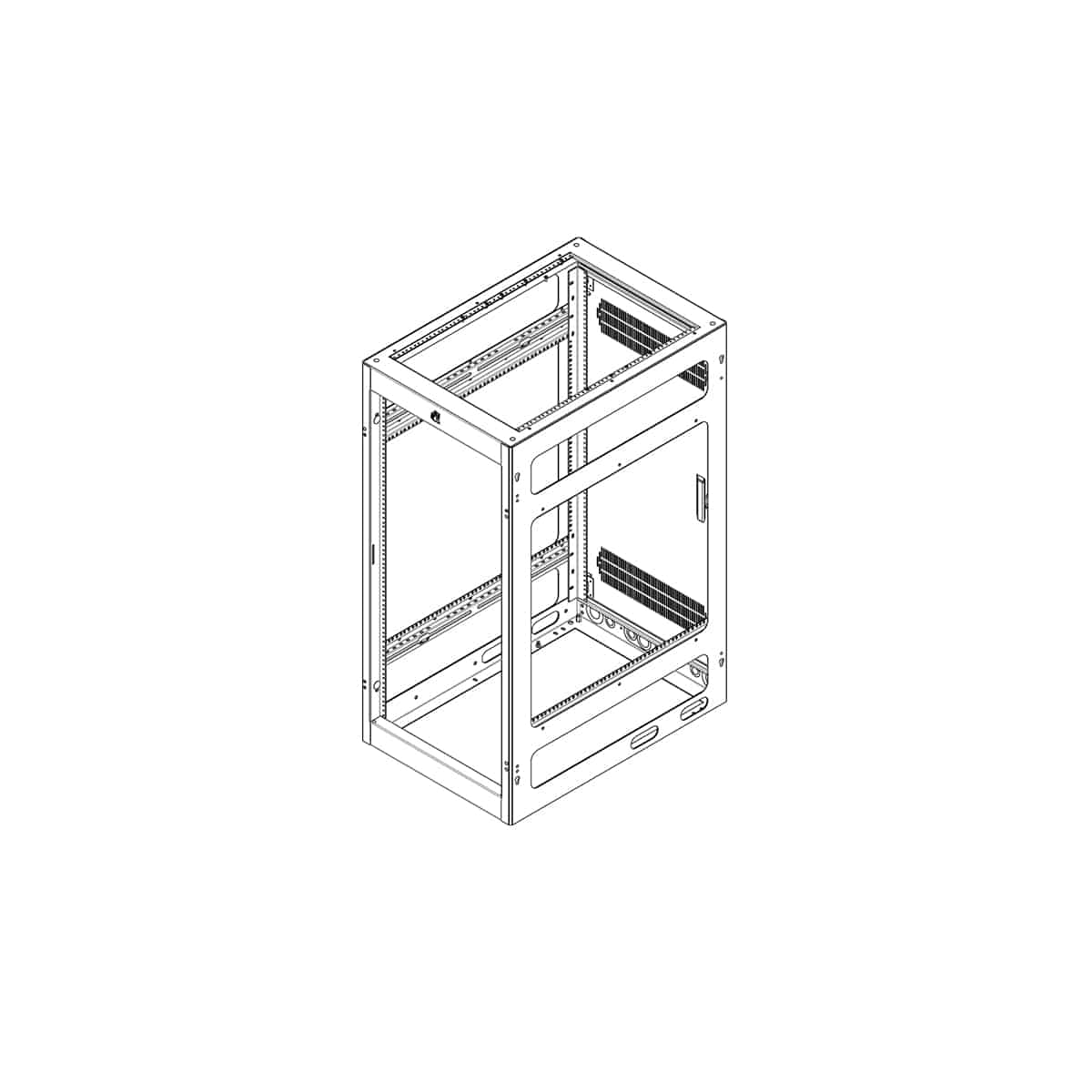

The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model LGNR-2432, which shall measure 22″W x 32″D x 48.13″H (24U). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at loadbearing junctions and have a black wrinkle powder epoxy finish. The rack shall include a solid steel rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall feature a 15U opening and includes rails with mounting holes tapped 10-32 to accept 19″W solid panels or optional accessories. The base shall include a grounding stud and provisions to accept optional leg levelers or anchor bolts.
