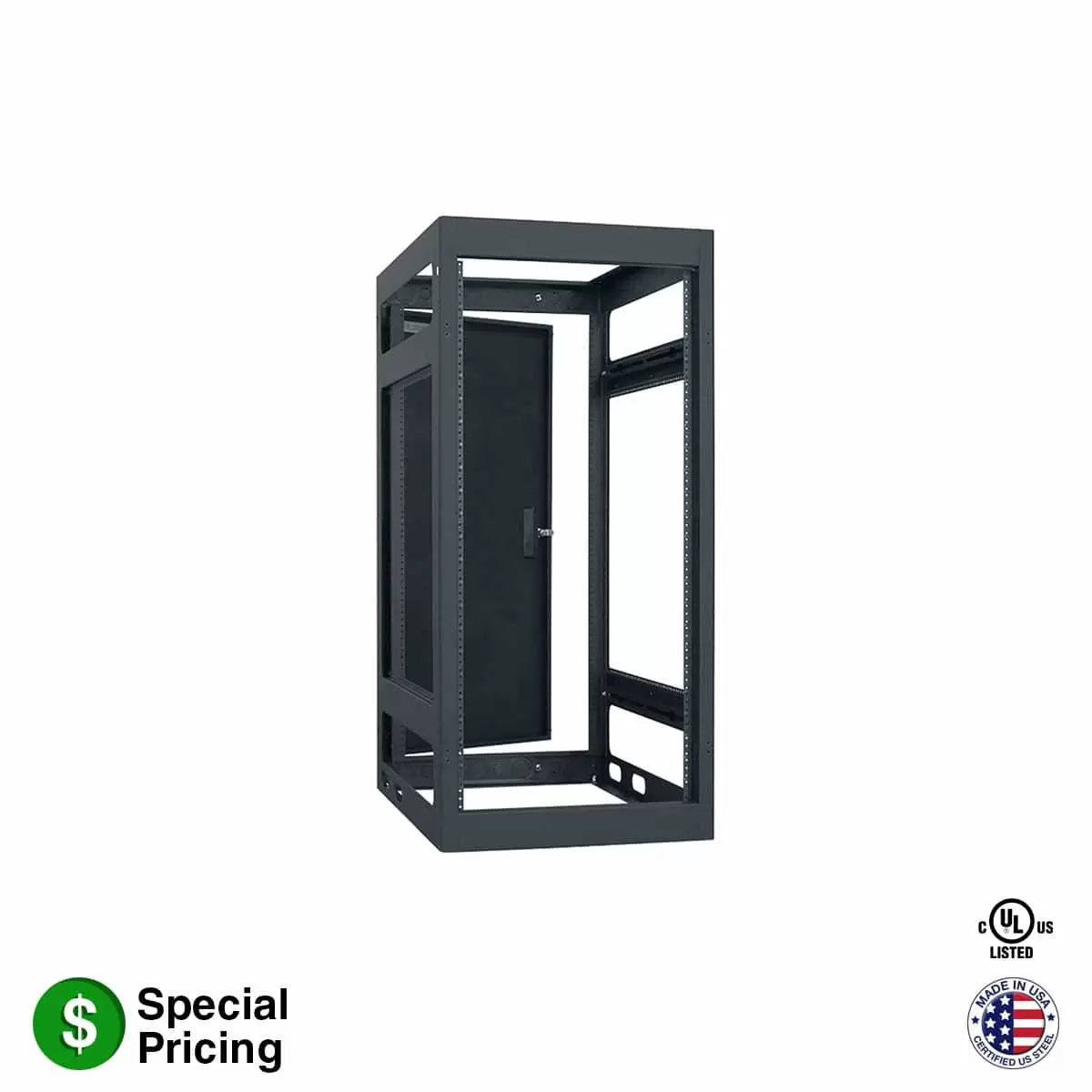

LGNR SERIES | LGNR-2427 | 24U x 27"D Gangable AV Rack with Rear Door, 22"W

Name: LGNR SERIES | LGNR-2427 | 24U x 27"D Gangable AV Rack with Rear Door, 22"W
SKU: LGNR-2427
Availability: InStock

Special Pricing - While Supplies Last

$824.00 MSRP

Call 800-325-9660 for Availability
Recommended Alternative: LGR-2427

With a 22-inch wide footprint, LGNR Series open frame gangable AV racks have a slightly narrower footprint than Lowell's LGR Series. LGNR racks are fully welded, certified U.S. steel with 16-gauge steel frame, seamless side frame construction, and 14-gauge steel top and base reinforced at load-bearing junctions for durable strength. Includes rear door. Optional front door (order separately).

Add to Favorites

Compare

Configurable top has 10U opening for 19 in. panels.
Open sides and front (optional door)
Available with or without rear door
Two-pair fully adjustable rails tapped 10-32 with printed RU scale
Cable Management: Multiple lacing points, holes, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 24U
Height: 48.13 in.
Width: 22.00 in.
Depth: 27.00 in. (24.34 usable)
Load Capacity: 3150 lbs.

Spec Sheet: 1231-LGNR2427
CAD drawings: LGNR-2427
Revit Models: LGNR Series
Install: 20055-FloorRack

The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model LGNR-2427, which shall measure 22″W x 27″D x 48.13″H (24U). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced at load-bearing junctions and have a black wrinkle textured powder epoxy finish. The rack shall include a rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature removable knockout panels and combination knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring, and BNC knockouts for UHF/VHF antenna. The top shall feature a 10U opening and have integral rails with mounting holes tapped 10-32 to accept 19″W solid panels or optional accessories. The base shall include a grounding stud and provisions to accept leg levelers (optional) or anchor bolts (by others).

Thermal management
Cable management
Front door: LFD-24 (solid) | LFD-24P (plexiglass) | LFD-24FV (full vent)
Side panels: SDP-2427
Rack rails (24U): RRN-24
Mobile base: LMNB-27
Power Strips: Hardwired | Cord (Attached), | Cord (Detachable)
19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
