Mono autoformer attenuator, 100W, 1-gang

KL100-DW: Attenuator w key-100W - Image 2

KL100-DW: Attenuator w key-100W - Image 3

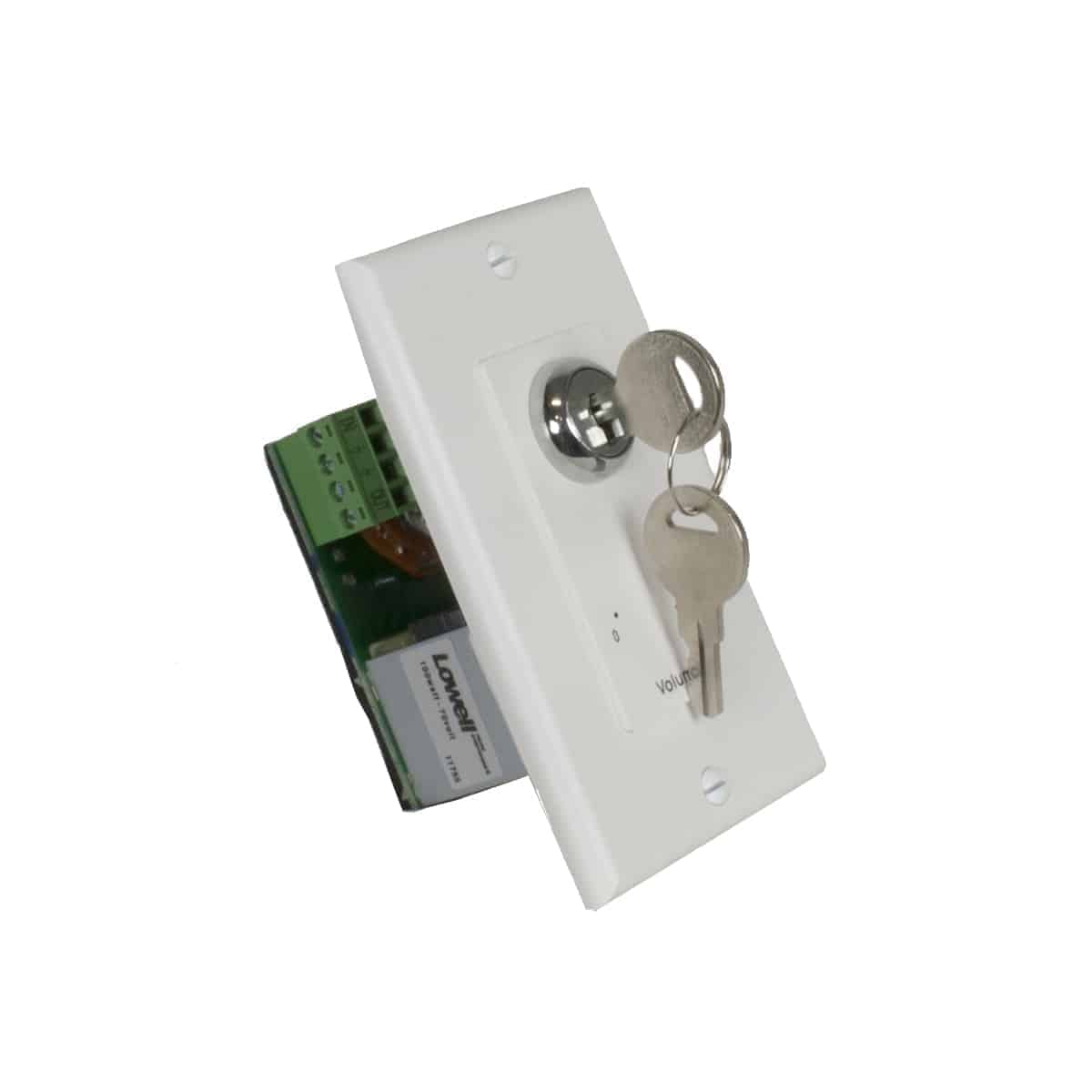

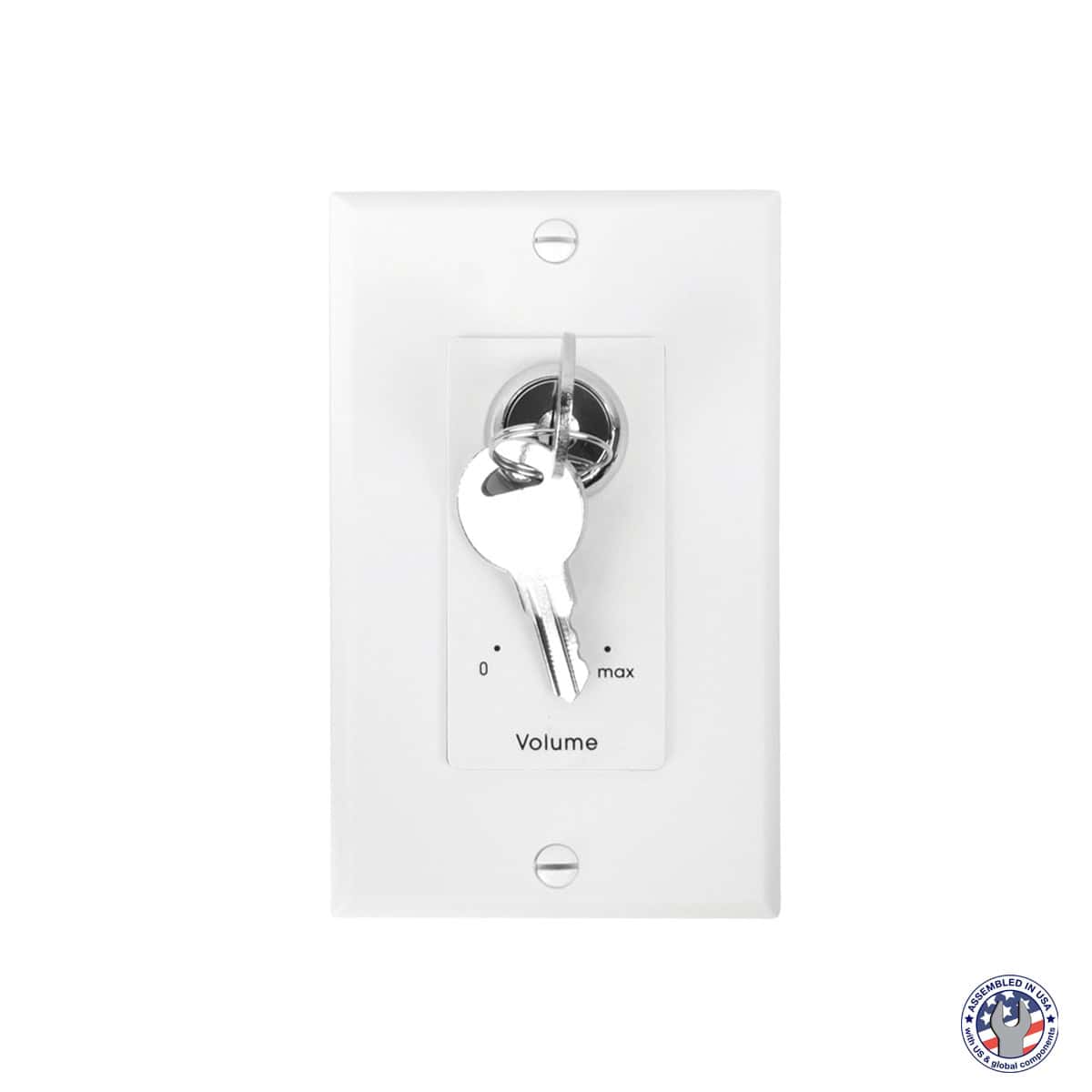

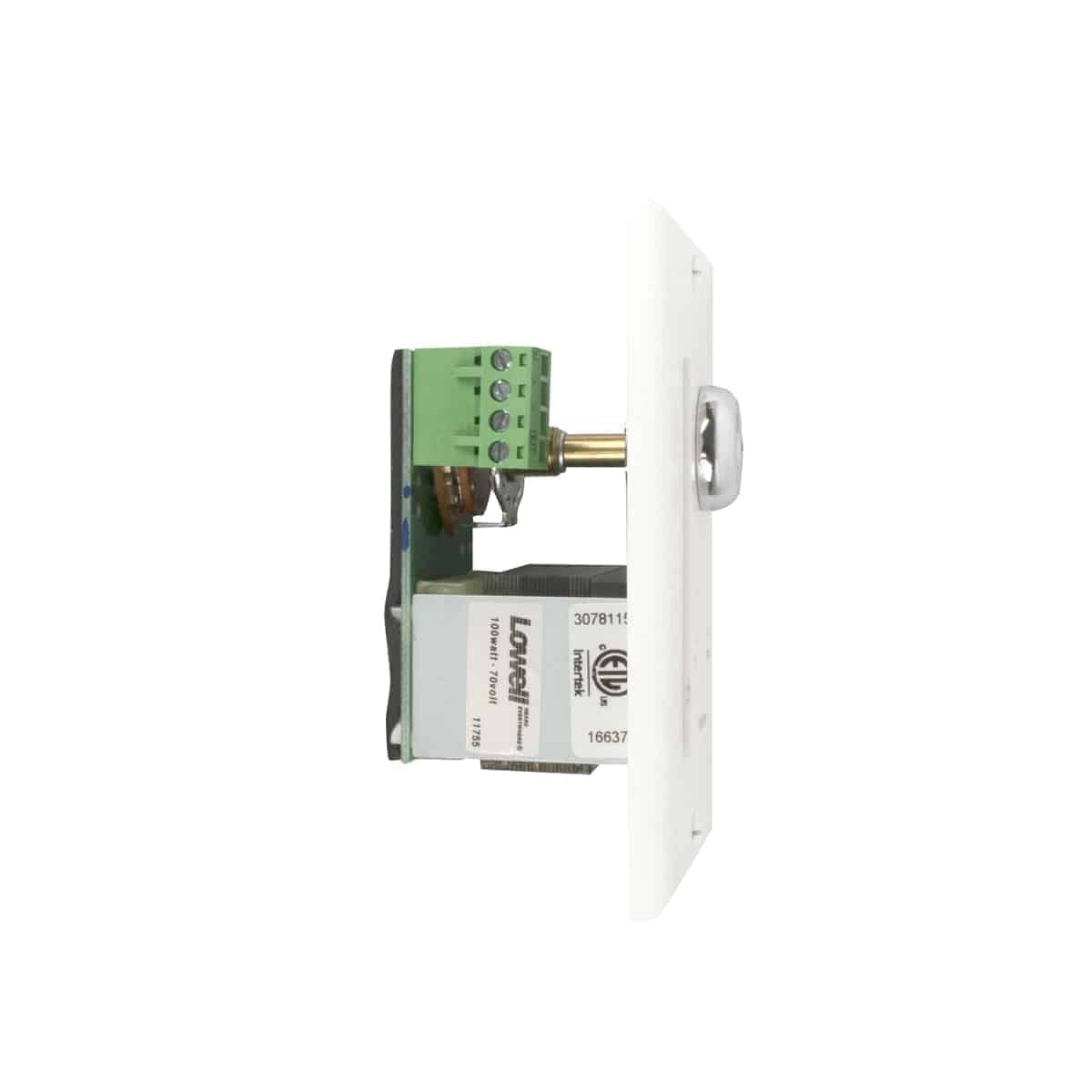

100W Mono Volume Control with Key Switch & 1-Gang Decora-Style Wall Plate, White

Name: 100W Mono Volume Control with Key Switch &amp; 1-Gang Decora-Style Wall Plate, White
SKU: KL100-DW
Availability: InStock

KL100-DW

$139.60 MSRP

The 100W mono autoformer attenuator-style volume control with key activation switch includes a one-gang decora-style wall plate and features a patented design that secures volume settings for critical paging and emergency systems. For single or multiple speaker lines. White.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (33dB total)
Use With: 25V/70V speaker line
Activation: Key
Volume Positions: 0-10
Two steps of 6dB each before off
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decora-style
Finish: White
Fits standard EO box (2.125 in. min. depth)

Spec Sheet: 2245-KL100DW
Install: 12358-KL100

TAA compliant
Assembled in USA with global components
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model KL100-DW with 100W power rating, 3dB per step attenuation, and switch positions 10-off. It shall feature phoenix-style plug-in screw termination strips for pre-wire with capacity up to 14-gauge. It shall include a one-gang decora-style wall plate with white finish. Volume adjustment shall be controlled by a key. The unit shall be Assembled in USA with global components. The control shall be ETL Listed and Trade Agreement Act (TAA) compliant.

P1X: Surface-mount wall box, 1-gang
KL-ANP2: Adaptor plate retrofits to fit a 2-gang box
