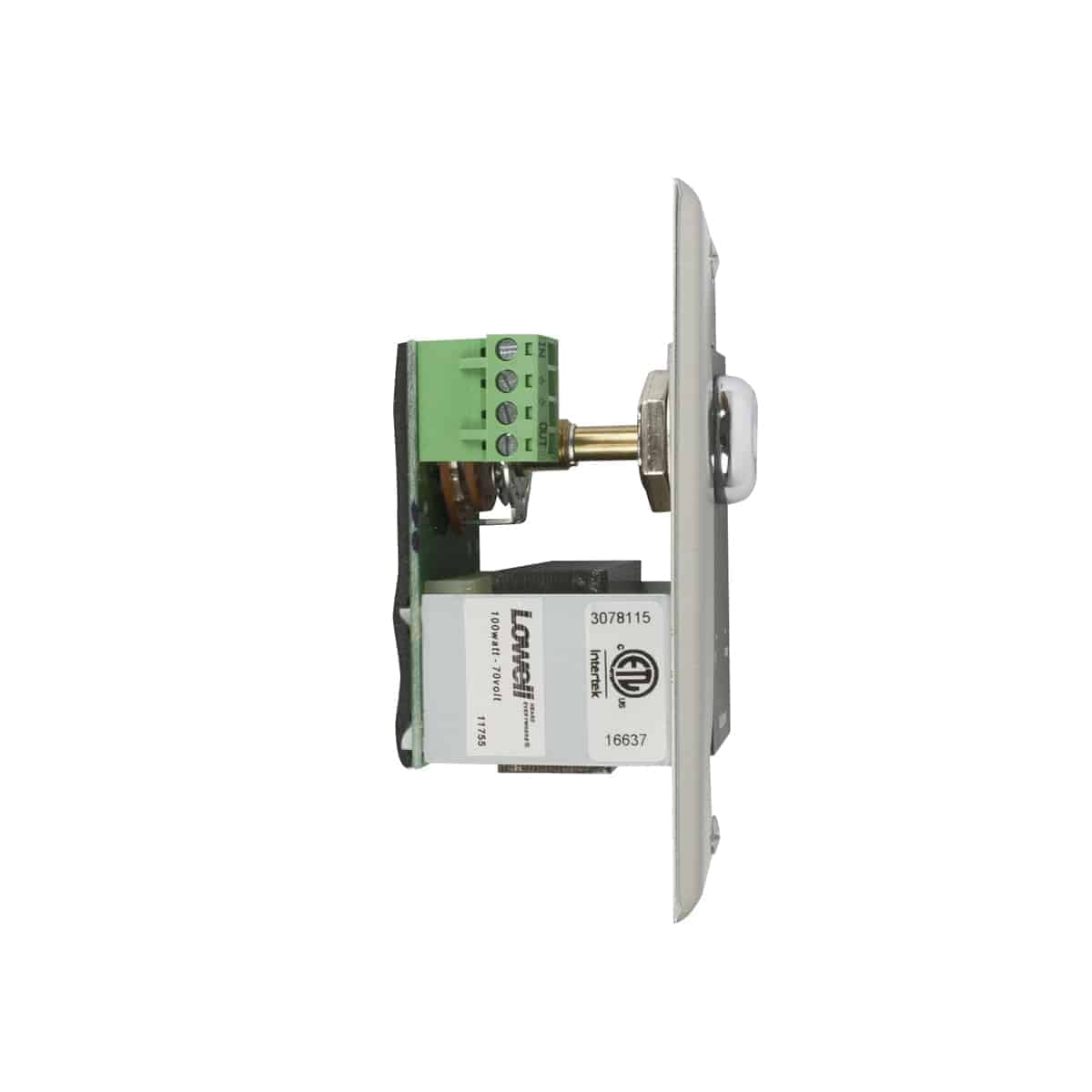

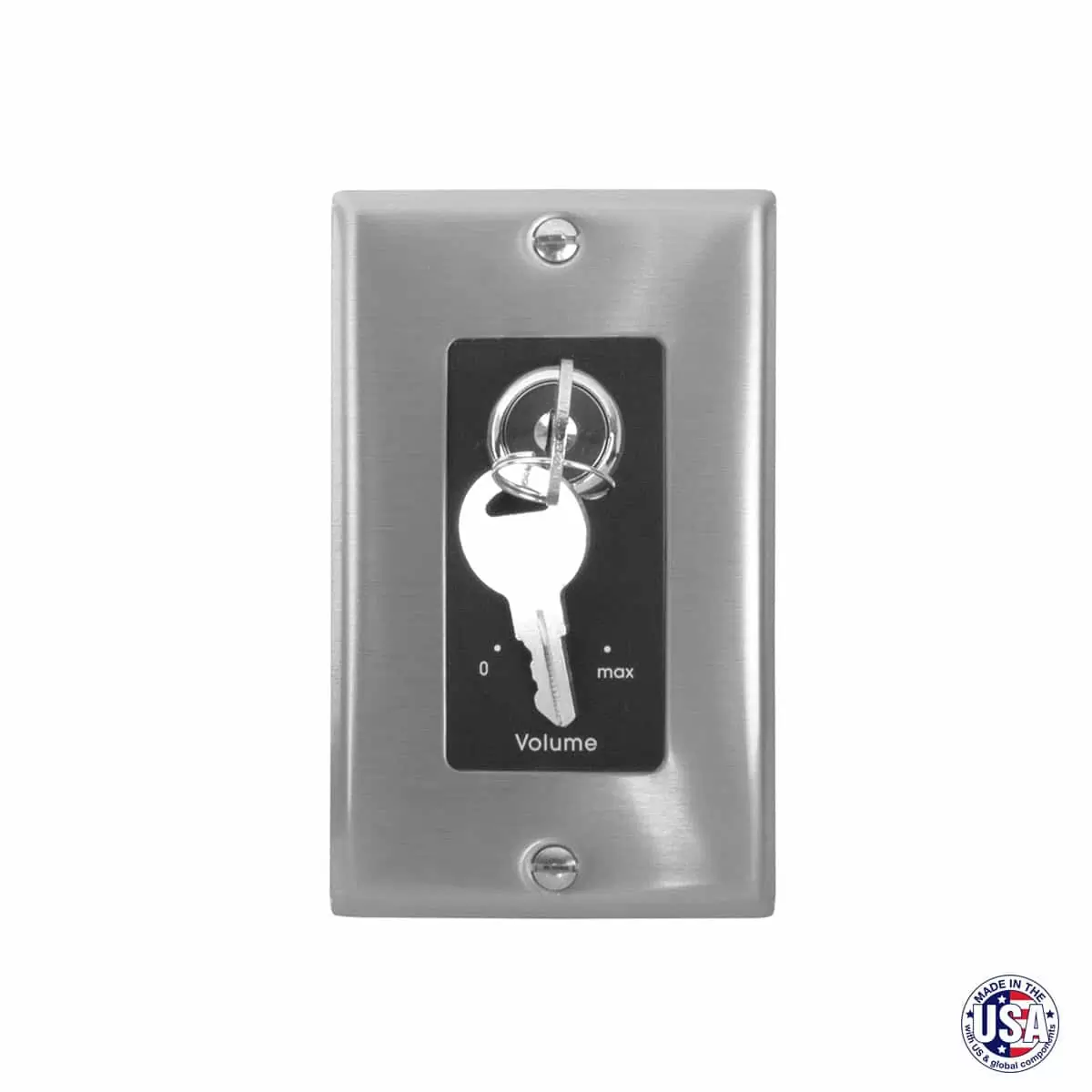

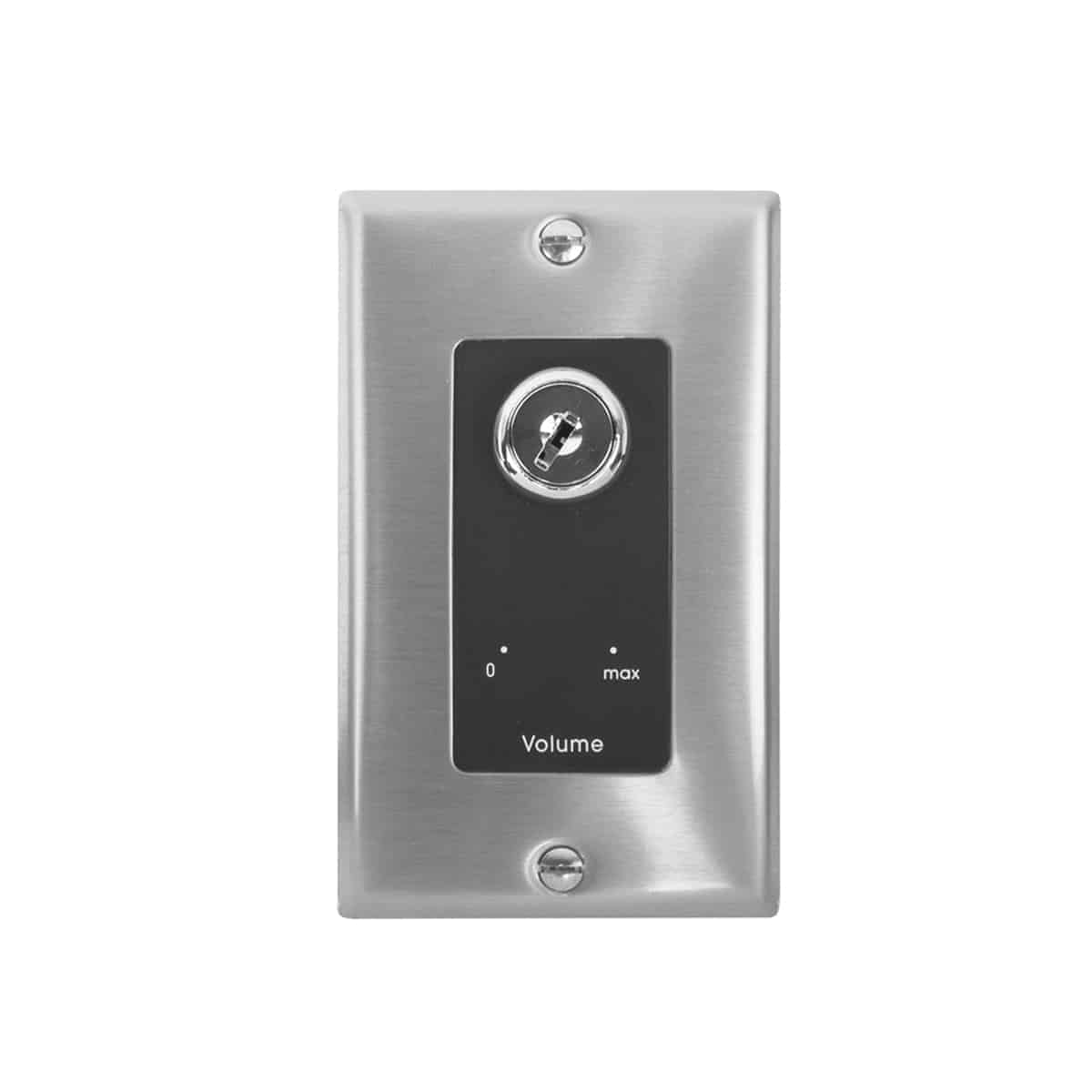

Mono autoformer attenuator, 100W, 1-gang

KL100-DSB: Attenuator w key-100W - Image 2

KL100-DSB: Attenuator w key-100W - Image 3

100W Mono Volume Control with Key Switch & 1-Gang Decorator Wall Plate, SS/Black

Name: 100W Mono Volume Control with Key Switch &amp; 1-Gang Decorator Wall Plate, SS/Black
SKU: KL100-DSB
Availability: InStock

KL100-DSB

$144.00 MSRP

The 100W mono autoformer attenuator-style volume control with key activation switch includes a one-gang decora-style wall plate and features a patented design that secures volume settings for critical paging and emergency systems. For single or multiple speaker lines. Stainless steel with black sub-plate.

Add to Favorites

Compare

Power Rating: 100W
Attenuation: 3dB per step (33dB total)
Use With: 25V/70V speaker line
Activation: Key
Volume Positions: 0-10
Two steps of 6dB each before off
Termination: Phoenix-style
Wire Capacity: 14-gauge
Wall Plate: 1-gang decora-style
Finish: Stainless Steel & Black
Fits standard EO box (2.125 in. min. depth)

Spec Sheet: 2246-KL100DSB
Install: 12358-KL100

TAA compliant
Made in USA with US and global components
ETL Listed (UL60065, UL2043)

The ETL Listed (UL60065, UL2043) volume control shall be Lowell Model KL100-DSB with 100W power rating, 3dB per step attenuation, and switch positions 10- Off. It shall feature phoenix-style plug-in screw termination strips for pre-wire with capacity up to 14-gauge. It shall include a one-gang decora-style wall plate with stainless steel and black finish. Volume adjustment shall be controlled by a key. The unit shall be Made in USA with US and global components. The control shall be ETL Listed and Trade Agreement Act (TAA) compliant.
