Square Screw Mount Grille for 8 inch Speaker

Name: Square Screw Mount Grille for 8 inch Speaker
SKU: JG-8X
Availability: InStock

JG-8X (12.375"SQ)

$78.20 MSRP

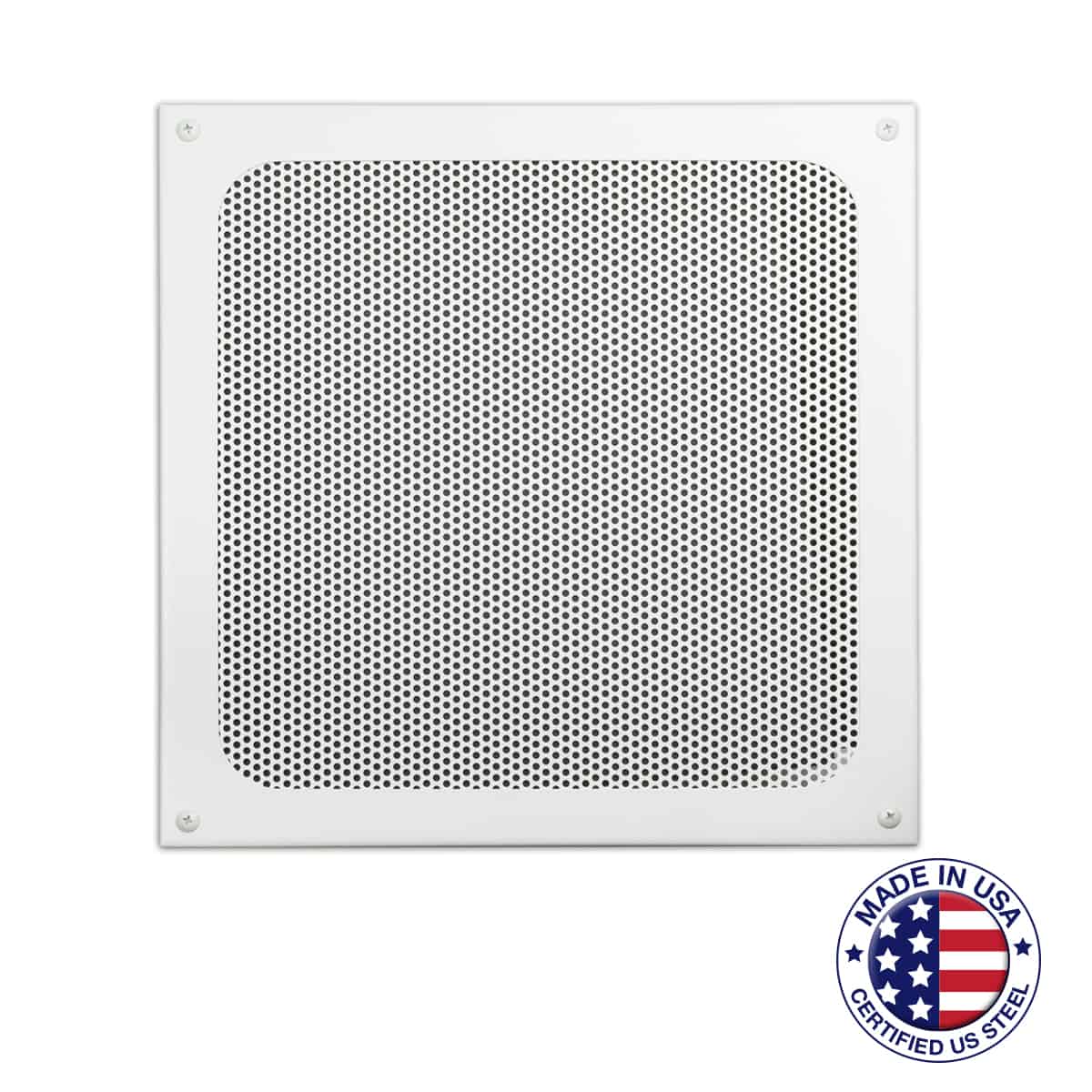

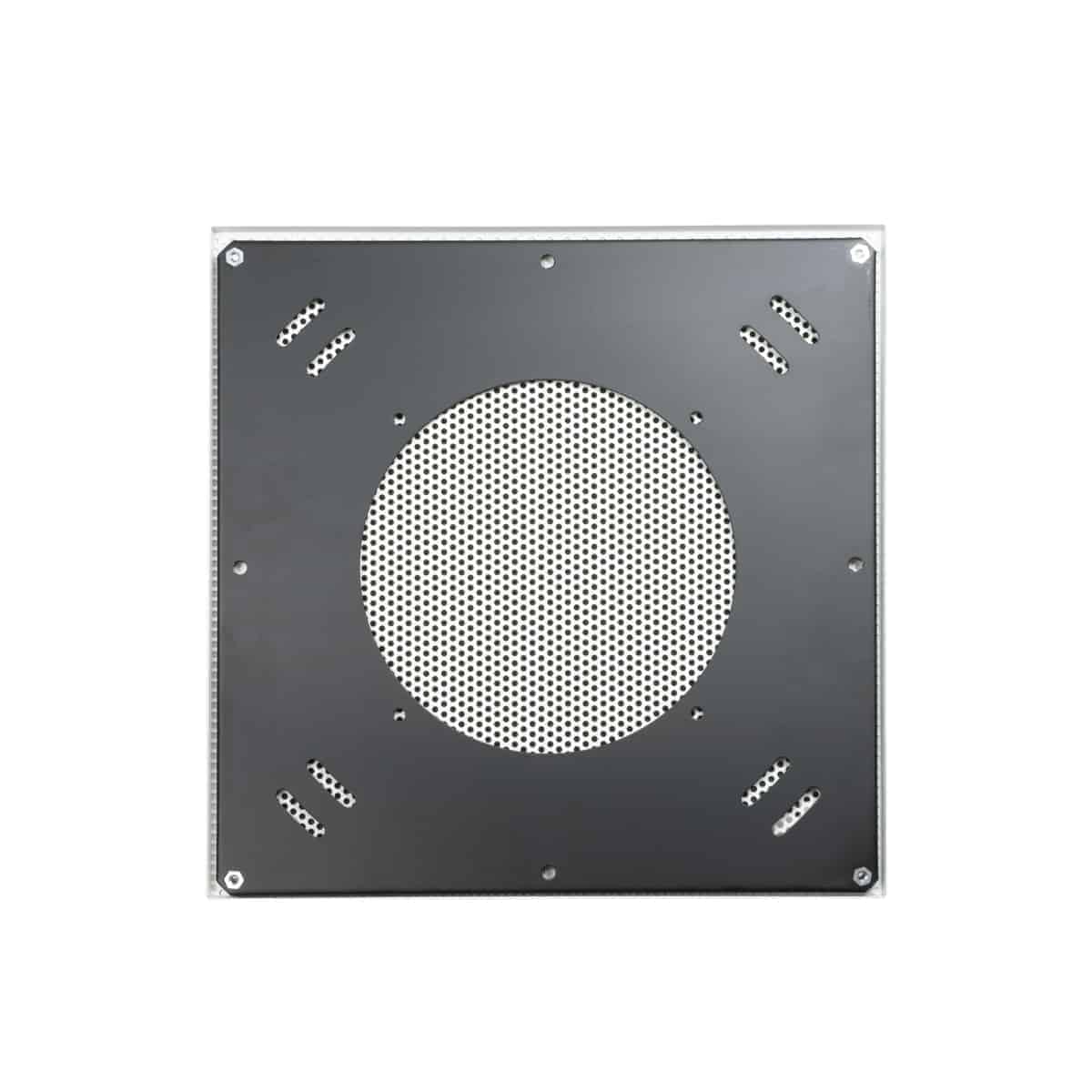

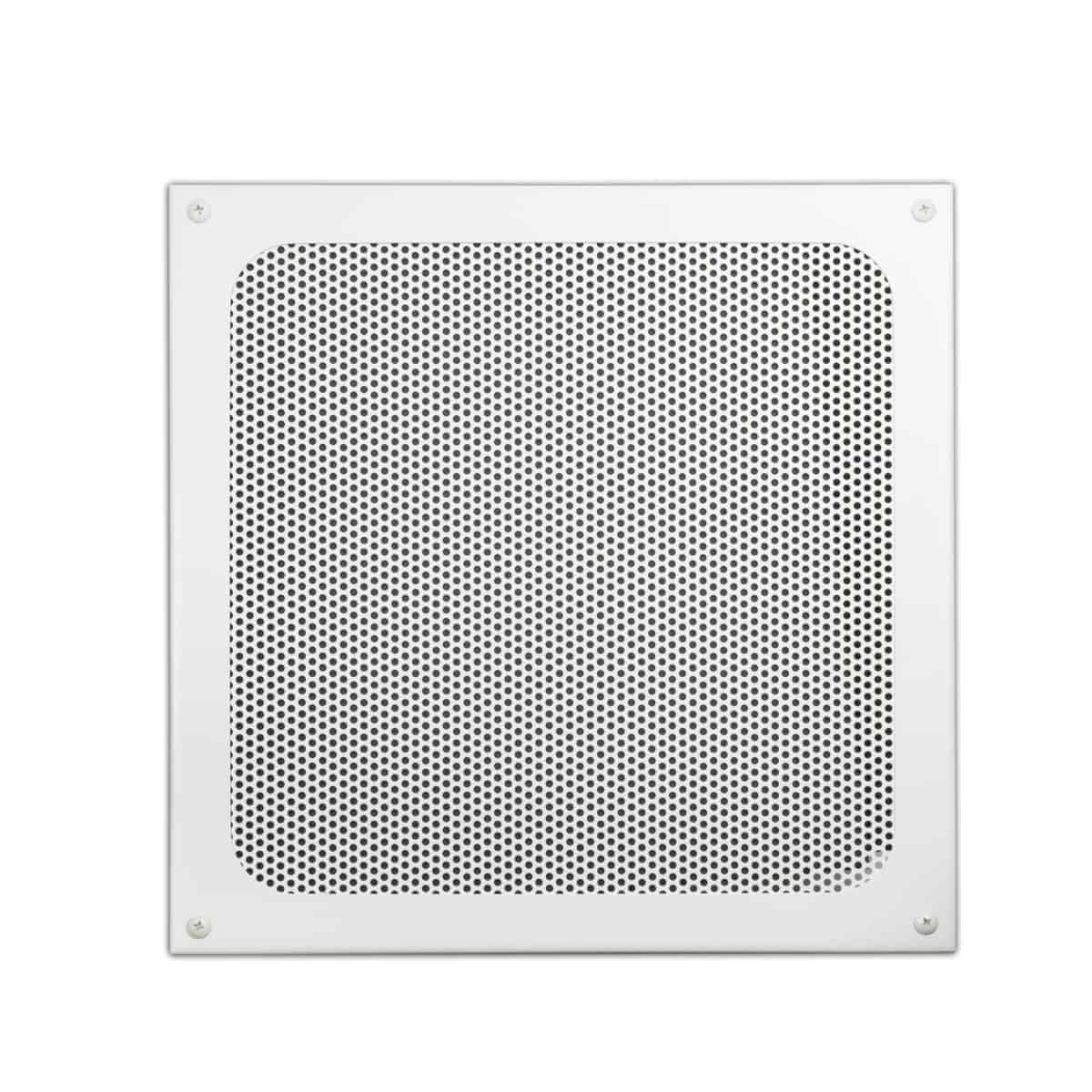

Model JG-8X steel grille with beveled edges and white finish includes a separate sub-plate that direct-mounts an 8-inch speaker and enclosure. The direct-mount method allows a high quality 8-inch speaker with a substantial motor structure weight to be supported by the enclosure instead of the grille.

Priced each. Order in multiples of 10

Add to Favorites

Compare

Style: Screw-mount
Material: 20-gauge beveled frame with radius corner cutout and welded 22-gauge perforated steel screen, 21-gauge steel subplate
Finish: White grille, black subplate
Size: 12.375 in. square
Mounting Projection: 0.375 in.
Mounting Provisions: 4 screws (white), subplate w/4 screws

Spec Sheet: 1649-JG8X

Made in the U.S.A.
Certified U.S. steel

The JG-8X square speaker grille for the 8 inch driver shall be Lowell Model JG-8X. It shall be 20-gauge steel frame with a beveled edge, radius corner cutout and 22-gauge welded perforated screen center. The grille shall include a 21-gauge steel subplate and mounting hardware. The grille shall be 12.375 in. square with a mounting projection of 0.375 in. The subplate shall include provisions for mounting an 8 in. driver and for mounting the speaker/adapter assembly to specified recessed or surface backbox. The subplate shall be finished in black powder epoxy. The grille shall be finished in white powder epoxy and shall mount to the specified backbox using four 8-32 x .375 in. white screws.

Surface-Mount Enclosures: CB84A, CB86A, CB88
Recessed Backboxes: P68XA, P68XA-6
