- Material: 20-gauge galvanized steel
- Finish: Galvanized steel
- Dimensions: 10.00 in. square
- Depth: 4.00 in.
- Volume: 0.231 cu.ft.

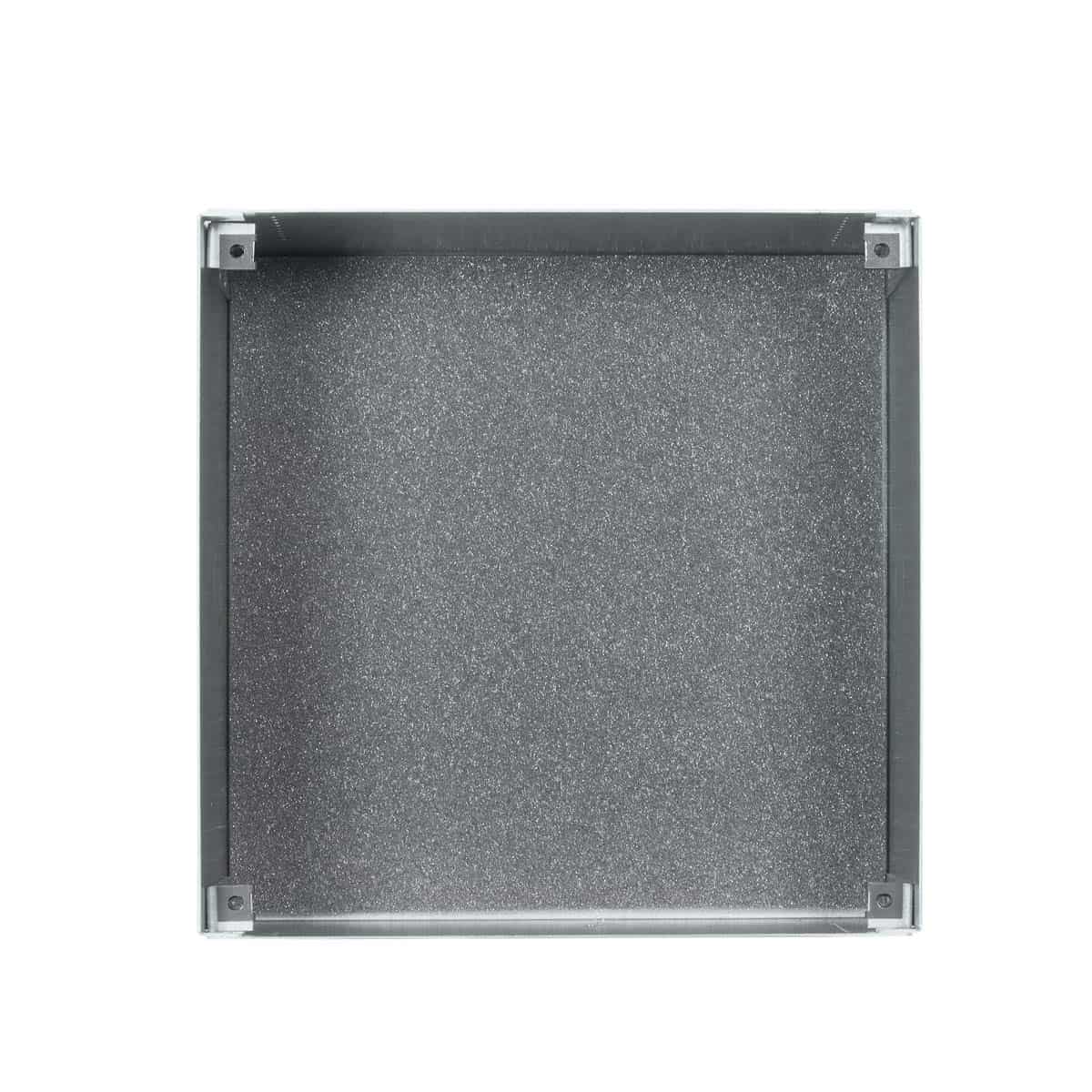

- Acoustical Treatment: Foam pad lining
- Knockouts: 1/2″ and 3/4″ combination for conduit
- Mounting Aids: Knockouts, mounting tabs, pre-punched holes for optional mounting brackets or tile support channel rails
- For Grille Type: Screw-mount
- Made in U.S.A.
- U.S. steel
The enclosure for recessed installation of 8″ speakers shall be Lowell model P68XA, which shall be 20-gauge galvanized steel (10″ x 10″ x 4″). It shall feature combination knockouts for conduit (1/2″ and 3/4″) on two opposite sides and rear of enclosure. It shall also feature recessed mounting tabs with four Tinnerman clips, and a foam pad to help reduce acoustic/mechanical resonance. The enclosure shall be made in the U.S.A.
