Steel Enclosure for 8 inch Speaker, Surface Mount | CB88 (8"D) - CLOSEOUT

Name: Steel Enclosure for 8 inch Speaker, Surface Mount | CB88 (8"D) - CLOSEOUT
SKU: CB88
Availability: InStock

Special Pricing - While Supplies Last

$62.40 MSRP

CLOSEOUT | Call 800-325-9660 for Availability

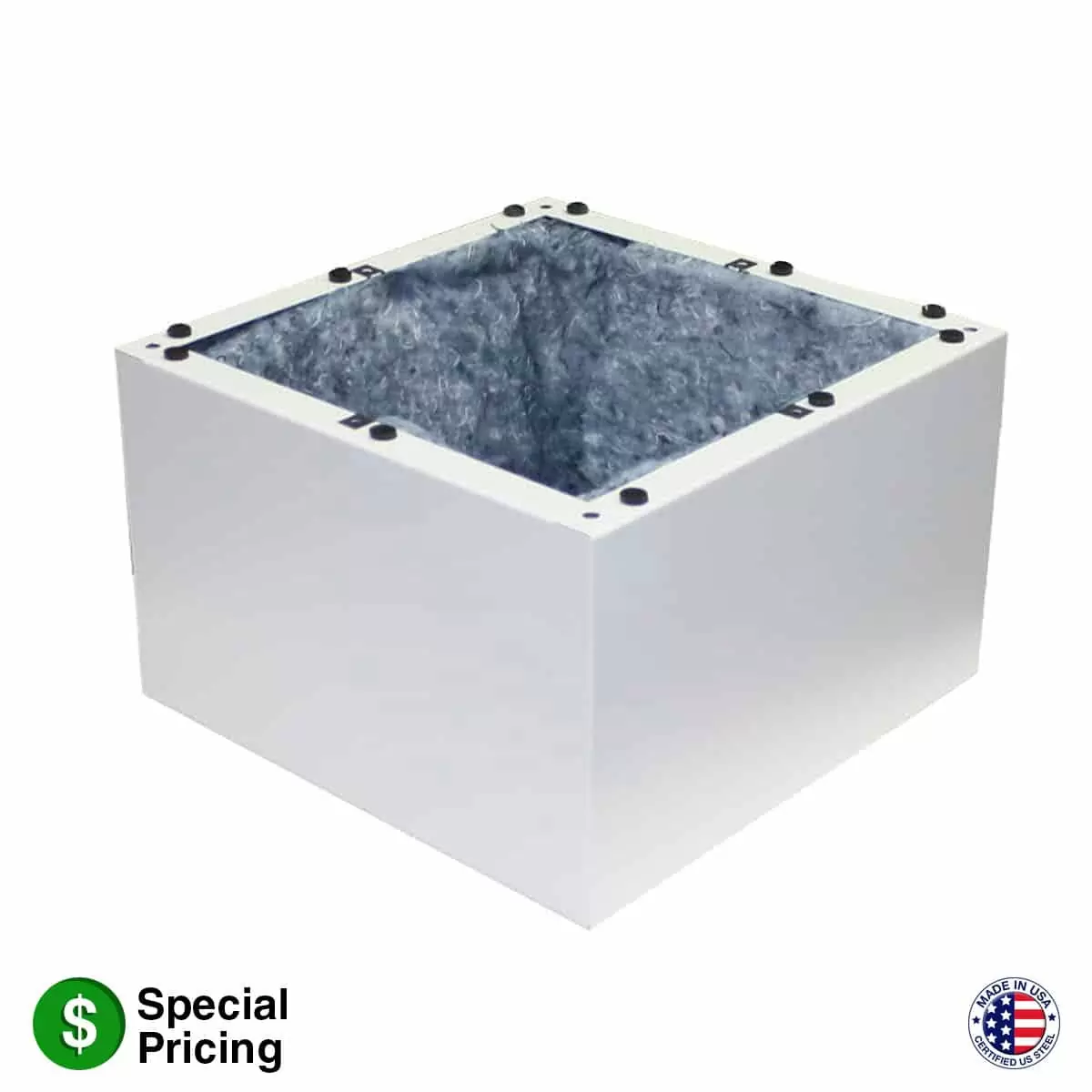

Model CB88 is a large volume surface-mount enclosure for ceiling or wall installation of an 8 inch speaker and a screw-mount grille. U.S. steel construction with white powder epoxy finish.

Add to Favorites

Compare

Material: 20-gauge steel, formed flanges, white finish
Height: 12.56 in.
Width: 12.56 in.
Depth: 7.94 in.
Volume: 0.73 cu.ft.
Acoustical Treatment: 1.5 in. thick batting
For Grille Type: Screw-mount

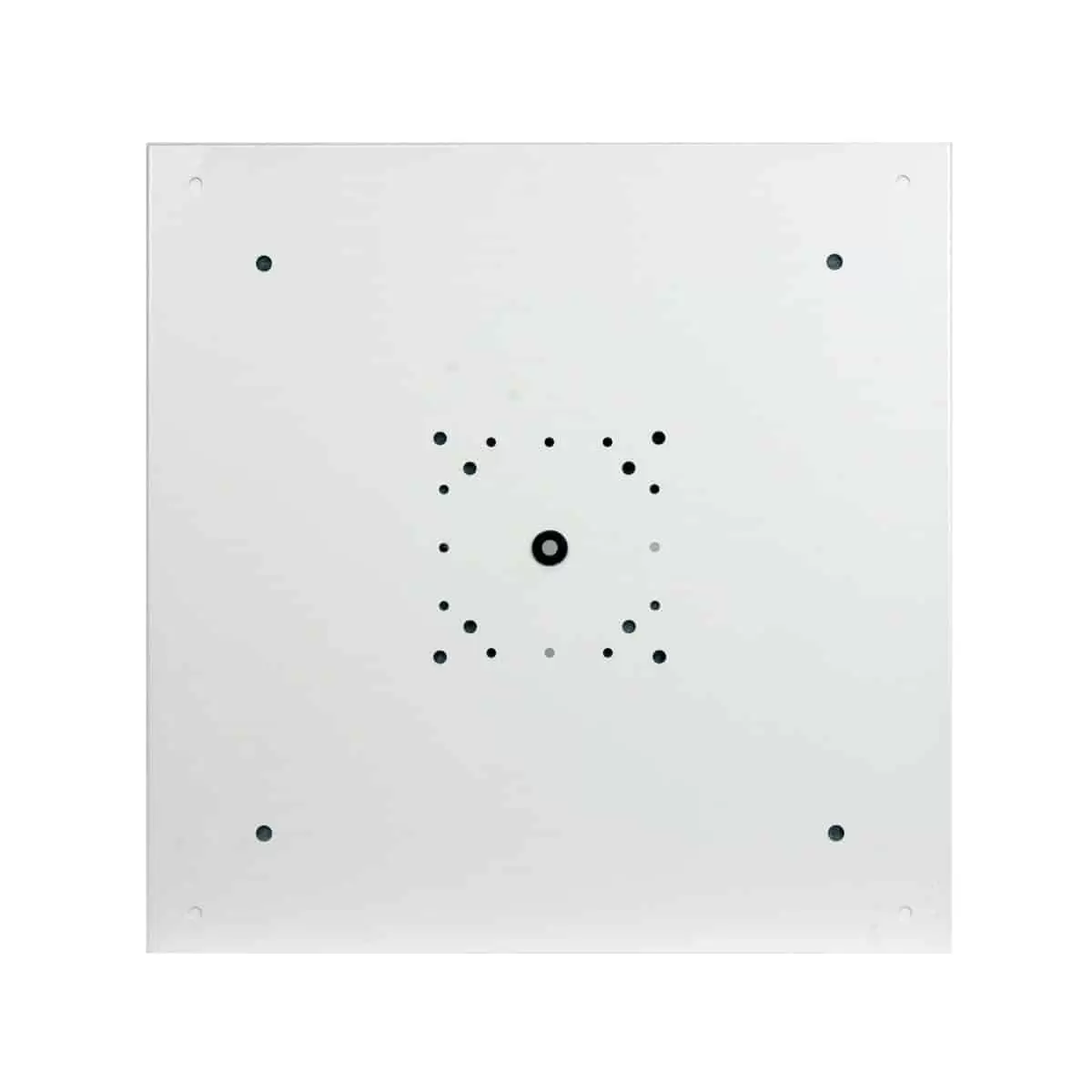

Mounting Aids: U-clips, universal mounting pattern to accommodate an E.O. box (not included), 0.375 in. hole with grommet for wire access

Spec Sheet: 1339-CB88

Made in U.S.A.
Certified U.S. steel

The surface-mount backbox shall be Lowell Model CB88, which shall be fabricated of 20-gauge steel and lined with 1.5 in. thick acoustic batting. The rear shall include provisions to mount to a 4 in. square, 4 in. octagon, 2-gang or 1-gang E.O. box (not included). The rear of the backbox shall also feature a 3/8 in. diameter hole with grommet for wire access. The backbox shall have four mounting holes and 8-32 U-clips to accept a companion grille with speaker adapter plate (order separately). The backbox shall measure 12.56 in. square x 7.94 in. deep and have a white powder epoxy finish.

Grille: JG-8X
