- Style: Screw-mount
- Material: 14-gauge steel with 22-gauge steel barrier screen
- Finish: White
- Size: 11.438 in. square
- Mounting Projection: 0.125 in.
- Mounting Provisions: 4 tamper-resistant screws, 4 studs
- Made in the U.S.A.
- Certified U.S. steel

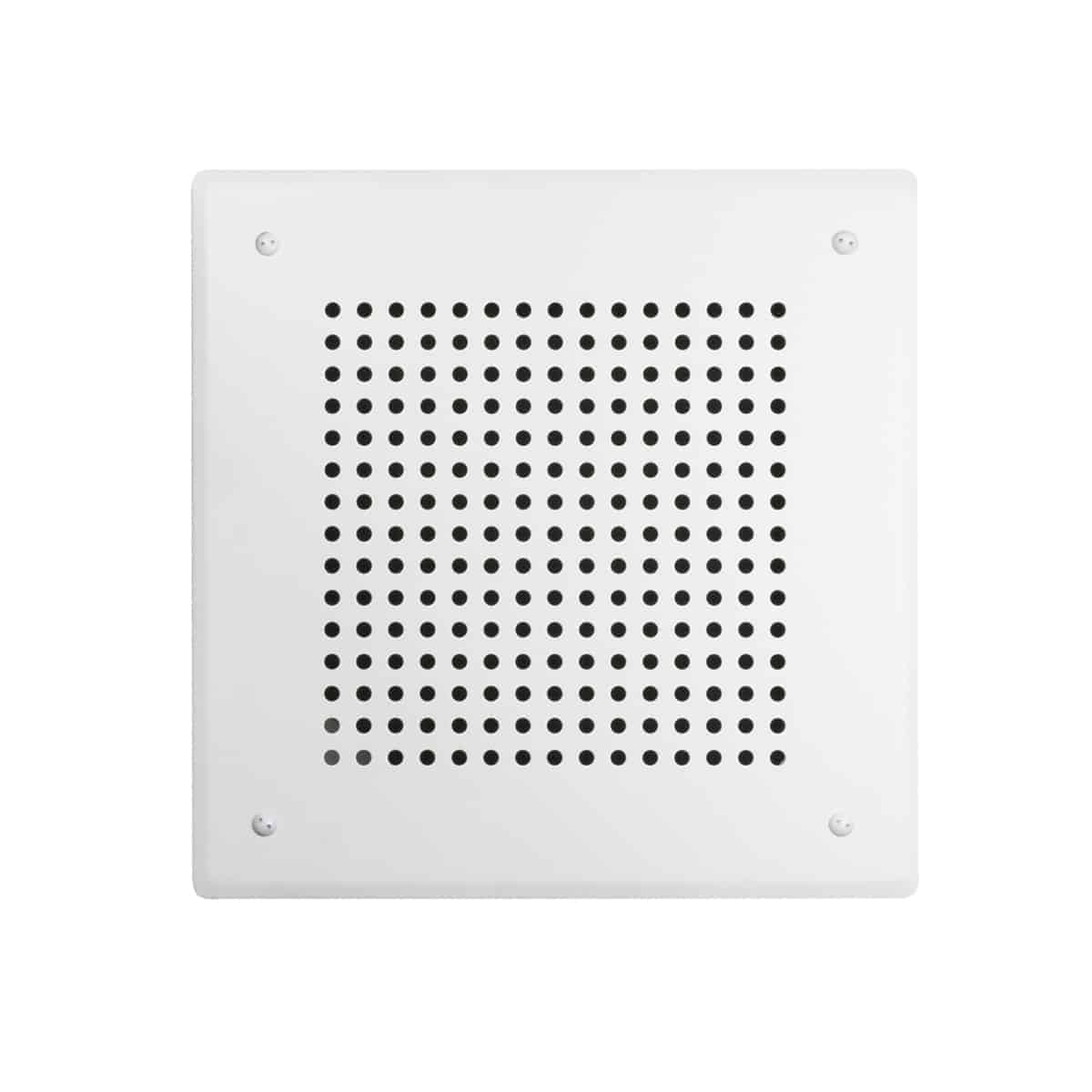

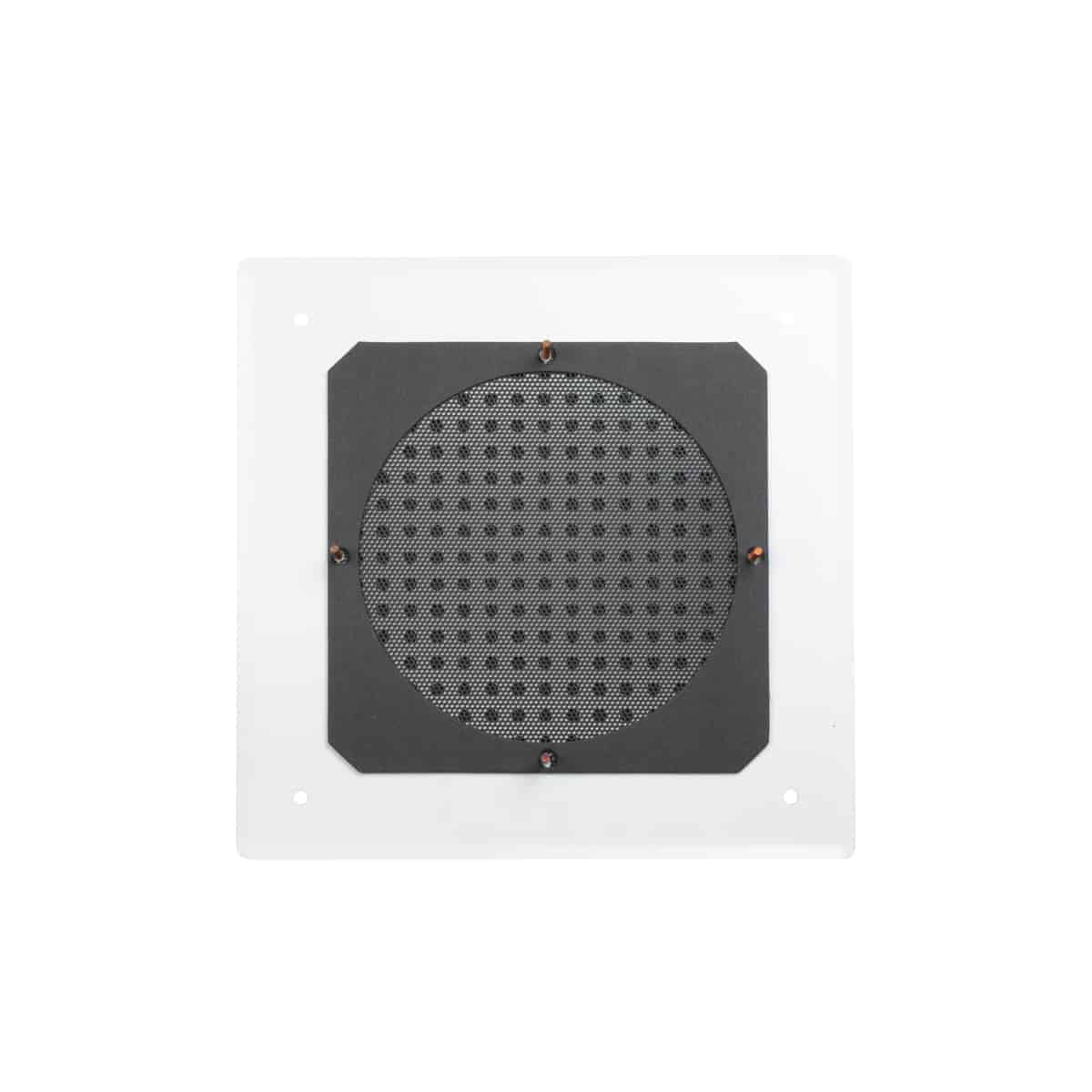

The square vandal-resistant grille for 8-inch speakers or (Unihorn Model LUH-15T) shall be Lowell Model SG-8VP. It shall be heavy duty 14-gauge punched steel reinforced with a peripheral flange. It shall include a 22-gauge steel barrier screen, painted black, and a chipboard gasket to protect the driver from damage. The grille shall be 11.438 in. square with a shallow mounting projection of 0.125 in. It shall have 8-32 x 1 in. welded studs with nuts for mounting specified 8-inch EIA speaker. Each grille shall also have four 0.218 in. holes on a 9.062 in. centers for mounting specified recessed or surface backbox using tamper-resistant white screws provided. Grille shall be finished in white powder coat.
