R1810-72: 8-in 15W dual cone driver, 5W transfomer, square grille

8 inch Dual Cone Speaker with 25/70V Xfmr, Grille

Name: 8 inch Dual Cone Speaker with 25/70V Xfmr, Grille
SKU: R7810-72
Availability: InStock

R7810-72

$103.60 MSRP

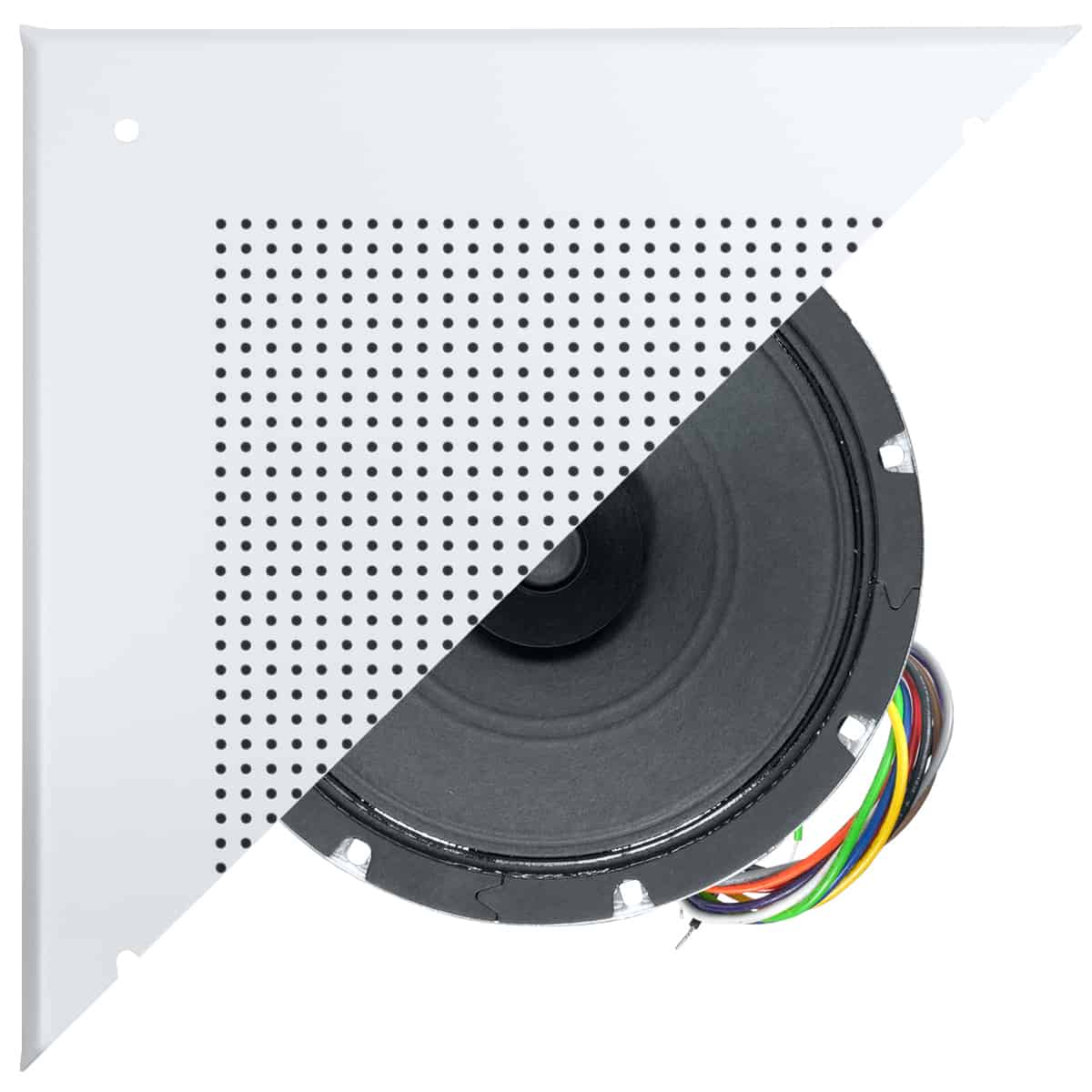

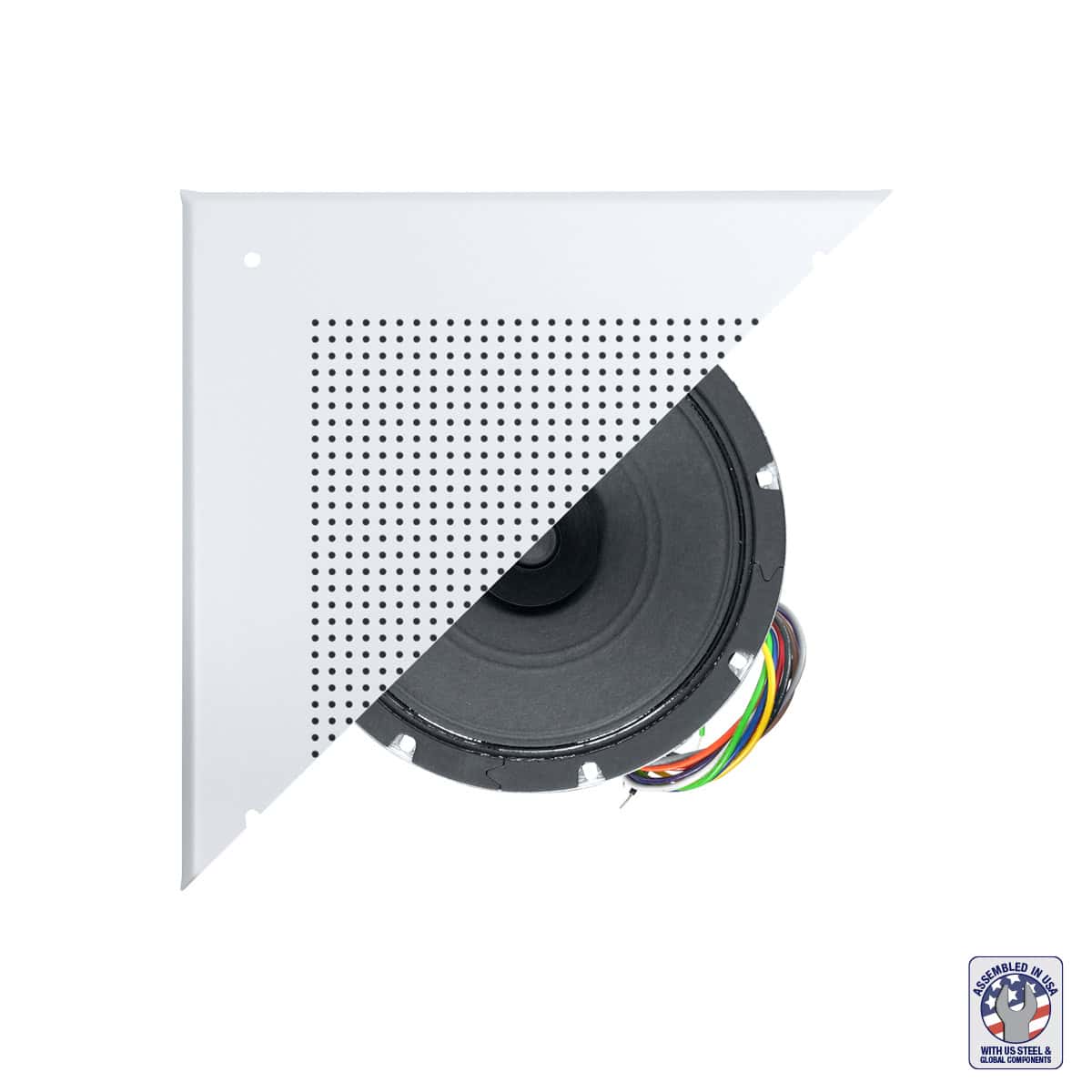

Model R7810-72, for distributed background music and general paging, provides clear intelligibility, wide dispersion and consistent performance. It's designed for applications where installed cost is a prime consideration. The assembly includes an 8-inch 15W dual cone driver, wired 25V/70V dual voltage (5W) transformer and square steel grille. Order enclosure separately.

Priced each. Order in multiples of 6.

Add to Favorites

Compare

Driver: 8 in. 15W dual cone driver with 10 oz. ceramic magnet. Cone is molded of a high fiber content material to provide smooth extended frequency response and a clean natural sound.
Transformer: 25V/70V transformer. Taps at .25, .5, 1, 2, 5W.
Grille: 11.44 in. square steel screw-mount grille. White.

Spec Sheet: R-Series

Made in U.S.A. with global components

The speaker/grille assembly shall be Lowell Model R7810-72, which shall include an 8 inch dual cone driver with wired transformer and square screw-mount grille. The driver shall have 15 watt RMS power rating and shall employ a 10 oz. ceramic magnet and molded high fiber cone. Frequency response shall be 54Hz-11.6kHz (±6dB); 50Hz-20kHz (±6.6dB) with sensitivity of 97.9dB avg. measured 1W/1M. The wired dual voltage transformer shall be 25/70V with primary taps at .25, .5, 1, 2, and 5W. The steel grille shall be mounted to the driver and have a white powder epoxy finish.
