- Four double-sided 12-gauge steel channel rails (3 in. deep)
- Holes tapped 12-24 on EIA spacing
- Numbered RU increments
- Multiple cable pass-through points
- Grounding studs at top and bottom
- Two-piece 12-gauge steel top and base
- Four holes for anchors (not included)
- Side supports are adjustable to set rack depth
- Assembly and mounting hardware
- Smooth black finish
- Ships unassembled
- Rack Space: 45U
- Overall Height: 84.25 in.
- Depth adjustable to 42 in.
- Overall Width: 20.25 in.
- Load Capacity: 800 lbs.

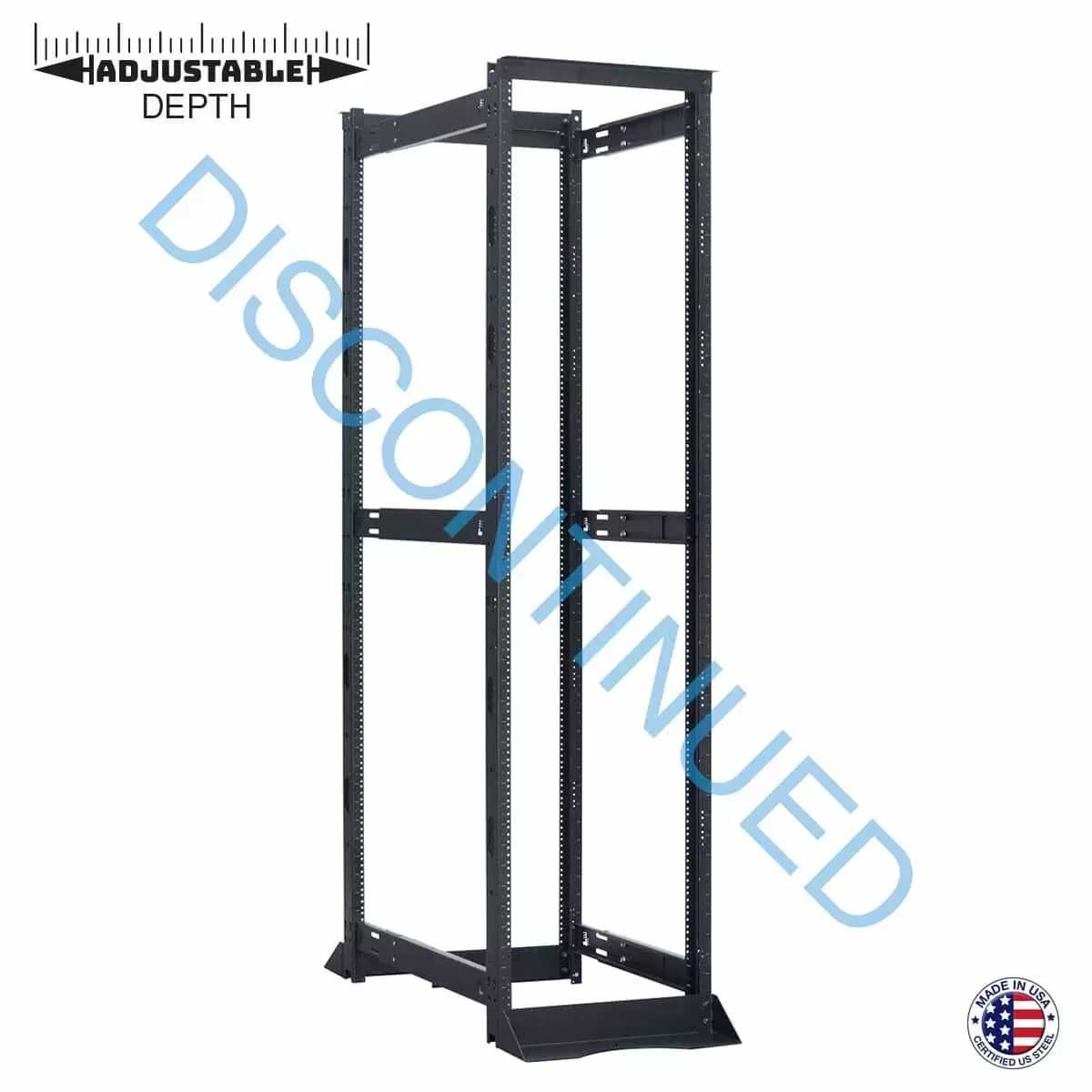

The EIA/TIA compliant four-post network rack with adjustable depth shall be Lowell Model NR4PA-4542, which shall measure 20.25″W x 84.25″H with 45U panel space. Rack construction shall be two-piece steel top and two-piece steel base with four holes for anchoring to floor (anchors not included). The rack shall include four steel (3″D) double-sided vertical channels with mounting holes tapped 12-24 on EIA mounting centers and featuring a printed RU scale. Side supports shall be adjustable to depth of 42 in. Rack shall have a smooth black powder epoxy finish and include assembly and mounting hardware.
