- Backbox has two center locks, 16 in. mounting centers, 10 in. wide center wiring path, and integral laser-cut sections with knockout panels on top/bottom.
- Mounting section connects to backbox with right or left-hand swing and features welded sides with top/bottom vents
- One-pair fixed position mounting rails tapped 10-32, printed RU scale
- Pilot point screws with captive washers
- Beveled corners
- Black-textured powder-coat finish
- Rack Space: 16U
- Height: 35.83 in.
- Width: 23.06 in.
- Depth: 21.92 in.
- Load Capacity: 150 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA

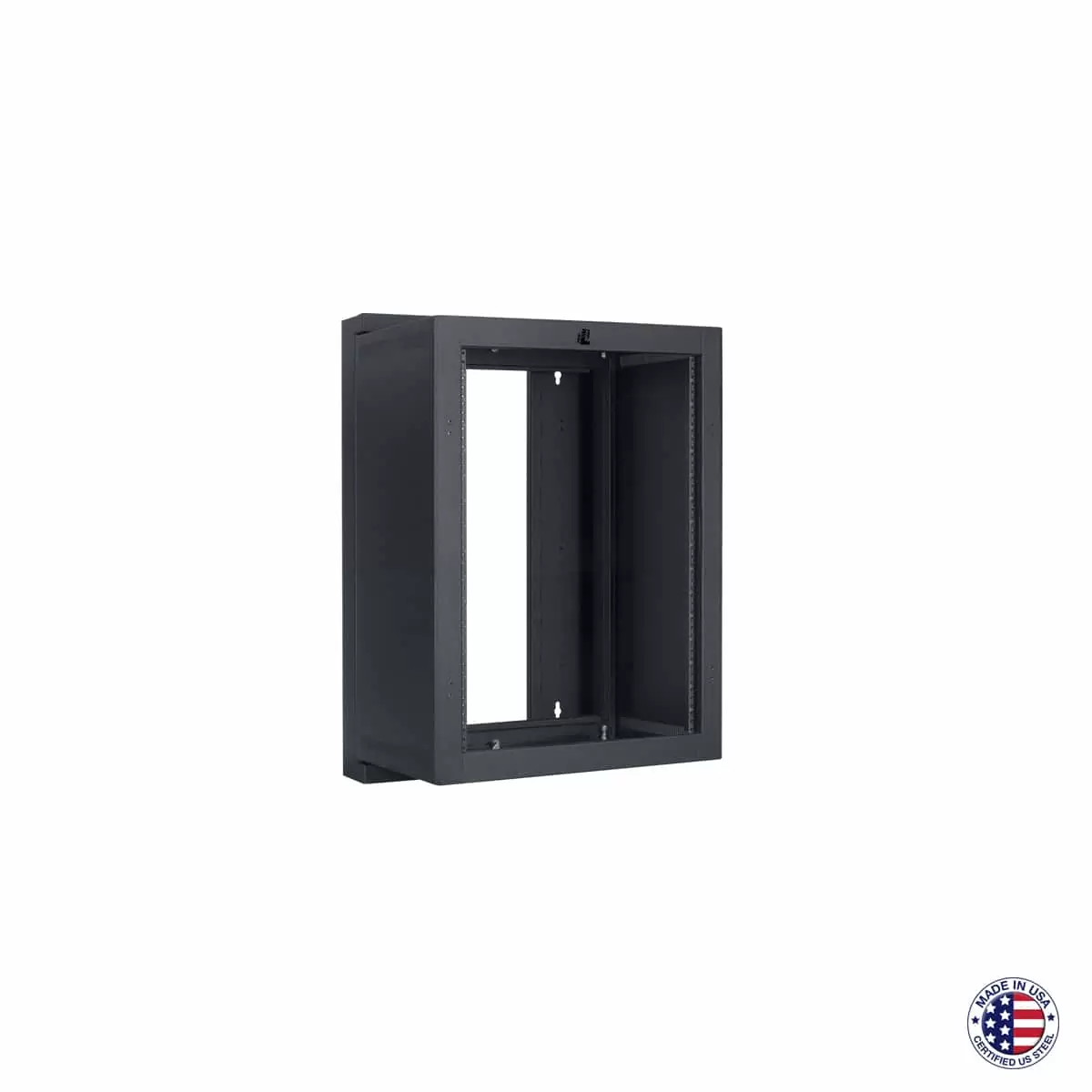

The wall-mount rack shall be Lowell Model LWSR-1622 which shall feature a backbox and mounting section. Overall measurements shall be 35.83″H x 21.92″D x 23.06″W with 16 rack units of panel space. The mounting section shall have top/bottom side vents and one pair of fixed-position front mounting rails tapped 10-32 and marked with rack unit increments. It shall attach to the backbox with heavy-duty bolts that can be moved to the opposite side to change swing orientation. The backbox shall measure 3.65″D and be formed from 16-gauge steel with keyhole mounting slots on 16″ centers. It shall feature a 10″W center wiring path, integral laser-cut sections with knockout panels on top/bottom, lacing points on back plane, and keyed locks at top and bottom. Knockout panels shall have 1/2″ knockouts for wireless antennas; 3/4-1/2″ and 1-1/2″-1″ compound knockouts for conduit. The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
