- Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, knockout panels on top/bottom, and two keyed side locks.
- Front Mounting Section: Fully-gusseted corners, triple-formed wrap design mounts to backbox from inside with two heavy-duty spring-loaded L-pins (self-seating, positive-locking). Welded sides with vents. Knockouts for wireless antennas.
- One-pair adjustable mounting rails tapped 10-32, printed RU scale
- Integral top/bottom rails on EIA spacing for mounting or lacing
- Black-textured powder-coat finish
- Pilot point screws with captive washers
- Draw latch to pull mounting section and backbox together
- Grounding stud
- Rack Space: 24U
- Height: 48.125 in.
- Width: 23.06 in.
- Depth: 32.05 in. (29 usable)
- Load Capacity: 300 lbs.
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in the USA

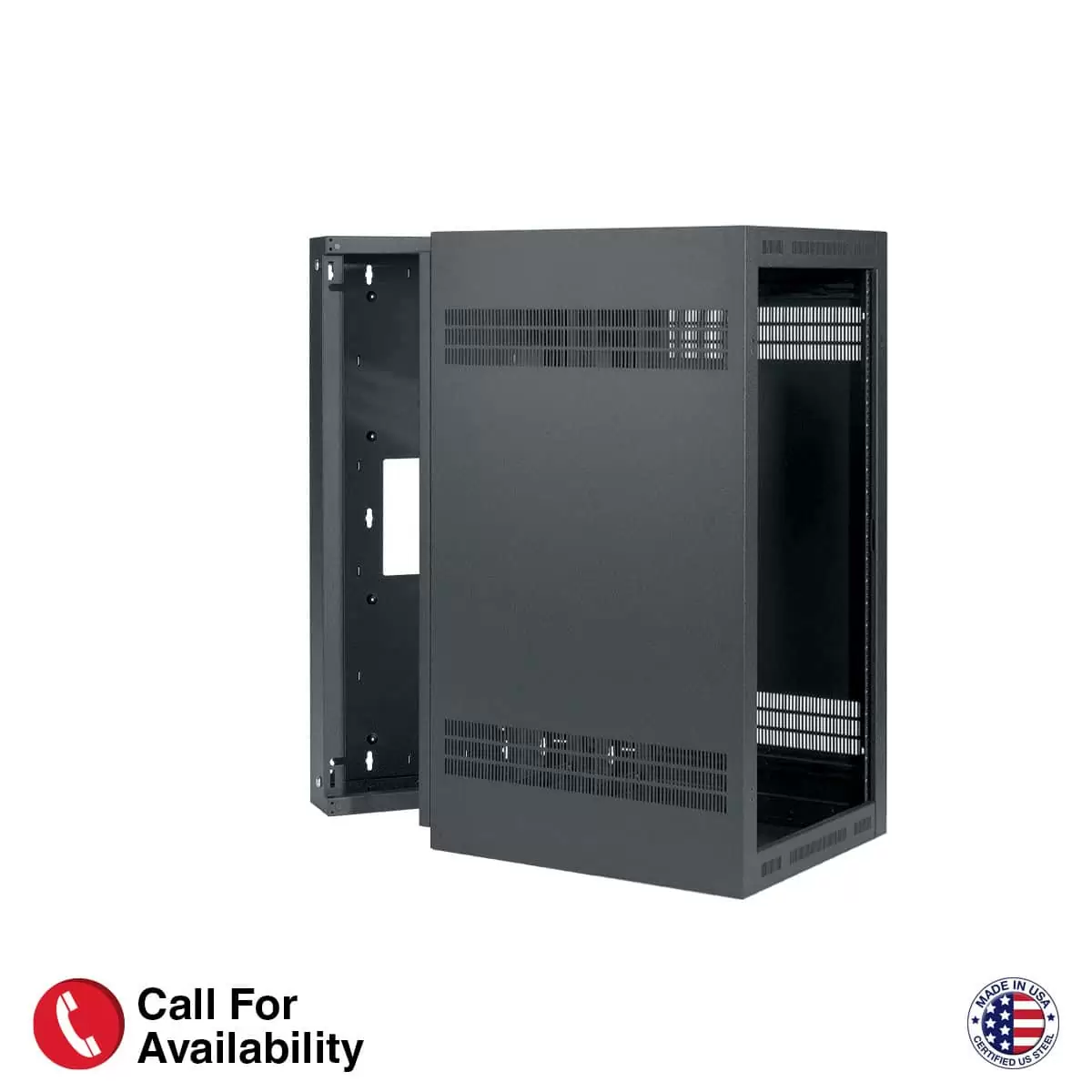

The EIA-compliant, welded sectional wall rack shall be Lowell Model LWR-2432, which shall consist of a backbox and mounting section made from 16-gauge steel. Overall measurements shall be 48.125″H x 32.057″D x 23.06″W (24U racking space). The mounting section shall be 26.06″D with triple-formed side-to-bottom, side-to-top wrapped construction to achieve strength equivalent to 3/16″ thick steel. It shall include side vents, one-pair adjustable mounting rails tapped 10-32 (with mounting hardware), four knockouts for antennas (top and bottom), and integral rails on EIA spacing (top and bottom). The mounting section shall attach to the backbox on the inside with two heavy-duty, spring-loaded L-pins (self-seating, positive-locking), which can be attached on either side to alter swing orientation. The backbox shall be 5.80″D with keyhole mounting slots on 16″ centers, 10″ x 10″ rear opening, embossed dimples and lacing points on the back plane, knockout panels with combination knockouts on top and bottom, and two keyed side locks. The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant.
