LWR SERIES | 18U x 28"D Wall Mount Rack/Cabinet
LWR-1828
$1,515.80 MSRP
$1,515.80 MSRP

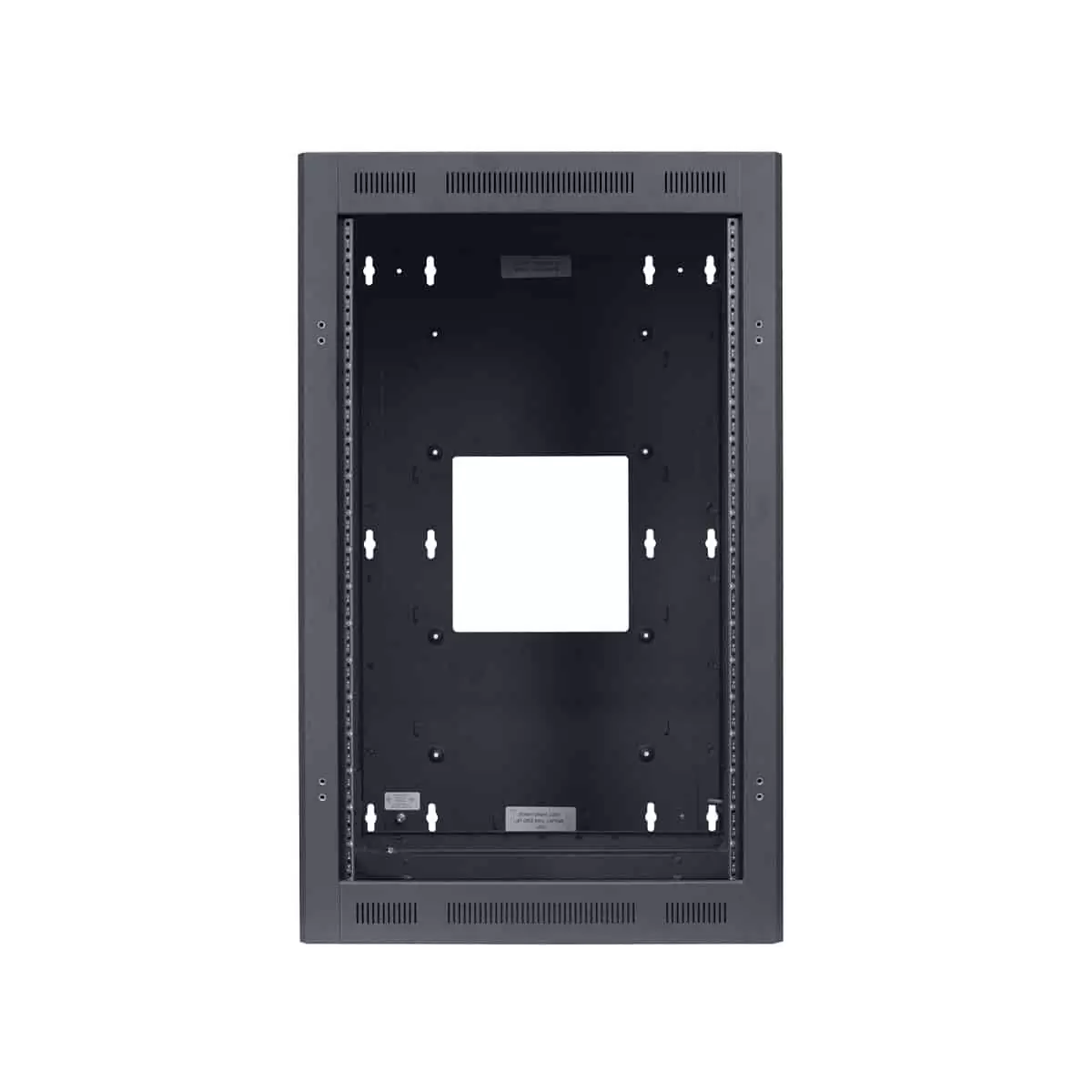

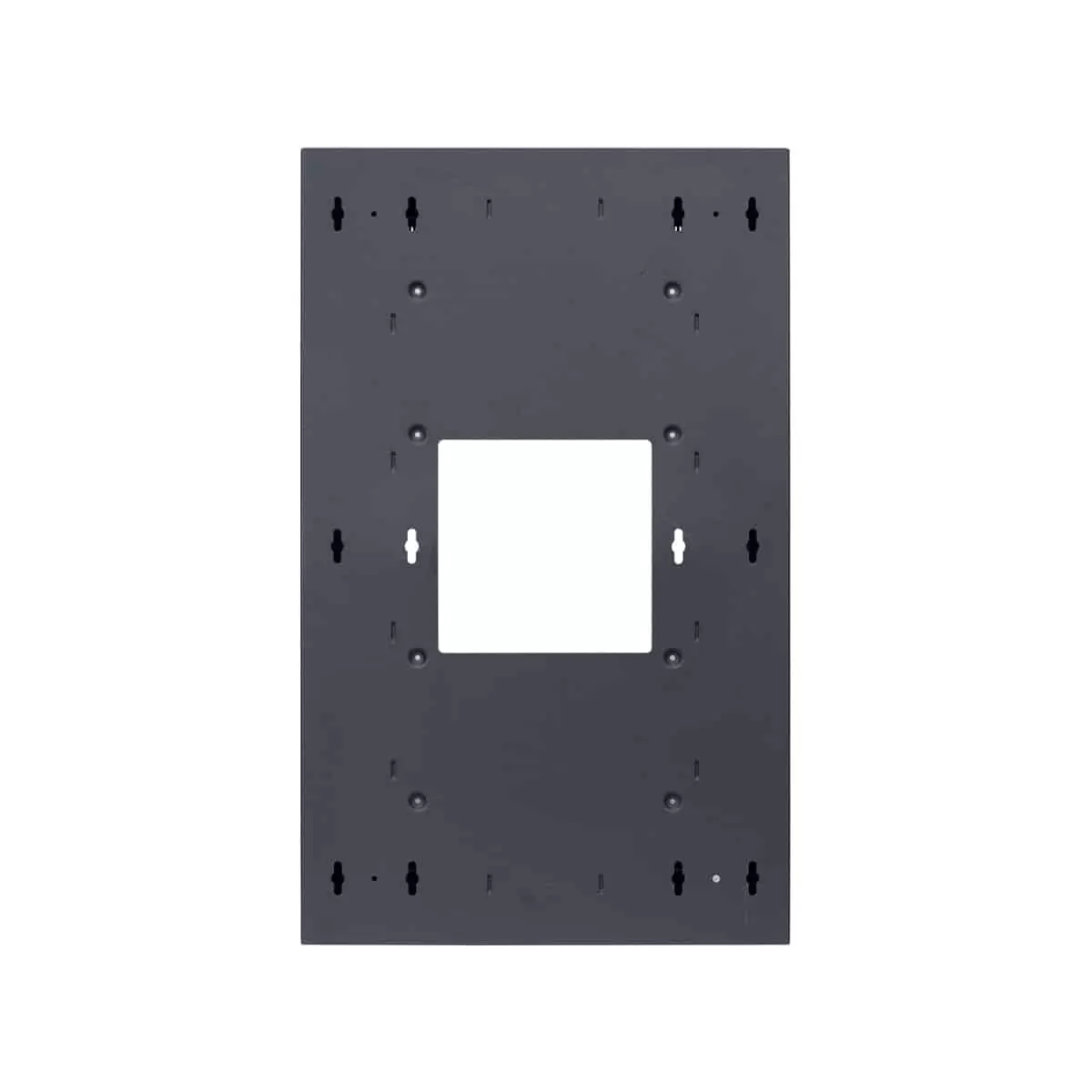

The EIA-compliant, welded sectional wall rack shall be Lowell LWR-1828, which shall consist of a backbox and mounting section made from 16-gauge steel. Overall measurements shall be 37.50″H x 28.05″D x 23.06″W , providing 18U panel space. The mounting section shall be 22.06″D with triple-formed side-to-bottom, side-to-top wrapped construction to achieve strength equivalent to 3/16″ thick steel. It shall feature side vents, one-pair adjustable mounting rails tapped 10-32, four knockouts for antennas (top and bottom), and integral rails on EIA spacing (top and bottom). The mounting section shall attach to the backbox on the inside with two heavy-duty, spring-loaded L-pins (self-seating, positive-locking), which can be attached on either side to alter swing orientation. The backbox shall be 5.80″D with keyhole mounting slots on 16″ centers, a 10″x 10″ rear opening, embossed dimples and lacing points on the back plane, knockout panels with combination knockouts (1/2″–3/4″, and 1″–1-1/2″), and two keyed side locks. The rack shall be manufactured in the USA using USA-certified steel and have a black-textured powder-coat finish. It shall be Trade Agreement Act (TAA) compliant, and Buy American Act (BAA) compliant.
