- 14-gauge steel top/base (center opening varies according to depth selected)
- Front vents, cutouts with covers for optional low voltage decora-style devices
- Rear vents and holes for cable/wire management
- Top knockouts for wireless antennas and conduit
- Obround opening in base
- 11-gauge steel corner post rails tapped 10-32
- Load capacity 400 lbs.
- Smooth-black powder-coat finish
- Ships unassembled (top/base are factory assembled except for depth setting)
- Rack Space: 8U
- Height: 17.84 in.
- Width: 19.21 in.
- Depth: 21.00–28.00 in. (adjustable)
- TAA compliant
- BAA compliant
- EIA/TIA compliant
- USA-certified steel
- Made in USA

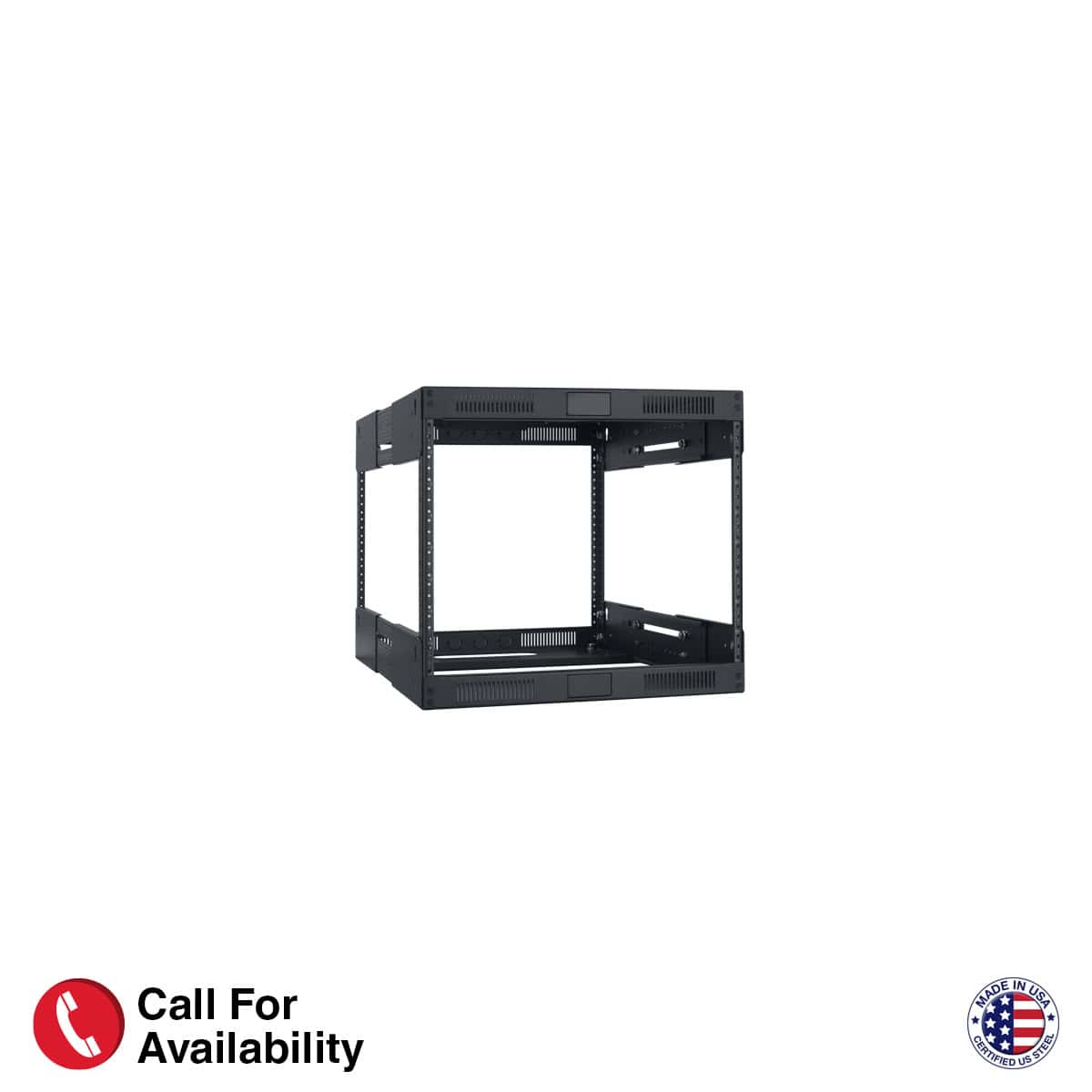

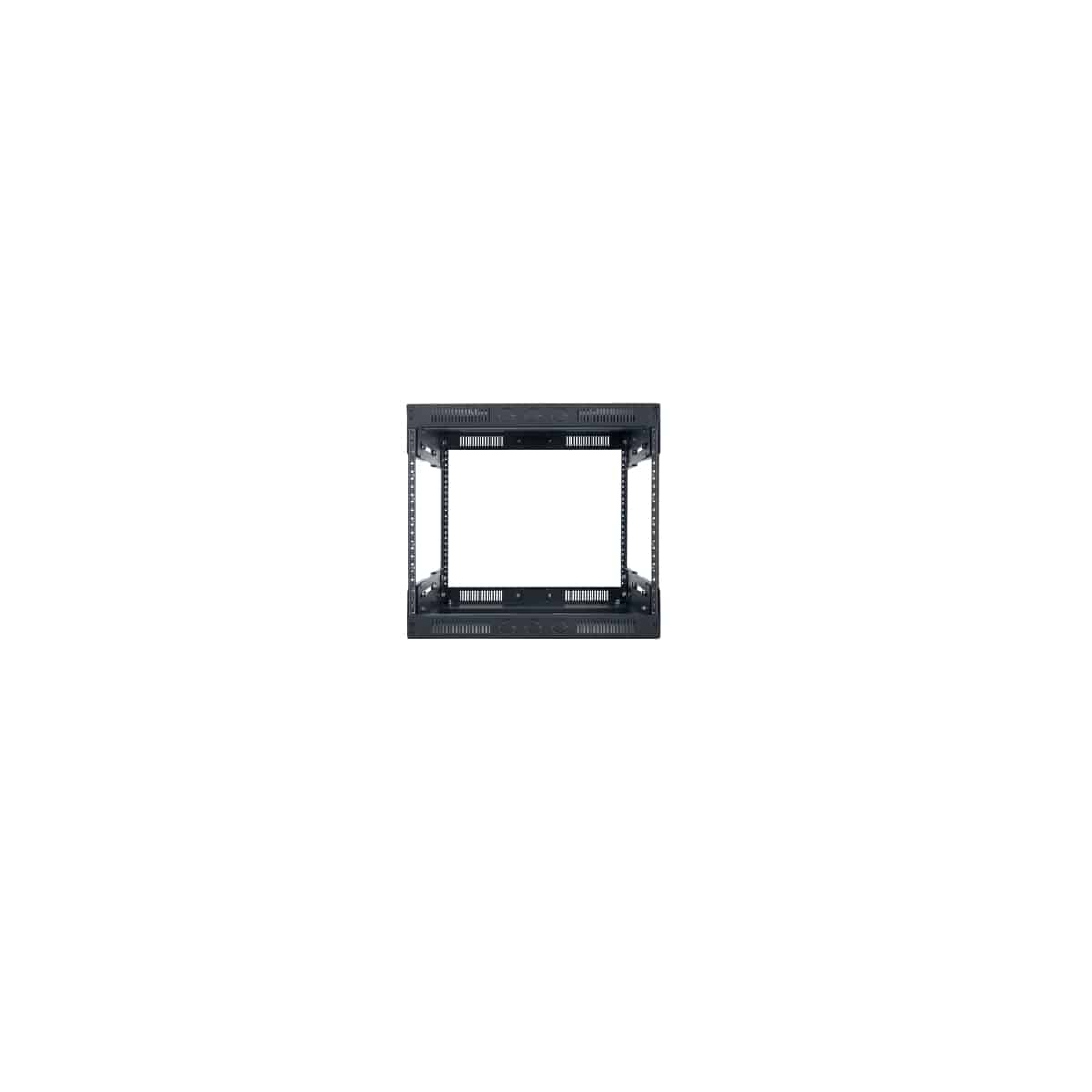

The rack shall be Lowell Model LVR8-2128, which shall provide 8 rack units of panel space and measure 19.21″W x 17.84″H and have a depth that can be set anywhere between 21″ to 28″ during assembly. Base and top components shall ship pre-assembled except for the depth selection. Corner-post mounting rails shall be 11-gauge steel tapped 10-32 with a printed rack unit scale. The rack shall be manufactured in the USA using USA-certified steel and have a smooth-black powder-coat finish. It shall be Trade Agreement Act (TAA) compliant and Buy American Act (BAA) compliant.
Note that some accessories require a specific depth setting.
