- 14-gauge steel top/base (center opening varies according to depth selected)
- Front vents, cutouts with covers for optional low voltage devices
- Rear vents and holes for cable/wire management
- Top knockouts for wireless antennas and conduit
- Obround opening in base
- 11-gauge steel corner post rails tapped 10-32
- Side support brackets for torsional rigidity
- Load capacity 400 lbs.
- Smooth black powder epoxy finish
- Ships unassembled (top/base are factory assembled except for depth setting)
- Rack Space: 44U
- Height: 80.84 in.
- Width: 19.21 in.
- Depth (adjustable): 14.00–21.00 in. (17.50–21.00 in. with side support brackets)

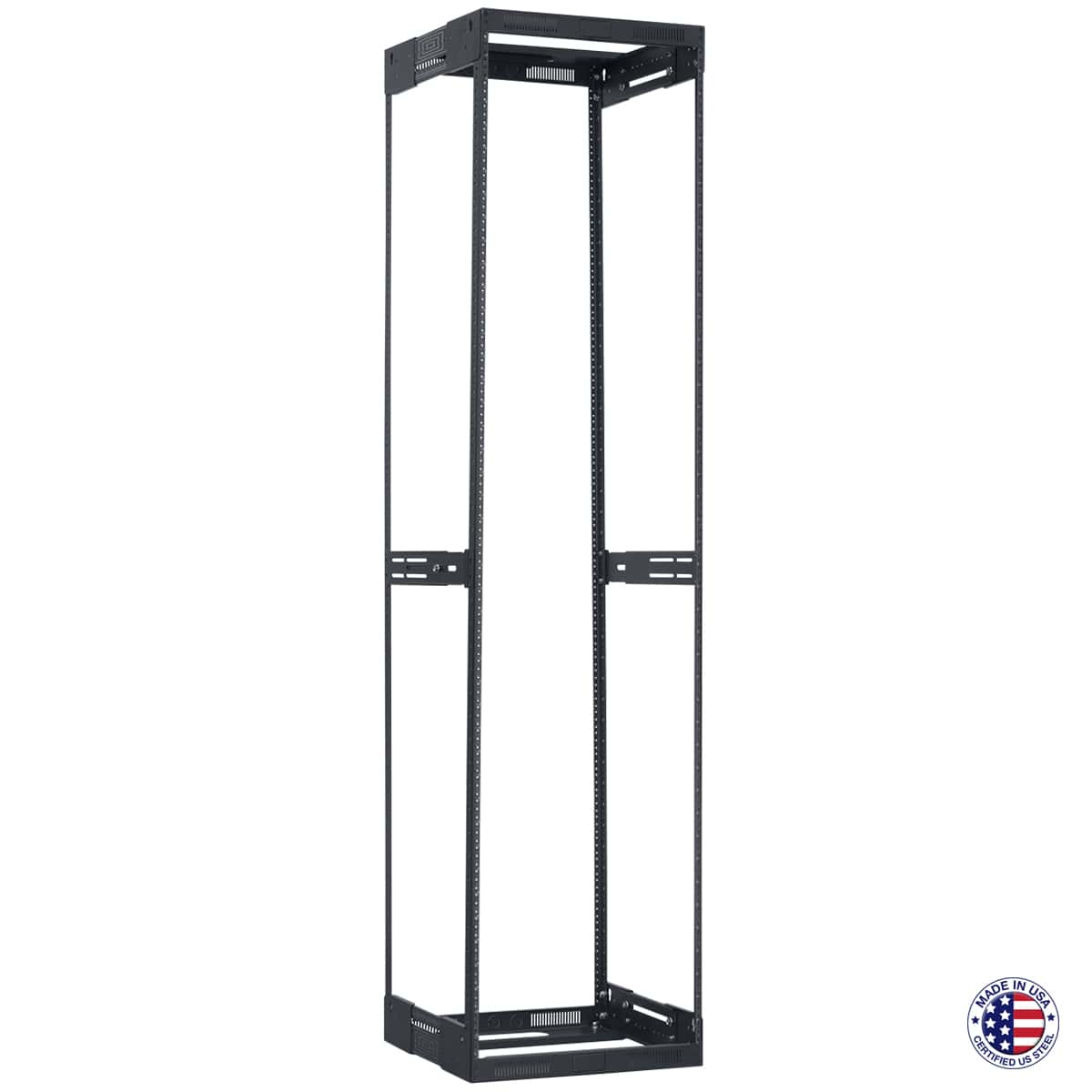

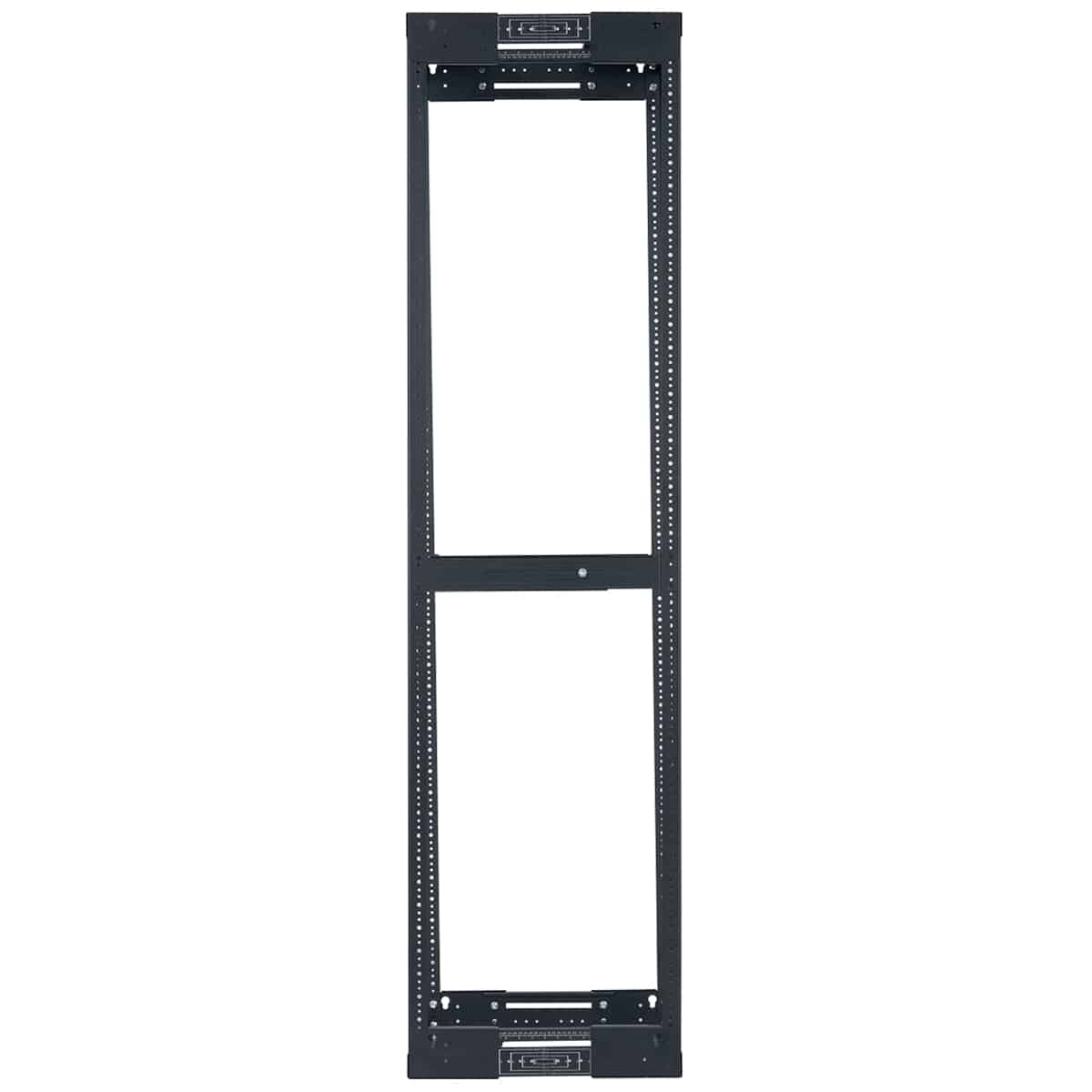

The rack shall be Lowell Model LVR44-1421, which shall provide 30 rack units of panel space and measure 19.21″W by 80.84″H and have a depth that can be set anywhere between 14″ to 21″ during assembly (17.5″ to 21″ with side support brackets). Base and top components shall ship pre-assembled except for the depth selection. Corner post mounting rails shall be 11-gauge steel tapped 10-32 with a printed rack unit scale. The rack shall have a smooth black powder epoxy finish.
Note that some accessories require a specific depth setting.
