LVR22-2128: slim-frame variable depth rack

LVR22-2128 - DISCONTINUED

Name: LVR22-2128 - DISCONTINUED
SKU: LVR22-2128
Availability: InStock

SEE ALTERNATIVES: LXR-2221 | LXR-2226

$888.00 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: LXR-2221 (21" FIXED DPETH)
Recommended Alternative: LXR-2226 (26" FIXED DPETH)

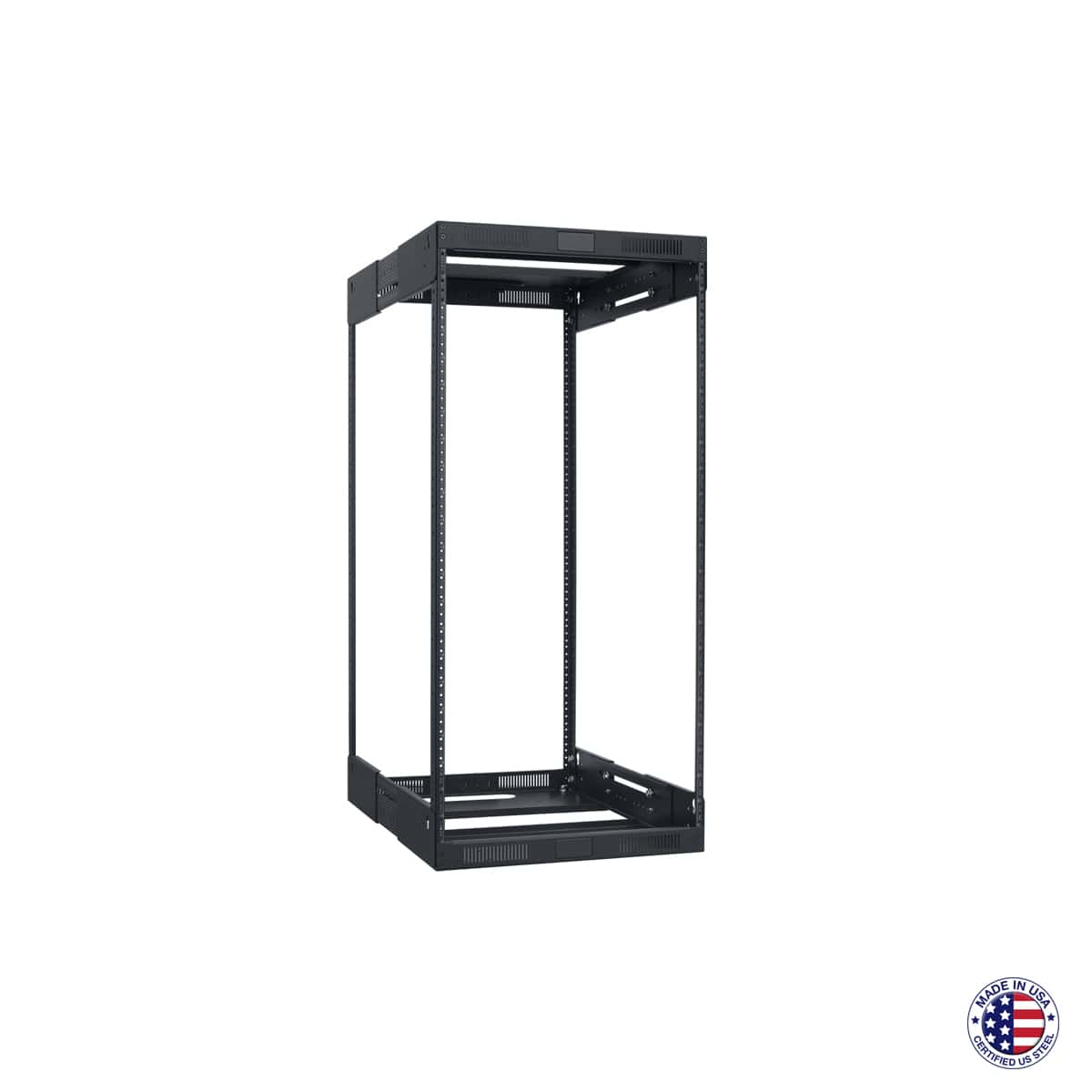

The adjustable VARI-RACK is a slim, open frame AV rack made to accommodate changes needed in the field. The depth can be adjusted between 21 and 28 inches, and the corner post rails have cut-marks to help if height needs trimming. The VARI-RACK is ideal for use in cabinets, closets or credenzas. Ships unassembled in two cartons (top and base are factory-assembled except for depth).

Product Video

Add to Favorites

Compare

14-gauge steel top/base (center opening varies according to depth selected)
Front vents, cutouts with covers for optional low voltage devices
Rear vents and holes for cable/wire management
Top knockouts for wireless antennas and conduit
Obround opening in base
11-gauge steel corner post rails tapped 10-32
Smooth black powder epoxy finish
Ships unassembled (top/base are factory assembled except for depth setting)

Rack Space: 22U
Height: 42.34 in.
Width: 19.21 in.
Depth: 21.00–28.00 in. (adjustable)
Load capacity 400 lbs.

Spec Sheet: 1512-LVR222128
CAD drawings: LVR-22-2128
Assembly: 16117-LVR
Assembly Video: Click here

The rack shall be Lowell Model LVR22-2128, which shall provide 22 rack units of panel space and measure 19.21″W by 42.34″H and have a depth that can be set anywhere between 21″ to 28″ during assembly. Base and top components shall ship pre-assembled except for the depth selection. Corner post mounting rails shall be 11-gauge steel tapped 10-32 with a printed rack unit scale. The rack shall have a smooth black powder epoxy finish.

Note that some accessories require a specific depth setting.

LXR-FD22: Solid steel front door
LXR-FD22P: Smoked plexiglass front door
LXR-RAC22: Rear access cover. Solid.
SDV-2221 or SDV-2226: Pair of steel side panels (for 21″ or 26″ rack depth only)
LXR-MB21 or LXR-MB26: Mobile base (for 21″ or 26″ rack depth only)
LXR-MB21F or LXR-MB26F: Mobile base with fine-floor casters (for 21″ or 26″ rack depth only)
LXR-C3S: Set of 4 swivel casters
LXR-C3SL: Set of 4 swivel casters (2 locking)
LXR-C3SF: Set of 4 swivel casters for fine floors
LXR-C3SFL: Set of 4 swivel casters for fine floors (2 locking)
PRK: Protective runner kit (for slide-in applications)
LXR-NS21 or LXR-NS26: Zero space shelf (for wide equipment) (for 21″ or 26″ rack depth only)
LXR-SB21 or LXR-SB26: Pair of side support rails (for 21″ or 26″ rack depth only)
Power Strips: Hardwired | Cord (Attached), | Cord (Detachable)
19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
