LGTR-5436 - DISCONTINUED

Name: LGTR-5436 - DISCONTINUED
SKU: LGTR-5436
Availability: InStock

SEE ALTERNATIVE: LGTR-5432

$5,274.00 MSRP

DISCONTINUED | Out of Stock
Recommended Alternative: LGTR-5432

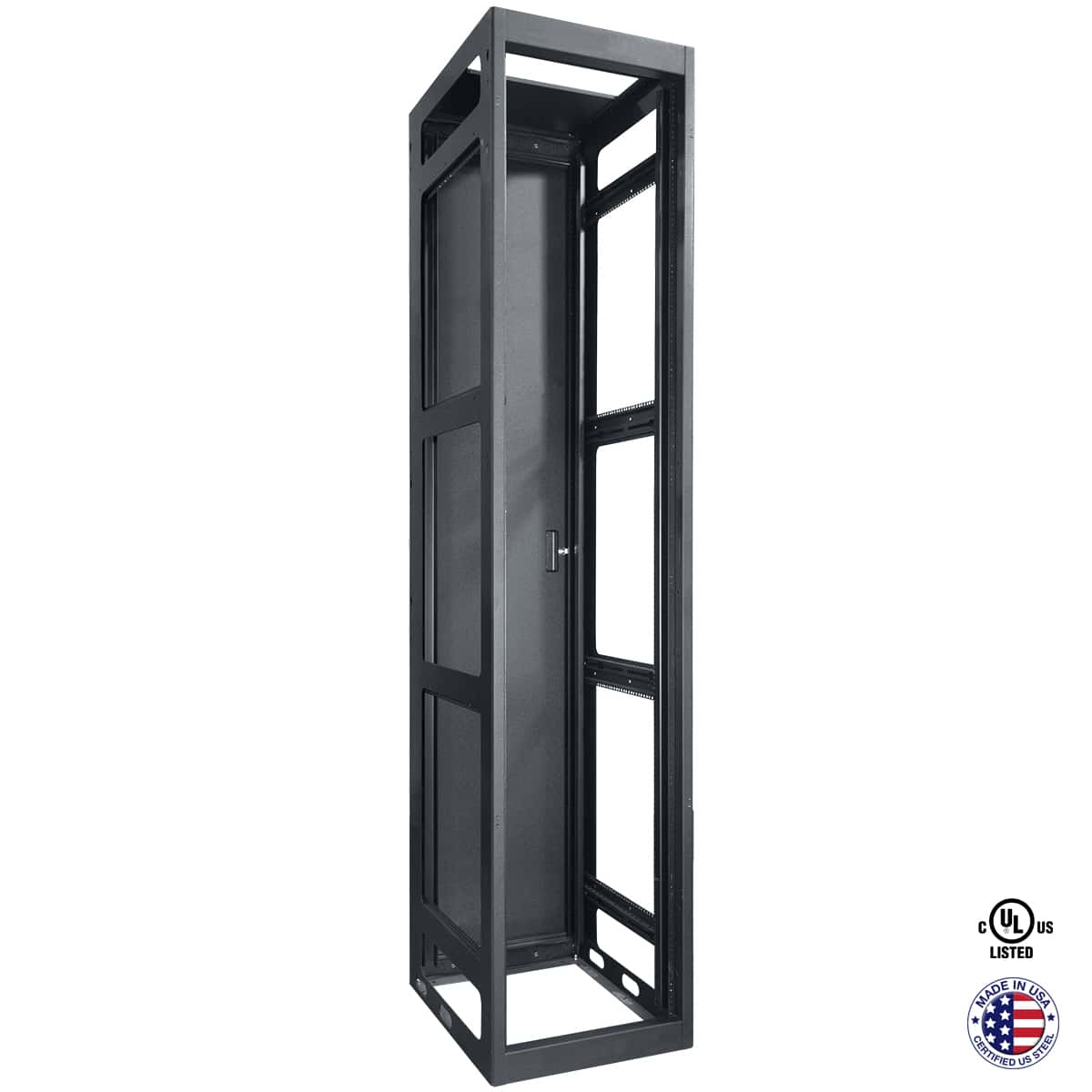

The LGTR rack takes advantage of high ceilings by mounting more equipment in vertical space. The 54U open frame gangable rack is fully welded 16-gauge steel with 14-gauge base, reinforced at all load-bearing junctions. Made with certified U.S. steel for strength and durability, the rack features adjustable rails, and rear door. An optional front door is also available (order separately).

Add to Favorites

Compare

Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
Open sides and front (optional door)
Recessed rear door
Two-pair fully adjustable rails tapped 10-32 with printed RU scale
Cable Management: multiple lacing points, holes, knockout panels
Pilot Point screws with captive washers
Grounding stud
Threaded inserts (for optional leg levelers)
Beveled corners
Black wrinkle textured powder epoxy finish

Rack Space: 54U
Height: 100.625 in.
Width: 22.00 in.
Depth: 36.00 in. (33.34 usable)
Load Capacity: 3150 lbs.

Spec Sheet: 1238-LGTR5436
CAD drawings: LGTR-5436
Revit Models: LGTR Series
Install: 20055-FloorRack

The EIA/TIA compliant, UL Listed gangable equipment rack shall be Lowell Model No. LGTR-5436, which shall measure 22″W x 36″D x 100.62″H (33.34″ useable depth x 54U useable height). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and bottom reinforced at load-bearing junctions and have a black wrinkle textured powder epoxy finish. The rack shall include a solid steel, recessed rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring plus BNC knockouts for UHF/VHF antennas. Top shall feature integral rails with mounting holes tapped 10-32 ready to accept blank panels included as shipping stiffeners or optional 19″W accessories. The base shall feature a grounding stud and provisions to add optional leg levelers.

Thermal management
Cable management
Front door: LFD-54 (solid)
Rear door: LRND-54 (full vent)
Side panels: SDP-5436
Rack rails: RRNT-54
Power Strips: Hardwired | Cord (Attached), | Cord (Detachable)
19” Power Panels: Hardwired | Cord (Attached) | Cord (Detachable)
